Receptor Binding Affinities of Synthetic Cannabinoids Determined by Non-Isotopic Receptor Binding Assay
Pharmacological Research Division, Toxicological Evaluation and Research Department, National Institute of Food and Drug Safety Evaluation, Ministry of Food and Drug Safety, Chungju, Korea
Department of Pharmacology, School of Pharmacy, Sungkyunkwan University, Suwon, Korea
Cosmetics Policy Division, Ministry of Food and Drug Safety, Chungju, Korea
Neuroimmunology Lab, College of Pharmacy, Wonkwang University, Iksan, Korea
Abstract
A major predictor of the efficacy of natural or synthetic cannabinoids is their binding affinity to the cannabinoid type I receptor (CB1) in the central nervous system, as the main psychological effects of cannabinoids are achieved via binding to this receptor. Conventionally, receptor binding assays have been performed using isotopes, which are inconvenient owing to the effects of radioactivity. In the present study, the binding affinities of five cannabinoids for purified CB1 were measured using a surface plasmon resonance (SPR) technique as a putative non-isotopic receptor binding assay. Results were compared with those of a radio-isotope-labeled receptor binding assay. The representative natural cannabinoid Δ9-tetrahydrocannabinol and four synthetic cannabinoids, JWH-015, JWH-210, RCS-4, and JWH-250, were assessed using both the SPR biosensor assay and the conventional isotopic receptor binding assay. The binding affinities of the test substances to CB1 were determined to be (from highest to lowest) 9.52 × 10−13 M (JWH-210), 6.54 × 10−12 M (JWH-250), 1.56 × 10−11 M (Δ9-tetrahydrocannabinol), 2.75 × 10−11 M (RCS-4), and 6.80 ×10−11 M (JWH-015) using the non-isotopic method. Using the conventional isotopic receptor binding assay, the same order of affinities was observed. In conclusion, our results support the use of kinetic analysis via SPR in place of the isotopic receptor binding assay. To replace the receptor binding affinity assay with SPR techniques in routine assays, further studies for method validation will be needed in the future.
Untitled section
Keywords: Δ9-THC, Human cannabinoid type I receptor (CB1), Receptor binding assay, Surface plasmon resonance, Synthetic cannabinoids
Article notes
Untitled section
Received 2018 May 23; Revised 2018 Aug 7; Accepted 2018 Aug 21; Issue date 2019 Jan.
INTRODUCTION
Synthetic cannabinoids are commonly used worldwide because they induce a euphoric effect similar to that of Δ9-tetrahydrocannabinol (Δ9-THC), the psychoactive constituent of Cannabis sativa (1–3). Effects of synthetic cannabinoids on the central nervous system include euphoria, talkativeness, and altered visual and acoustical perception (4). There are two main reasons for the synthesis of synthetic cannabinoids: one is their potential for therapeutic use, such as in oncology (5) and emotion/behavior modulation (6); the other stems from their psychotropic effects for recreation (7). However, noticeable adverse effects of synthetic cannabinoids have been reported as well (1,8–12). Since new synthetic cannabinoids are emerging rapidly, it is virtually impossible to control these substances legally within appropriate time intervals using scientific evidence.
The main receptor responsible for the psychoactivity of synthetic cannabinoids, the cannabinoid type I receptor (CB1), is relatively well-specified, and binding affinity to the receptor is a key factor in the relative psychoactivities of these compounds. Considering this, there have been several attempts to set up a rapid evaluation system, such as a quantitative structure-activity relationship model, in order to predict the psychoactivities of the synthetic cannabinoids, based on their binding constant values (4).
Generally, receptor binding affinities have been evaluated using conventional radio-isotope receptor binding assays. There are two typical assay formats used for the analysis of receptor-ligand interactions in screening applications: filtration and scintillation proximity assays (13,14). The filtration method is not appropriate for radioligands with rapid dissociation rates (15), while the scintillation proximity assay is expensive and requires specific licenses for working with radioactive substances. In order to determine receptor binding affinities without using radioactive substances, several other methods have been employed in previous reports, such as fluorescence polarization (16) and time-resolved fluorescence (17).
Surface plasmon resonance (SPR) allows for the real-time monitoring of association and dissociation events between a binding partner that is immobilized on a sensor surface and one that is injected over the surface (18,19). This technique is widely used to investigate many surface characteristics, such as ligand-receptor binding affinities and antigen-antibody interactions. Based on this, the SPR technique was used in the present study to investigate its utility in determining the receptor binding affinities of natural and synthetic cannabinoids (Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4).
MATERIALS AND METHODS
Substances

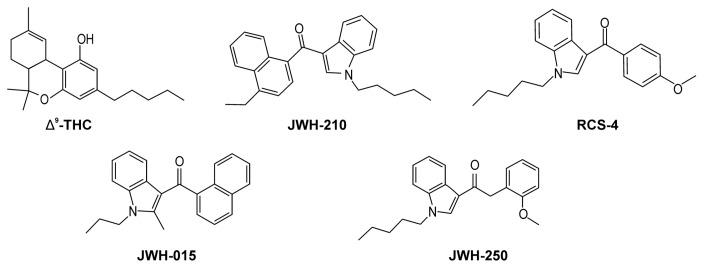

Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4 chemical structures are shown in Fig. 1. All cannabinoids were purchased from Cayman Chemical (Ann Arbor, MI, USA), and [3H]SR141716A was purchased from PerkinElmer (Waltham, MA, USA) for the receptor binding affinity assay. For vector construction and yeast transformation, the commercially synthesized CB1 gene and the pPICZαC vector, suitable for gene expression in yeast cells, were purchased from Bioneer Corporation (Daejeon, Korea). Restriction enzymes (EcoRI and XbaI) were purchased from New England BioLabs, Inc. (Ipswich, MA, USA), and ligase (T4) was obtained from Promega Corporation (Madison, WI, USA). Competent cells from Escherichia coli strain DH5α and Pichia pastoris strain X-33 were purchased from Invitrogen (Carlsbad, CA, USA). In order to confirm the transformation results, Anti-His(C-terminal)-HRP antibody (Invitrogen) and Anti-FLAG(N-terminal) M2 antibody (Sigma-Aldrich, St. Louis, MO, USA) were used.
Vector construction and transformation
The commercially synthesized CB1 gene was amplified by PCR. The primer sequences were 5′-GAATTCGATTACAAGGATGACGACCA-3′ (forward) and 5′-TCTAGACAGAGCCTCGGCAGACG-3′ (reverse). The amplified CB1 gene fragment was inserted into the pPICZαC vector with a FLAG tag at its N-terminal and His tag at its C-terminal sites, using the restriction enzymes EcoRI and XbaI and T4 ligase. Recombinant plasmids were transformed into E. coli DH5α cells by heat shock (42°C, 90 sec), and cells were cultivated in zeocin-treated media at 37°C to select transformed colonies. Transformants were collected, and the inserted CB1 gene sequence was identified by a qualified sequencing agency (Bioneer Corporation).
The pPICZαC-CB1 construct was linearized by restriction digestion at the SacI site to transform competent cells from the P. pastoris X-33 strain with the CB1 gene. Transformation into the competent yeast cells was performed by heat shock (42°C, 10 min). Transformed cells were incubated in zeocin-supplemented yeast peptone dextrose medium for 3 days at 28°C. Then, transformants with the Mut+ phenotype were selected in medium provided by the manufacturer (Invitrogen), and the size of the insert was verified by PCR amplification. Transformants harboring the CB1 gene were cultivated in buffered glycerol complex medium with different methanol contents (0.5% or 1%) for various lengths of time (0–72 h) to determine the optimal conditions for CB1 protein induction. Protein expression levels were assessed and confirmed from the supernatant before purification using western blot with anti-FLAG (primary) and anti-mouse (secondary) antibodies.
Expressed protein was extracted from the yeast cells and purified by affinity chromatography using metal-chelated affinity and gel filtration chromatography (Superdex 16/60 S-200, GE Healthcare, Buckinghamshire, UK). The purified protein was identified using western blot in the same procedure with the same antibodies mentioned above, and the concentrated protein was stored at −80°C.
Receptor binding assay using SPR
A Biacore 3000 (GE Healthcare) was used to measure the binding affinities of synthetic cannabinoids and Δ9-THC to the recombinant CB1. Before measuring the binding affinities of the test substances, the equipment was validated using the Biacore 3000 Getting Started Kit, provided by the manufacturer. The SPR experiment was conducted in three steps: immobilization, interaction analysis, and regeneration. For immobilization, the synthesized CB1 protein was bound to the biosensor chip, CM5 (with carboxymethylated dextran attached to the gold surface), by amine coupling (30 μg/mL concentration at 10 μL/min flow rate) under various pH conditions (pH 4.0, 4.5, 5.0, and 5.5), in order to determine the optimal immobilization conditions. The injection time was 7 min. Excess receptor was washed out with 1M ethanolamine-HCl (pH 8.5). For interaction analysis, test substances (Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4) were dissolved in 100% ethanol and then diluted to 50 μM with running buffer (1 × PBS: ethanol: Tween 80 = 19: 0.5: 0.5). Diluted test substances flowed into the biosensor chip at a flow rate of 50 μL/min for more than 5 min, to bind to the immobilized CB1 [final amount: 2,000 response units (RU)]. For regeneration, after determining the responses, the biosensor chip was regenerated with 50 μL/mL running buffer for 10 min.
The experiment was repeated at least three times, and association constants were automatically calculated from the specific binding values using BIAevaluation software (GE Healthcare) with the following formula: Ka = IC50/[1 + ([L]/Kd)], where IC50 is the half-maximal inhibitory concentration, [L] is the concentration of the ligands, and Kd is the equilibrium dissociation constant. The data were analyzed using Sigmaplot (Systat Software Inc., CA, USA).
Receptor binding assay using radioactive isotopes
Chemiscreen recombinant human CB1 membrane preparation (EMD Millipore Corp., Milford, MA, USA) was purchased and stored at −70°C until use. A saturation binding assay was conducted with CP-55940, an agonist, and radioactive [3H]SR141716A, an antagonist, based on a previous report (20). Briefly, binding buffer [50 mM HEPES (pH 7.4), 5 mM MgCl2, 1 mM CaCl2, and 0.2% BSA] and washing buffer [50 mM HEPES (pH 7.4), 500 mM NaCl, and 0.1% BSA] were prepared and stored at 4°C until use. The binding buffer, DMSO (15%), and radioactive ligand (10%) were mixed and incubated at 30°C for 1 hr for the membrane binding reaction. After washing, the counts per minute (cpm) of each binding group were determined using a beta-scintillation counter. The receptor density (Bmax) and radioligand equilibrium dissociation constant (Kd) values were calculated from the specific binding cpm values using GraphPad Prism 5 software (GraphPad Software, La Jolla, CA, USA).
The competition receptor binding assay was performed using a protocol similar to that of the saturation binding assay described above. The amount of specifically bound radiolabeled compound, in the absence of competing compounds, was calculated by subtracting non-specific binding from total binding: specific binding = minimum specific binding + [(maximum specific binding + minimum specific binding)/(1 + 10log x − log (IC50)) where x is the concentration of the tested synthetic cannabinoid]. The percentage of specific binding was calculated for the amount of radiolabeled compound bound in the presence of various concentrations of each competing compound. The data were analyzed with GraphPad Prism software, and the IC50 and inhibition constant (Ki) values were calculated.
RESULTS
CB1 protein expression and purification

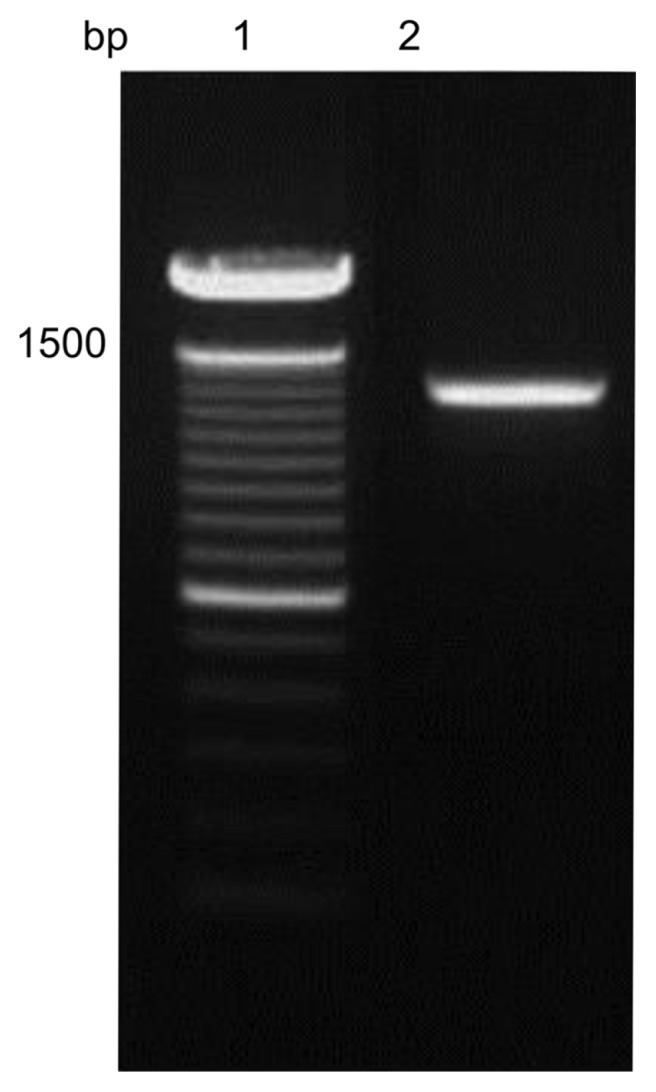

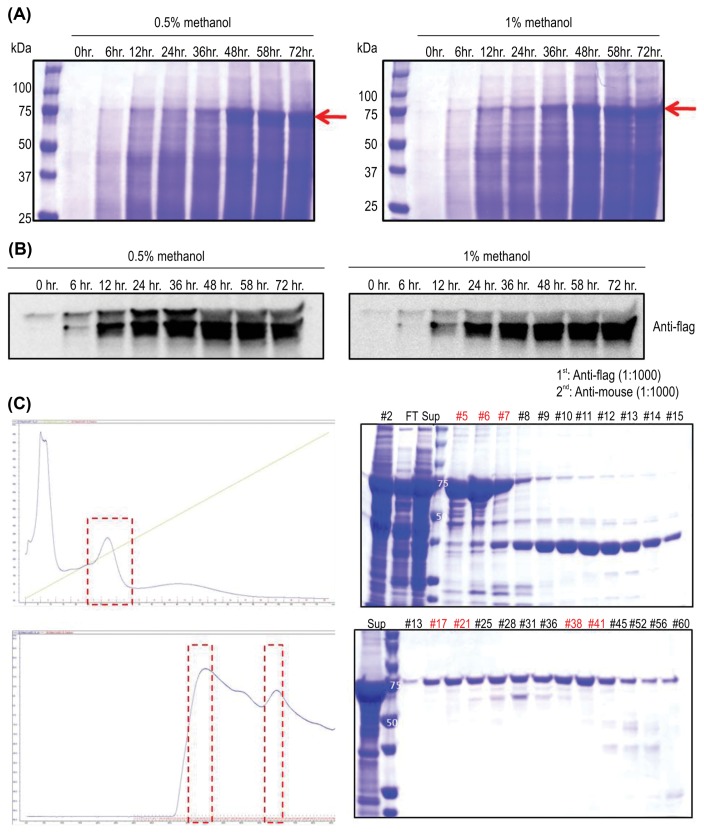

Recombinant CB1 protein was used to measure the binding affinities of Δ9-THC and four synthetic cannabinoids. A commercially synthesized CB1 gene was inserted into the pPICZαC vector and used to transform E. coli DH5α cells. Transformants with zeocin resistance were selected, and inserted genes were sequenced in order to verify the CB1 gene insertion in the pPICZαC vector. The CB1 sequence was determined by a professional company and was verified using the NCBI Blast database (Fig. 2). The cloned gene was then used to transform yeast cells (P. pastoris X-33) for expression of CB1 protein. The CB1 gene in the yeast transformants was confirmed to be 1,416 bp using PCR in order to verify the correct insertion of the target gene into the yeast competent cells. Based on Coomassie blue staining and western blot of CB1 protein, the protein was expressed beginning at 12 hr, with maximal expression after 48, 58, and 72 hr of cultivation with 1% methanol (Fig. 3A, 3B). After the purification process (chromatography with Ni-chelated affinity column and gel filtration), 5.6 mg of CB1 protein was obtained (Fig. 3C).
Receptor binding assay using SPR

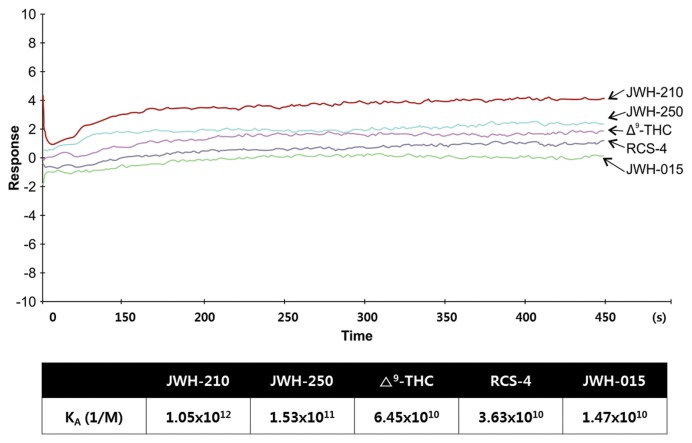

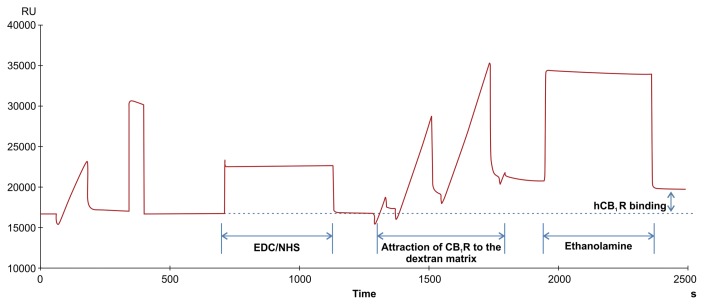

The optimal pH for immobilizing the synthesized CB1 protein was 5.0. As shown in Fig. 4, the CB1 protein was bound to the biosensor chip at 2,000 RU. The Ka values of Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4 were 6.45 × 1010M−1, 1.05 × 1012M−1, 1.53 × 1011M−1, 1.47 × 1010M−1, and 3.63 × 1010 M−1, respectively. The sensorgram for the test substances is depicted in Fig. 5. The highest receptor binding affinity was exhibited by JWH-210, followed by JWH-250, Δ9-THC, RCS-4, and lastly JWH-015.
Receptor binding assay with radioactive isotopes

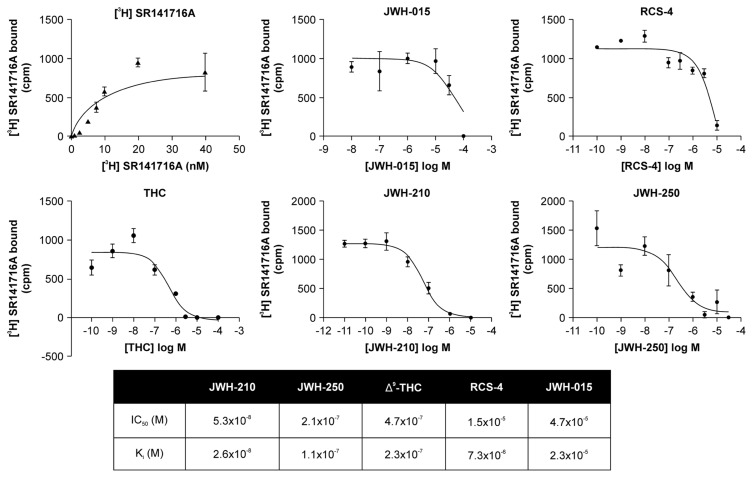

The CB1 binding affinity of Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4 was measured by saturation binding and competitive binding assays using over-expressed protein membranes. In the saturation binding assay with [3H]SR141716A, the Bmax was 953 cpm and the Kd value was 8.768 nM. The IC50 values and Ki values of the test substances were calculated using the results of the competitive binding assay and the Bmax and Kd values. The IC50 values of Δ9-THC, JWH-210, JWH-250, JWH-015, and RCS-4 were 4.7 × 10−7 M, 5.8 × 10−8 M, 2.1 × 10−7 M, 4.7 × 10−5 M, and 1.5 × 10−5 M, respectively, and the Ki values were 2.3 × 10−7M, 2.6 × 10−8 M, 1.1 × 10−7 M, 2.3 × 10−5 M, and 7.3 × 10−6 M, respectively. The highest binding affinity to CB1 of the test substances was exhibited by JWH-210, followed by JWH-250, Δ9-THC, RCS-4, and finally JWH-015. The order of the CB1 binding affinities of the test substances was therefore the same as that determined using the non-isotopic receptor binding assay. The saturation and competitive binding curves are shown in Fig. 6.
DISCUSSION
Synthetic cannabinoids have caused social issues in Korea since 2010 because of their marijuana-like effects, such as euphoria (20). As the Ministry of Food and Drug Safety is charged with designating controlled substance status to new psychoactive substances, it is necessary to evaluate the dependence liabilities of synthetic cannabinoids in order to regulate the substances as either “psychoactive drugs” or “temporary psychoactive substances”, based on the “Act on the Control of Narcotics.”
In the present study, an in vitro receptor binding assay was performed using SPR and compared to the isotopic receptor binding assay, in order to establish a reliable and safe evaluation system to predict the psychoactivities of synthetic cannabinoids. There have been several previous attempts to create an in silico prediction model of synthetic cannabinoids (4,21,22). In order to establish an in silico prediction model, the collection of in vivo or in vitro data, such as the 50% maximal effective dose (ED50) or pharmacodynamical values (Ka, Kd, Ki), is essential. However, since in vivo experiments are time-, labor-, and costintensive compared to in vitro assays, it would be more efficient to set up an in vitro assay system to obtain the relevant data for an in silico prediction model.
In vitro receptor binding assays can be tools for dependence prediction of emerging substances, especially when the target receptors are well defined. In our previous study, the receptor binding affinity and the in vivo dependence potential were revealed to be correlated with each other (20). As an in vitro method, receptor binding assays have conventionally been performed using radioisotopes (13,14), which offer many disadvantages in terms of the handling of radioactive substances. Since the SPR technique does not need radioactive ligands, it would be beneficial for user safety. In this regard, the SPR technique was employed to measure the receptor binding affinities of synthetic cannabinoids, in order to create a non-isotopic method for dependence potential prediction. The SPR technique uses biosensors, an analytical system that combines biological recognition and transduction into an electrical signal. Biosensor-based methods are powerful approaches for the monitoring of molecular binding activity (18,19). Through the SPR technique, it is possible to detect binding affinities in real time.
Transmembrane proteins are generally known to be difficult to express and purify. Since most receptors for chemicals, including CB1, are transmembrane proteins, the availability of receptors is highly limited. To overcome this limitation, CB1 protein was expressed and purified using E. coli and P. pastoris, respectively, in order to develop a receptor protein expression and purification system. Traditionally, E. coli has been commonly used for the replication of various genes owing to its advantageous characteristics in terms of practicality and economic feasibility. However, it is not appropriate for post-translational expression of proteins because it lacks many endoplasmic organelles essential for substantive protein expression. In this regard, a methylotrophic yeast strain, P. pastoris, has been used in several reports (23,24). According to these reports, a methylotrophic yeast strain is useful for cloning eukaryotic genes, as yeast is a eukaryote possessing an endoplasmic system for post-translational modifications. Expression of CB1 using both E. coli and P. pastoris was introduced in a previous report that demonstrated the efficiency of using a FLAG tag at the N-terminus and c-Myc and hexahistidine tags at the C-terminus (25). However, the authors could not demonstrate ligand binding with the purified CB1 in their study. This was suggested to be due to the environmental sensitivity of CB1. Considering this suggestion, in the present study, CB1 was purified using a nickel-charged column and gel filtration and was confirmed to be successfully bound to the biosensor chip of the SPR. This is the first study to report cloned CB1 with the ability to act as a ligand-binding receptor.
In order to validate the established non-isotopic receptor binding assay method for rapid dependence prediction in the present study, the data on synthetic cannabinoids from the SPR receptor binding assay were compared to those from the conventional isotopic filtration receptor binding assay. The results from the non-isotopic and conventional isotopic methods were in accordance to each other, namely that the highest binding affinity was exhibited by JWH-210, followed by JWH-250, Δ9-THC, RCS-4, and JWH-015.
There have been several reports on the relationship between in vivo psychoactivity and cannabinoid receptor binding affinity (26–28). With the exception of the study by Presley et al. (26), these studies used radio-ligands for measuring receptor binding affinities. Wiley et al. (28) compared the in vivo THC-like effects of three synthetic cannabinoids with their in vitro CB1 binding affinities, using the filtration method and agonist-stimulated [35S]GTPγS binding affinities, indicating the close association of the in vitro binding affinities with behavioral activities. Smoum et al. (27) also suggested the availability of receptor binding affinities of synthetic cannabinoids with the biological potencies of cannabinoid receptor agonists. Presley et al. (26) applied the ACTOne assay, which had been used for G-protein coupled receptor pharmacology, in order to establish a new pharmacological evaluation system using CB1 signaling in endocannabinoids and synthetic cannabinoids. They compared the ACTOne assay with several conventional receptor binding assays, such as the [35S]GTPγS, β-arrestin, and cAMP assays, and recommended the ACTOne assay as a high-throughput evaluation method. This suggested system has not been sufficiently validated yet, but it provides useful information. In addition, a previous in vivo behavioral pharmacological study showed that the rewarding effect of JWH-210 was higher than that of Δ9-THC (29). The binding affinity of the present study is in line with this result, suggesting the in vitro SPR assay would be useful to predict the psychoactivity of unknown substances.
A limitation of our study is the relatively small number of tested synthetic cannabinoids. Prior to applying the established non-isotopic receptor binding assay, data on more synthetic cannabinoids from further studies is needed to enhance its predictivity and accuracy. As attempts are also being made to synthesize new recreational substances, additional studies are also needed to establish the use of this method in evaluating other groups of new psychoactive substances, such as synthetic cathinones and amphetamine-type stimulators. Taken together, our findings indicate that the established non-isotopic receptor binding assay involving the SPR method has the potential to be useful for the prediction of dependence liabilities of synthetic cannabinoids in the future.
ACKNOWLEDGMENTS
This work was supported by the National Institution of Food and Drug Safety Evaluation/Ministry of Food and Drug Safety (14181MFDS503).
Footnotes
Footnote Group
REFERENCES
Untitled section
References
- 1.Karila L, Benyaminia A, Blecha L, Cottencin O, Billieux J. The synthetic cannabinoids phenomenon. Curr Pharm Des. 2016;22:6420–6425. doi: 10.2174/1381612822666160919093450.
- 2.Scocard A, Benyamina A, Coscas S, Karila L. Synthetic cannabinoids: A new addiction matrix. Pres Méd. 2017;46:11–22. doi: 10.1016/j.lpm.2016.11.014.
- 3.Tournebize J, Gibaja V, Kahn JP. Acute effects of synthetic cannabinoids: update 2015. Subst Abuse. 2016;11:1–23. doi: 10.1080/08897077.2016.1219438.
- 4.Paulke A, Proschak E, Sommer K, Achenbach J, Wunder C, Toennes SW. Synthetic cannabinoids: In silico prediction of the cannabinoid receptor 1 affinity by a quantitative structure-activity relationship model. Toxicol Lett. 2016;245:1–6. doi: 10.1016/j.toxlet.2016.01.001.
- 5.Maida V, Daeninck PJ. A user’s guide to cannabinoid therapies in oncology. Curr Oncol. 2016;23:398–406. doi: 10.3747/co.23.3487.
- 6.Androvicova R, Horacek J, Stark T, Drago F, Micale V. Endocannabinoid system in sexual motivational processes: Is it a novel therapeutic horizon? Pharmacol Res. 2017;115:200–208. doi: 10.1016/j.phrs.2016.11.021.
- 7.Ford BM, Tai S, Fantegrossi WE, Prather PL. Synthetic pot: not your grandfather’s marijuana. Trend Pharmacol Sci. 2017;38:257–276. doi: 10.1016/j.tips.2016.12.003.
- 8.Cooper ZD. Adverse effects of synthetic cannabinoids: management of acute toxicity and withdrawal. Curr Psych Rep. 2016;18:52. doi: 10.1007/s11920-016-0694-1.
- 9.Fattore L. Synthetic cannabinoids - Further evidence supporting the relationship between cannabinoids and psychosis. Biol Psych. 2016;79:539–548. doi: 10.1016/j.biopsych.2016.02.001.
- 10.Gray R, Bressington D, Hughes E, Ivanecka A. A systematic review of the effects of novel psychoactive substances ‘legal highs’ on people with severe mental illness. J Psych Ment Health Nurs. 2016;23:267–281. doi: 10.1111/jpm.12297.
- 11.Springer YP, Gerona R, Scheunemann E, Shafer SL, Lin T, Banister SD, McLaughlin JB. Increase in adverse reactions associated with use of synthetic cannabinoids - Anchorage, Alaska, 2015–2016. MMWR Morb Mort Wkly Rep. 2016;65:1108–1111. doi: 10.15585/mmwr.mm6540a4.
- 12.White CM. The pharmacologic and clinical effects of illicit synthetic cannabinoids. J Clin Pharmacol. 2017;57:297–304. doi: 10.1002/jcph.827.
- 13.Diez-Alarcia R, Ibarra-Lecue I, Lopez-Cardona AP, Meana J, Gutierrez-Adan A, Callado LF, Uriguen L. Biased agonism of three different cannabinoid receptor agonists in mouse brain cortex. Front Pharmacol. 2016;7:415. doi: 10.3389/fphar.2016.00415.
- 14.McPartland JM, Glass M, Pertwee RG. Metaanalysis of cannabinoid ligand binding affinity and receptor distribution: interspecies differences. Br J Pharmacol. 2007;152:583–593. doi: 10.1038/sj.bjp.0707399.
- 15.Layer RT. Saturation analysis of ligand binding using a centrifugation procedure. Curr Protoc Neurosci. 2001;2:7.7.1–7.7.4. doi: 10.1002/0471142301.ns0707s02.
- 16.Rossi AM, Taylor CW. High-throughput fluorescence polarization assay of ligand binding to IP3 receptors. Cold Spring Harb Prot. 2013;2013:938–946. doi: 10.1101/pdb.prot073080.
- 17.Martinez-Pinilla E, Rabal O, Reyes-Resina I, Zamarbide M, Navarro G, Sanchez-Arias JA, Franco R. Two affinity sites of the cannabinoid subtype 2 receptor identified by a novel homogeneous binding assay. J Pharmacol Exp Ther. 2016;358:580–587. doi: 10.1124/jpet.116.234948.
- 18.Hoa XD, Kirk AG, Tabrizian M. Towards integrated and sensitive surface plasmon resonance biosensors: a review of recent progress. Biosens Bioelectron. 2007;23:151–160. doi: 10.1016/j.bios.2007.07.001.
- 19.Piliarik M, Vaisocherova H, Homola J. Surface plasmon resonance biosensing. Methods Mol Biol. 2009;503:65–88. doi: 10.1007/978-1-60327-567-5_5.
- 20.Cha HJ, Lee K, Song M, Hyeon Y, Hwang J, Jang C, Jeong H. Dependence potential of the synthetic cannabinoids JWH-073, JWH-081, and JWH-210: In vivo and in vitro approaches. Biomol Ther (Seoul) 2014;22:363–369. doi: 10.4062/biomolther.2014.039.
- 21.Mella-Raipan J, Hernandez-Pino S, Morales-Verdejo C, Pessoa-Mahana D. 3D-QSAR/CoMFA-based structure-affinity/selectivity relationships of aminoalkylindoles in the cannabinol CB1 and CB2 receptors. Molecules. 2014;19:2842–2861. doi: 10.3390/molecules19032842.
- 22.Myint KZ, Xie XQ. Ligand biological activity predictions using fingerprint-based artificial neural networks (FANN-QSAR) Methods Mol Biol. 2015;1260:149–164. doi: 10.1007/978-1-4939-2239-0_9.
- 23.Cereghino JL, Cregg JM. Heterologous protein expression in the methylotrophic yeast Pichia pastoris. FEMS Microbiol Rev. 2000;24:45–66. doi: 10.1111/j.1574-6976.2000.tb00532.x.
- 24.Reilander H, Weiss HM. Production of G-protein-coupled receptors in yeast. Curr Opin Biotechnol. 1998;9:510–517. doi: 10.1016/S0958-1669(98)80038-4.
- 25.Kim TK, Zhang R, Feng W, Cai J, Pierce W, Song ZH. Expression and characterization of human CB1 cannabinoid receptor in methylotrophic yeast Pichia pastoris. Protein Expr Purif. 2005;40:60–70. doi: 10.1016/j.pep.2004.10.026.
- 26.Presley CS, Abidi AH, Moore BM., 2nd Cannabinoid receptor 1 ligands revisited: Pharmacological assessment in the ACTOne system. Anal Biochem. 2016;498:8–28. doi: 10.1016/j.ab.2015.12.019.
- 27.Smoum R, Baraghithy S, Chourasia M, Breuer A, Mussai N, Nttar-Namdar M, Bab I. CB2 cannabinoid receptor agonist enantiomers HU-433 and HU-308: An inverse relationship between binding affinity and biological potency. Proc Natl Acad Sci USA. 2015;112:8774–8779. doi: 10.1073/pnas.1503395112.
- 28.Wiley JL, Marusich JA, Lefever TW, Antonazzo KR, Wallgren MT, Cortes RA, Thomas BF. ABCHMINACA, AB-PINACA, and FUBIMINA: Affinity and potency of novel synthetic cannabinoids in producing Δ9-tetrahydrocannabinol-like effects in mice. J Pharmacol Exp Ther. 2015;354:328–339. doi: 10.1124/jpet.115.225326.
- 29.Cha HJ, Lee K, Song M, Hyeon Y, Hwang J, Jang C, Ahn J, Jeon S, Kim H, Kim Y, Seong W, Kang H, Yoo HS, Jeong H. Dependence potential of the synthetic cannabinoids JWH-073, JWH-081, and JWH-210: in vivo and in vitro approaches. Biomol Ther (Seoul) 2014;22:363–369. doi: 10.4062/biomolther.2014.039.
- 30.Roche JP, Bounds S, Brown S, Mackie K. A mutation in the second transmembrane region of the CB1 receptor selectively disrupts G protein signaling and prevents receptor internalization. Mol Cell Pharmacol. 1999;56:611–618. doi: 10.1124/mol.56.3.611.
