Melanization of Candida auris is Associated with Alteration of Extracellular pH
1W. Harry Feinstone Department of Molecular Microbiology and Immunology, The Johns Hopkins Bloomberg School of Public Health, Baltimore, MD, USA
2Krieger School of Arts & Science, Johns Hopkins University, Baltimore, MD, USA
3Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, New York, USA
4Division of Infectious Diseases, Department of Medicine, Albert Einstein College of Medicine, Bronx, New York, USA
5Laboratório de Glicobiologia de Eucariotos, Departamento de Microbiologia Geral, Instituto de Microbiologia, Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil
6Department of Chemistry and Biochemistry, City College of New York and CUNY Institute for Macromolecular Assemblies, New York, New York 10031, The City University of New York
7Microscope Facility, The Johns Hopkins School of Medicine, Baltimore, MD, USA
8Department of Biochemistry, Albert Einstein College of Medicine, Bronx, New York, USA
*Corresponding author; email: acasade1@jhu.eduAbstract
Candida auris is a recently emerged global fungal pathogen, which causes life-threatening infections, often in healthcare settings. C. auris infections are worrisome because the fungus is often resistant to multiple antifungal drug classes. Furthermore, C. auris forms durable and difficult to remove biofilms. Due to the relatively recent, resilient, and resistant nature of C. auris, we investigated whether it produces the common fungal virulence factor melanin. Melanin is a black-brown pigment typically produced following enzymatic oxidation of aromatic precursors, which promotes fungal virulence through oxidative stress resistance, mammalian immune response evasion, and antifungal peptide and pharmaceutical inactivation. We found that certain strains of C. auris oxidized L-DOPA and catecholamines into melanin. Melanization occurred extracellularly in a process mediated by alkalinization of the extracellular environment, resulting in granule-like structures that adhere to the fungus’ external surface. C. auris had relatively high cell surface hydrophobicity, but there was no correlation between hydrophobicity and melanization. Melanin protected the fungus from oxidative damage, but we did not observe a protective role during infection of macrophages or Galleria mellonella larvae. In summary, C. auris alkalinizes the extracellular medium, which promotes the non-enzymatic oxidation of L-DOPA to melanin that attaches to its surface, thus illustrating a novel mechanism for fungal melanization.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Summary of Updates:
Footnote Group
Introduction
Candida auris is an emerging fungal pathogen that is believed to have originated in marine wetlands and marshes (1,2). C. auris was first described in a clinical setting in 2009, but patient samples as early as 1996 have been retrospectively determined to be C. auris (3–5). Since its discovery, C. auris has caused outbreaks in at least 47 countries (3). C. auris is often acquired in healthcare settings and is believed to cause infections via biofilms formed on medical equipment such as intravenous catheters, leading to bloodstream infection (candidemia) and dissemination to organs (6). The emergence of C. auris as a human fungal pathogen is particularly concerning due to its remarkably high resistance to known antifungal therapies. This pathogen displays especially high resistance to azole and echinocandin classes of antifungal drugs (3,7), posing a major concern for clinicians treating fungal infections, since many of the commonly used and most efficacious antifungal therapeutics belong to these two drug classes. Hence, a deeper understanding of the physical properties of C. auris and how they contribute to virulence is urgently needed.
One unexplored aspect of C. auris physiology is whether it can produce the virulence factor melanin. Other Candida species, such as C. albicans and C. glabrata, produce this virulence factor (8– 11). Melanin is a black-brown, insoluble, acid resistant pigment found throughout a plethora of life forms, and it has particular importance in the context of fungal virulence in mammals (12,13). In fungi, melanin is typically produced through either the oxidation of catecholamines (DOPA melanin), the Tyrosine degradation pathway (pyomelanin), or polyketide synthase pathways (DHN melanin) (12). Genes controlling melanization are affected by temperature, nutrient stress and copper/metal ion concentration (14–16); the biochemical processes can also be altered by the environmental antioxidant balance and pH (17,18). Melanin is formed either within the cell in organelles termed “melanosomes” and then exported to the cell wall, or in the cell wall itself (19,20). Once located within the cell wall, the pigment can be anchored through interactions with chitin, chitosan, and other cell wall components (9,21–23). In some melanizing fungi such as C. neoformans, melanin interacts strongly with polysaccharides, lipids, and proteins, many of which are still intact following boiling in acid, lipid extraction, and enzymatic degradation. These fungi are thought to use such molecules as a scaffold for melanin deposition in the cell wall (19,24,25). This melanin can also be released from the cell wall, as seen in C. neoformans, where melanin granules are shed into the extracellular space during cell wall remodeling and can be recovered from the supernatant (19,26).
Functionally, fungal melanin pigments have strong antioxidant properties that allow them to resist oxidative damage caused by the host immune cells, such as macrophage and neutrophil oxidative bursts (27). Additionally, melanin can bind and inactivate antimicrobial peptides and antimicrobial enzymes that the host typically uses to degrade and kill fungi during infection, as well as antifungal drugs used to treat infections (28–30). Fungal melanins located in the cell wall can alter cell wall composition and physically mask pathogen-associated molecular patterns (PAMPs) that would otherwise be recognized and bound by pathogen recognition receptors (PRRs). These changes may lead to diminished recognition by host immune cells. Conversely, one subtype of melanin – DHN melanin – can be recognized by the melanin sensing C-type lectin (MelLec) receptor, which is part of the human innate immune response and can enhance fungal clearance (31). Melanin could also be presented to lymphocytes in a stimulatory context, which results in melanin-specific antibody production, which can inevitably lead to fungal opsonization, phagocytosis, and complement deposition (28,32,33).

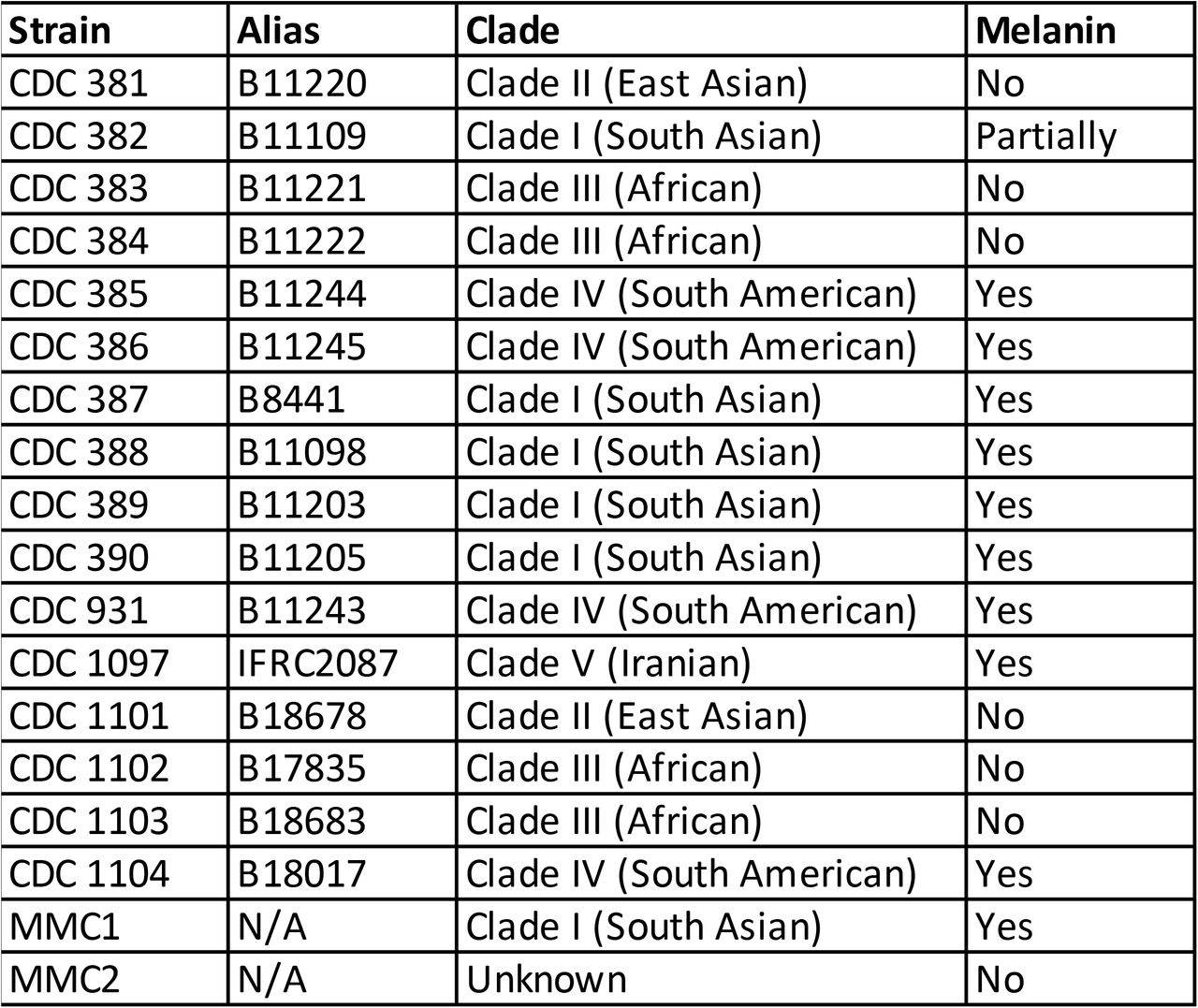

In this study, we investigated the ability of 18 C. auris strains to produce melanin. The presence of melanin was confirmed through detection of a stable free-radical structure via electron paramagnetic resonance spectroscopy, a characteristic feature of this group of pigments. Like other fungi, we found that C. auris produces a black melanin pigment, which was located on the surface of the cell wall. However, we found that, unlike other fungi, the melanization occurs extracellularly, in the supernatant. In liquid culture, the cell-free melanin can adhere to the surface of the cell and cause pigmentation of the fungus. Next, we found this process to be mediated by the ability of C. auris to neutralize the pH of the media it is grown in, resulting in enhanced autoxidation of the L-DOPA and catecholamine melanin substrates. This method of melanin production differs greatly from what is reported in other fungi. Lastly, we evaluated the functional properties of C. auris melanin, finding that it protected the fungus from oxidative stress and reduced cell surface hydrophobicity but was not protective in vitro in the context of interactions with macrophages, or in an in vivo challenge of Galleria mellonella larvae. Further studies are required to identify the unique features of C. auris that make it particularly resistant to antifungal therapeutics.
Results

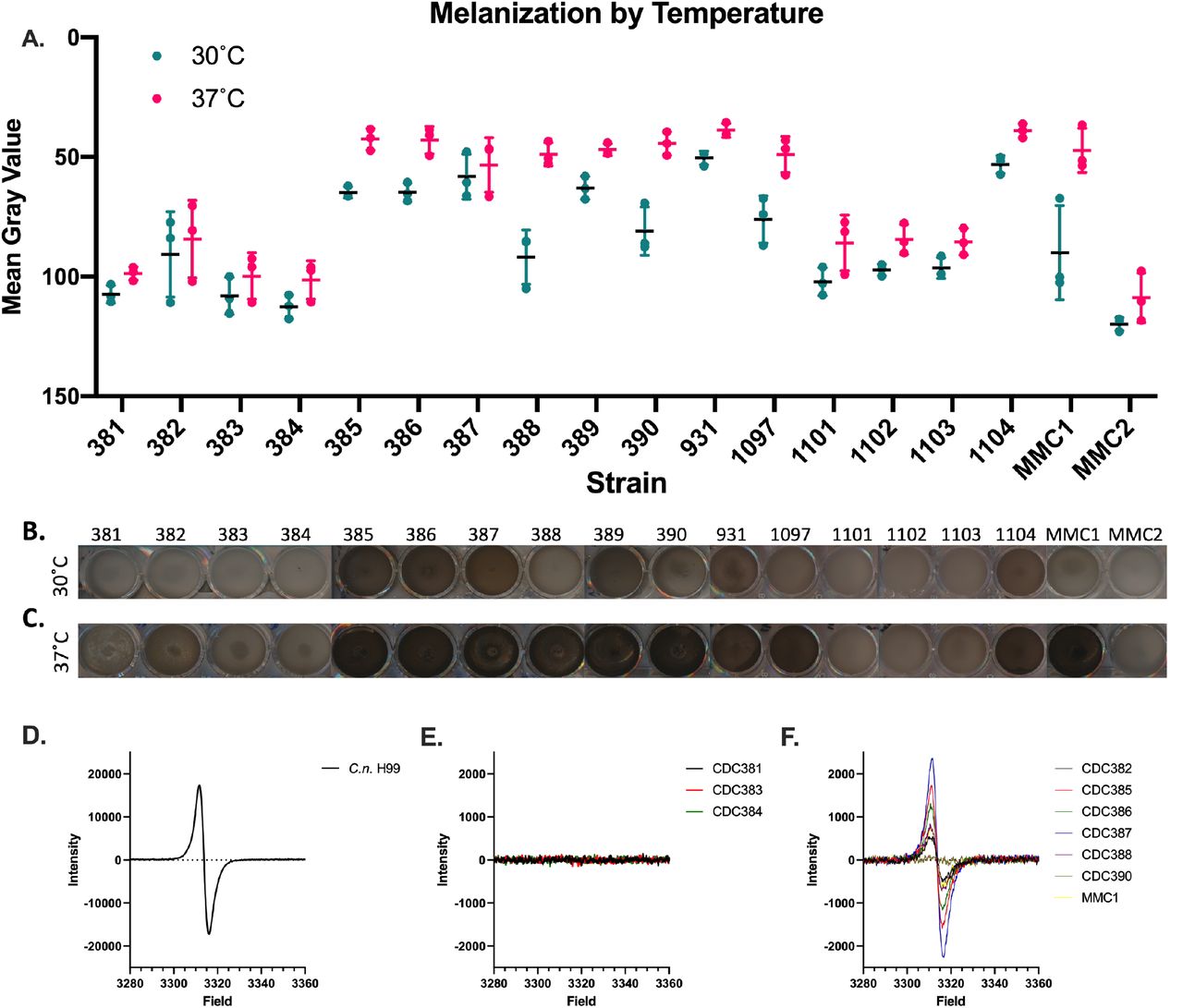

Temperature dependence of melanization on Candida auris strain
To evaluate the ideal temperature for Candida auris melanization, we tested the degree of melanization at both 30°C and 37°C of several strains across five C. auris clades. We found that all strains melanized to a greater extent at the higher temperature compared to the lower temperature (Figure 1A-C). The melanin-capable strains of C. auris were CDC 385, CDC 386, CDC 387, CDC 388, CDC 389, CDC 390, CDC 931, CDC 1097, CDC 1104, and MMC1 (Table 1). Strain CDC 382 exhibited an intermediate melanin phenotype. Additionally, we note that certain strains, namely CDC 388, CDC 390, CDC 1097, and MMC1, melanized significantly more at 37 °C and not at the lower temperature. This trend has interesting implications for understanding regulation of melanization and the role it has in warm environmental niches, as well as during infections of humans, who have a normal core body temperature of ∼37 °C.
Further, the capacity of individual strains to melanize was associated with their evolutionary clade, with strains belonging to Clades I and IV – associated with South Asia and South America, respectively – demonstrating melanization activity, while those strains belonging to Clades II and III – associated with East Asia and Africa, respectively – did not (Table 1). In addition, the single representative of Clade V – associated with Iran – melanized, but the lack of additional Clade V isolates for testing hinders the generalization of this finding.
Electron paramagnetic resonance (EPR)
Melanin is characterized by a stable free-radical structure, which lends to its antioxidant properties. Stable free radicals can be detected by electron paramagnetic resonance (EPR), making this biophysical technique the ‘gold standard’ for the identification of melanin pigments. Melanin from 7-day cultures was extracted from 12 strains of C. auris and analyzed by EPR, where melanin extracted from C. neoformans H99 was used as a standard (Figure 1D-F). The EPR spectra from the non-melanizing strains did not display the melanin-distinctive EPR peak (Figure 1E), but the EPR spectra from the pigment extracted from the melanin-producing strains (Figure 1F) was similar to the C. neoformans melanin profile (Figure 1D).
Time and cell density

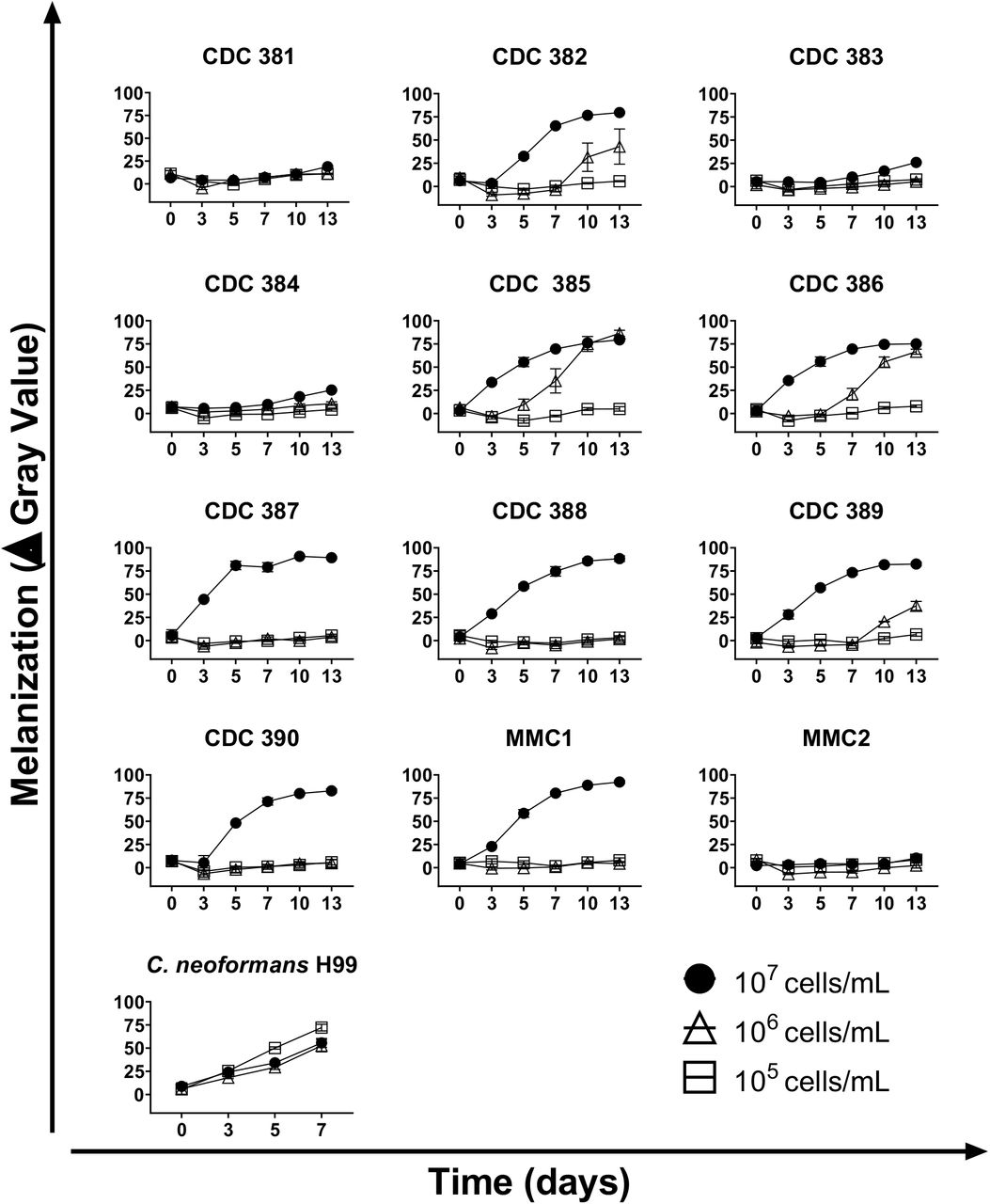

To understand the optimal conditions for melanin production by C. auris, yeast cells were incubated with L-DOPA starting with different cell densities, and the production of pigment was analyzed every 2 to 3 days over a 13-day period and compared to cells incubated in the absence of L-DOPA (Figure 2). C. neoformans was also cultured under the same conditions and compared to the C. auris melanization profile. Melanin production was optimal by cells in high density (107 cells/mL). In this condition, melanin was visible from day 3, and intensified over a period of days, reaching its peak between days 7 and 10. Some strains melanized in a delayed fashion when grown at a medium cell density (106 cells/mL), whereas none of the low density (105 cell/mL) cultures produced visible pigment. The cell density-associated phenotype presented by C. neoformans was different from that presented by C. auris, as melanin production by low cell density C. neoformans cells was equally or more effective than in the high-density conditions.
Candida auris strains melanize using substrates associated with DOPA melanin

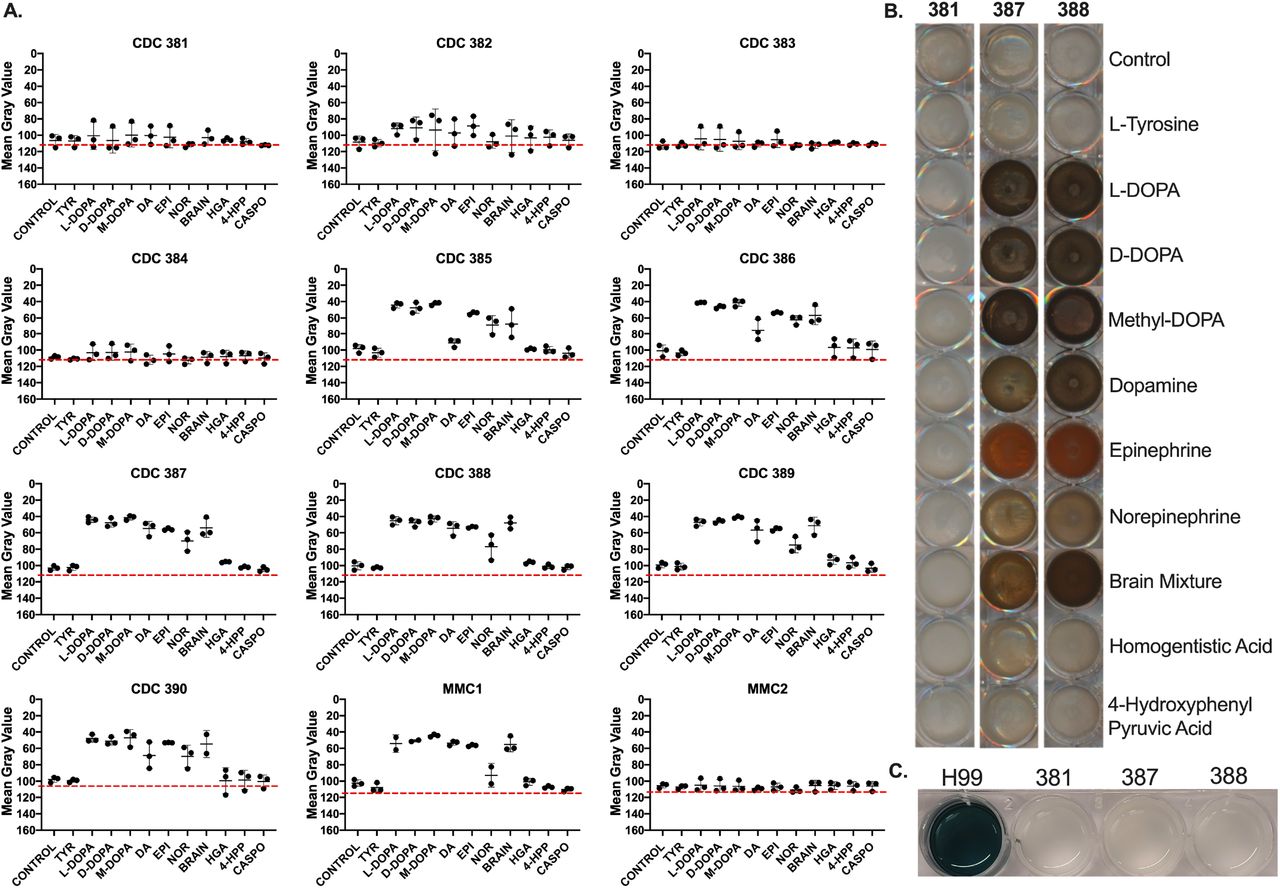

We examined various known melanin precursors to evaluate which of them the C. auris strains could use as substrates for melanization, and if there are any strain-specific differences between the substrates used. We found that at a starting inoculum of 107 cells/mL, melanin-capable C. auris strains were able to use L-3,4-dihydroxyphenylalanine (L-DOPA), D-3,4-dihydroxyphenylalanine (D-DOPA), L-methyl-3,4-dihydroxyphenylalanine (Methyl-DOPA), dopamine, norepinephrine, epinephrine, and a mixture of catecholamine neurotransmitters (dopamine, epinephrine, and norepinephrine; ‘brain mix’) at the ratios found in the mammalian brain (34). We found that in general, all melanin-capable C. auris strains were able to use the same substrates (Figure 3A). Some strains, namely CDC 385 and CDC 386, were less able to produce pigment when grown with dopamine. Whereas the L-DOPA, D-DOPA, Methyl-DOPA, dopamine, brain mix, and norepinephrine resulted in the formation of pigments that were dark brown to black in color, the epinephrine precursor resulted in reddish-brown or amber colored melanization (Figure 3B).
Notably, all the C. auris strains tested were unable to use L-Tyrosine, homogentisic acid (HGA), or 4-hydroxyphenylpyruvic acid (4-HPP) as precursors for melanization. First, this indicates that C. auris does not have a tyrosinase enzyme that can convert L-Tyrosine into a diphenolic precursor suitable for DOPA melanin synthesis. Second, this indicates that C. auris cannot produce pyomelanin, which is synthesized from intermediate products generated along the Tyrosine Degradation Pathway (in which 4-HPP and HGA participate) and typically involves laccase-mediated polymerization (35). Additionally, the strains were also unable to oxidize ABTS, a laccase-specific substrate, further indicating that the melanization agent is not a laccase (Figure 3C).

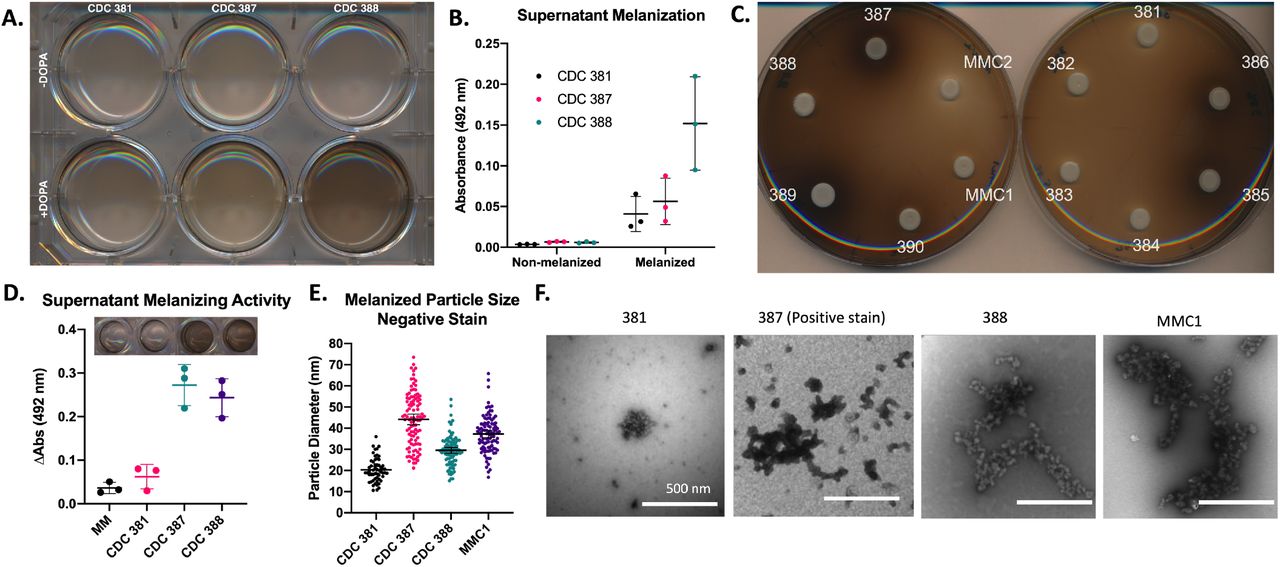

Melanin is primarily found in the supernatant
During collection of the melanized cells, we noted that the supernatants of the cultures were notably darker than expected given our work with another melanizing fungus, C. neoformans (Figure 4A, B). Similarly, when cells were grown on agar plates with L-DOPA as a substrate for melanization, there was a distinct halo of pigment surrounding the melanin-producing strains of C. auris (Figure 4C). Notably, there was little to no pigmentation of the yeast colony itself. This observation strongly suggested that the melanization of the cells was primarily extracellular and did not originate within the cells themselves.
To evaluate whether the supernatant of the cells had melanin-producing enzymatic activity, we added L-DOPA to the isolated supernatant. We found that the supernatants of melanizing strains, namely the supernatant of MMC1, CDC 387 (B8441), and CDC 388 (B11098), were capable of oxidizing L-DOPA, whereas the supernatant of the non-melanizing strain CDC 381 (B11220) and minimal media alone were not. This capability supported the hypothesis that the melanin-producing components of the C. auris were secreted (Figure 4D).

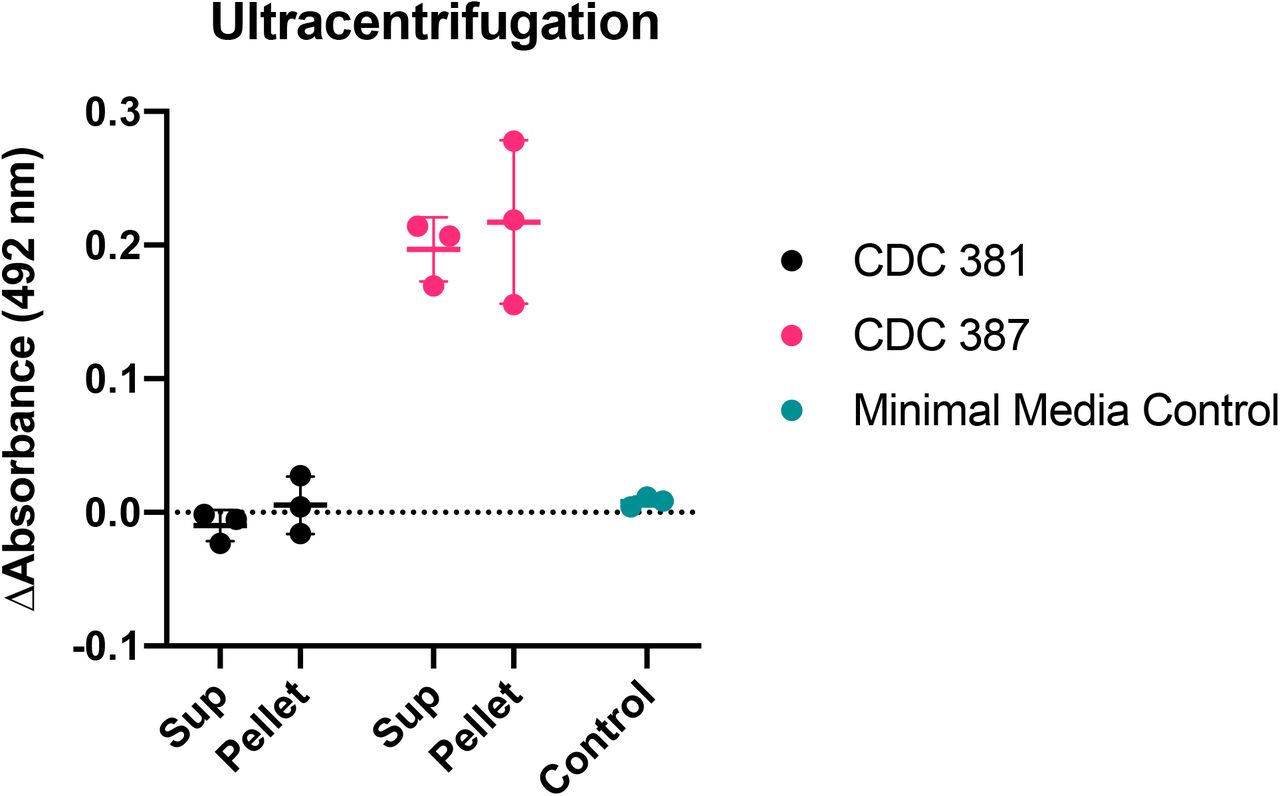

Using ultracentrifugation, we collected small particles and extracellular vesicles found within the melanized supernatant of the liquid cultures. We found that a substantial amount of the pigment was in this supernatant pellet. Using negative staining transmission electron microscopy (TEM), we found that the pelleted melanin was organized within granule structures, comparable to what was seen at the cell wall periphery of the melanized culture (Figure 4E, F). These structures measured 20-40 nm (Figure 4E) and were similar in appearance to melanin granules secreted by C. neoformans (19). Figure 4F illustrates that the granules from CDC 381 had the smallest mean diameter (∼20 nm) and CDC 387 had the largest value (∼40 nm).
Cell-bound melanin is localized to the periphery of the cell wall
To visualize the localization of melanin on the C. auris cells grown in liquid media, we used light microscopy, TEM, and scanning electron microscopy (SEM). Under the light microscope, dark pigmentation of the cells appeared to be located primarily within or proximal to the cell wall. Some cells were observed to have additional intracellular pigmentation, possibly due to oxidation of L-DOPA within a large vacuole (Figure 5A). Comparing TEM micrographs of melanized and non-melanized cultures, we found electron-dense structures exclusively in the melanized cultures, primarily on the periphery of the cell wall. These electron-dense structures are likely to be melanin that appeared to be rounded and granular. The extracellular melanin granules were also unbound to the cell wall (Figure 5B). These extracellular melanin granules were similar to the secreted melanin granules previously reported in C. neoformans (19), and were roughly 20-40 nm in diameter (Figure 5B, 4E-F). Similarly, samples imaged with SEM showed that melanized cells had raised structures on their surface, consistent with the structures observed by TEM (Figure 5C). Further, in the case of CDC 387, 388, and MMC1, the melanin granules appeared to hold the cells together in large, aggregated clumps.
To determine the directionality of the cell-bound melanin deposition (i.e., if melanin was formed in the cell wall and then released into the media, or if the pigment was formed primarily in the media and then attached to the cell-wall periphery), we performed a series of ‘add-back’ experiments, in which we added melanized supernatant to the cells from the same C. auris strain grown without L-DOPA. We found that the cells became pigmented by three hours of incubation with the melanized supernatant (Figure 6A-D). Additionally, when we added melanized supernatant from the CDC 388 strain to the non-melanizing CDC 381 strain, the CDC 381 strain accumulated pigment (Figure 6D). First, since CDC 381 cannot readily produce pigment, this experiment showed that the pigment accumulation in these add-back experiments was due to adhesion of already synthesized pigment in the supernatant rather than the production of new pigment from unreacted L-DOPA in the supernatant. Second, it indicated that the melanin-deficient cells did not have a cell wall difference that made them intrinsically unable to bind extracellular melanin. These add-back experiment data, along with the secretion data of Figure 4 and Figure 5, point to the conclusion that C. auris cell wall melanization occurs extracellularly and then sticks to the outside of the cell wall.
Effects of altering cell wall structures on the melanization of C. auris

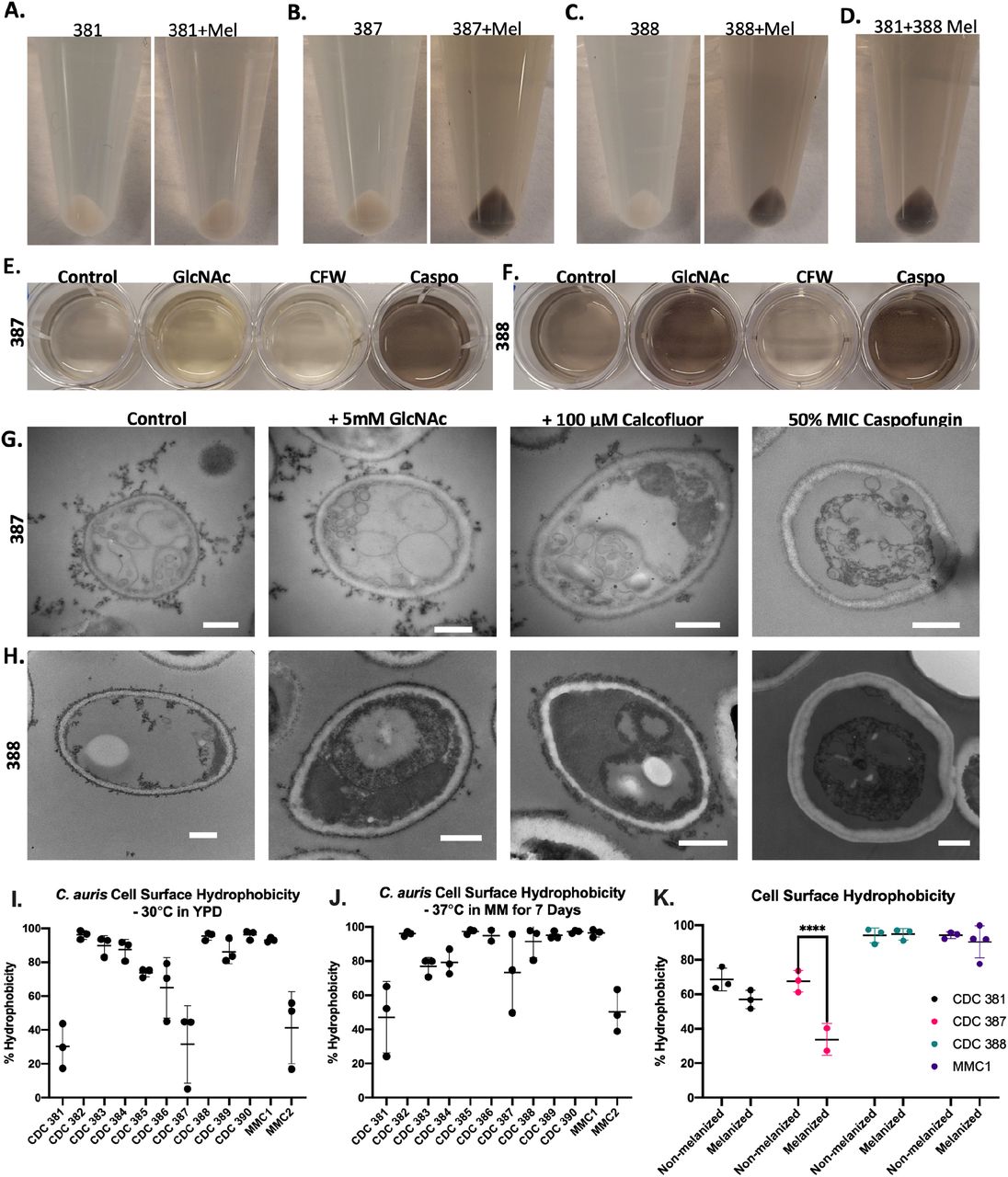

To determine what cell wall components were important for adherence of the melanin to the C. auris cell wall, we grew CDC 387 and CDC 388 with L-DOPA in the presence of compounds known to enhance or block the proper formation of cell-wall components (9,36), either through direct supplementation of these cell wall components that bind and block proper structure formation, or by inhibition of the enzyme responsible for producing that cell wall component. This strategy allowed us, in theory, to evaluate which components of the cell wall were important for extracellular melanin adherence. Culture conditions that resulted in a darker supernatant than the control condition indicated the lack of melanin adherence to the cell wall, and those with lighter supernatant indicated that the compound enhanced melanin adherence to the cell wall.

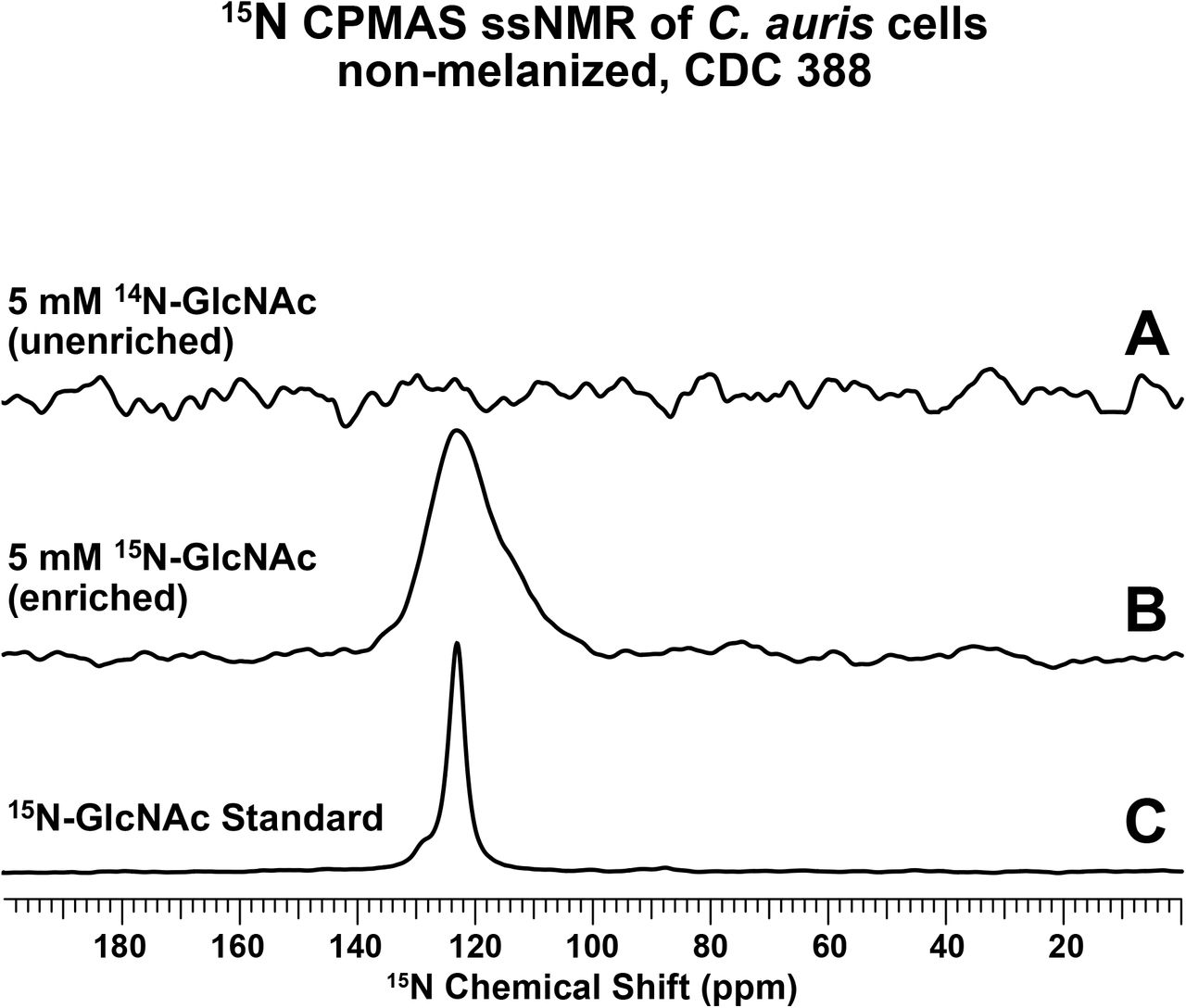

The cell-wall polysaccharide chitin, a polymer of β-1,4-linked N-acetylglucosamine (GlcNAc) units, has been demonstrated to play a role in melanization in C. neoformans and C. albicans (9,37). In these organisms, supplemental GlcNAc provided in the cell-culture media was used as a substrate for chitin formation. This in turn increased the overall content of chitin in the cell wall, which in C. albicans results in increased melanin production, externalization and cell-wall adhesion, and in C. neoformans results in increased cell-wall melanin deposition and retention. To determine whether a similar relationship exists between chitin synthesis and melanization in C. auris, cells grown in culture medium supplemented with GlcNAc that was enriched in the NMR-active 15N-isotope were examined using solid-state NMR spectroscopy (ssNMR) to determine the metabolic fate of the labeled exogenous substrate. The observation of an 15N NMR signal corresponding to the amide nitrogen of chitin verified that C. auris is indeed capable of taking up exogenously provided GlcNAc and subsequently using it as a precursor for chitin synthesis (Supplementary Fig. S1). In CDC 387 and CDC 388, addition of 5 mM GlcNAc did not enhance cell wall melanin adhesion and instead resulted in darker supernatant, perhaps indicating less adhesion (Figure 6E, F). In TEM micrographs, the melanin located at the cell wall exterior did not appear appreciably different for the control and the GlcNAc treated cultures (Figure 6G, H).
Conversely, we added 100 μM Calcofluor White (CFW), a fluorescent dye which forms hydrogen bonds with chitin polymers as they grow and thus disrupts proper formation of chitin microfibrils (38,39). Adding this dye led to markedly decreased supernatant pigmentation (Figure 6E, F). Intriguingly, under microscopic analysis, the CFW appeared to precipitate and form crystals that bound the melanin. Thus, the adhesion of melanin to the CFW crystals was the likely cause of the lack of pigmented supernatant. This resulted in black crystals that had the fluorescent properties of the CFW, along with the expected CFW-stained cell walls (Supplementary Figure 2A). The CFW crystals were also visible under electron microscopy (Figure 6H, Supplementary Figure 2B). The crystallization persisted despite filter sterilization. In an assay of cell-free supernatant with CFW and with/without L-DOPA, we confirmed that the synthesized melanin bound to the CFW crystals and precipitated out of solution (Supplementary Figure 2C). We also noticed that the CDC 387 and CDC 388 strain supernatants without L-DOPA formed a smaller population of CFW crystals compared to the CDC 381 non-melanizing strains (Supplementary Figure 2D). This finding may indicate a correlation between the factor responsible for melanization and formation of CFW crystal fragments with a smaller size, which could indicate better solubility.
Further, we grew the CDC 387 and CDC 388 strains in the presence of the antifungal compound caspofungin at half of the concentration reported by the Centers for Disease Control and Prevention (CDC) (40) to inhibit the enzymes responsible for cell wall β-glucan synthesis. Caspofungin treatment resulted in high levels of supernatant melanization (Figure 6E, F). Upon light microscopic and electron microscopic analysis, the treatment appeared to reduce the amount of melanin present on the cell wall, with nearly no melanin visible on the cell wall via TEM (Figure 6G, H). Additionally, for the CDC 388 strain, caspofungin treatment resulted in what appeared to be pseudohyphal growth (Supplementary Figure 2E). Although the cells were able to grow in culture with this concentration of caspofungin, in the electron micrographs, the cells appeared to have a deformed morphology, and their cytoplasmic contents looked condensed and abnormal, potentially due to antifungal stress and cell-wall defects (Figure 6G, H).
Melanization affects the hydrophobicity of some C. auris strains
Since melanin is a hydrophobic molecule, we investigated whether melanization had a correlation with the cell surface hydrophobicity (CSH) of the C. auris strains. With C. auris strains grown in the nutrient rich Yeast Peptone Dextrose (YPD) media and minimal media, 7 of 12 strains had CSH that was greater than 80% (Figure 6I, J). There was no correlation between the strain hydrophobicity and its ability to melanize: the strongly melanizing strain CDC 387 and the weak/no melanizing strains CDC 381 and MMC2 all had low hydrophobicities. Conversely, the non-melanizing strain CDC 383 and melanizing strain CDC 388 had high hydrophobicity. Additionally, since hydrophobicity is known to play roles in host-pathogen interactions (41–43), we investigated whether melanization affected the CSH of the C. auris strains. Surprisingly, we found that in the CDC 387 strain (and to a lesser extent in the non-melanizing strain CDC 381), growth in L-DOPA for 7 days resulted in decreased CSH compared to the controls grown without L-DOPA (Figure 6K). In CDC 388 and MMC1, we did not see a change in CSH following melanization, although these strains had notably high levels of hydrophobicity at ∼90%.
Melanin adherence is correlated with a higher cell-wall polysaccharide content

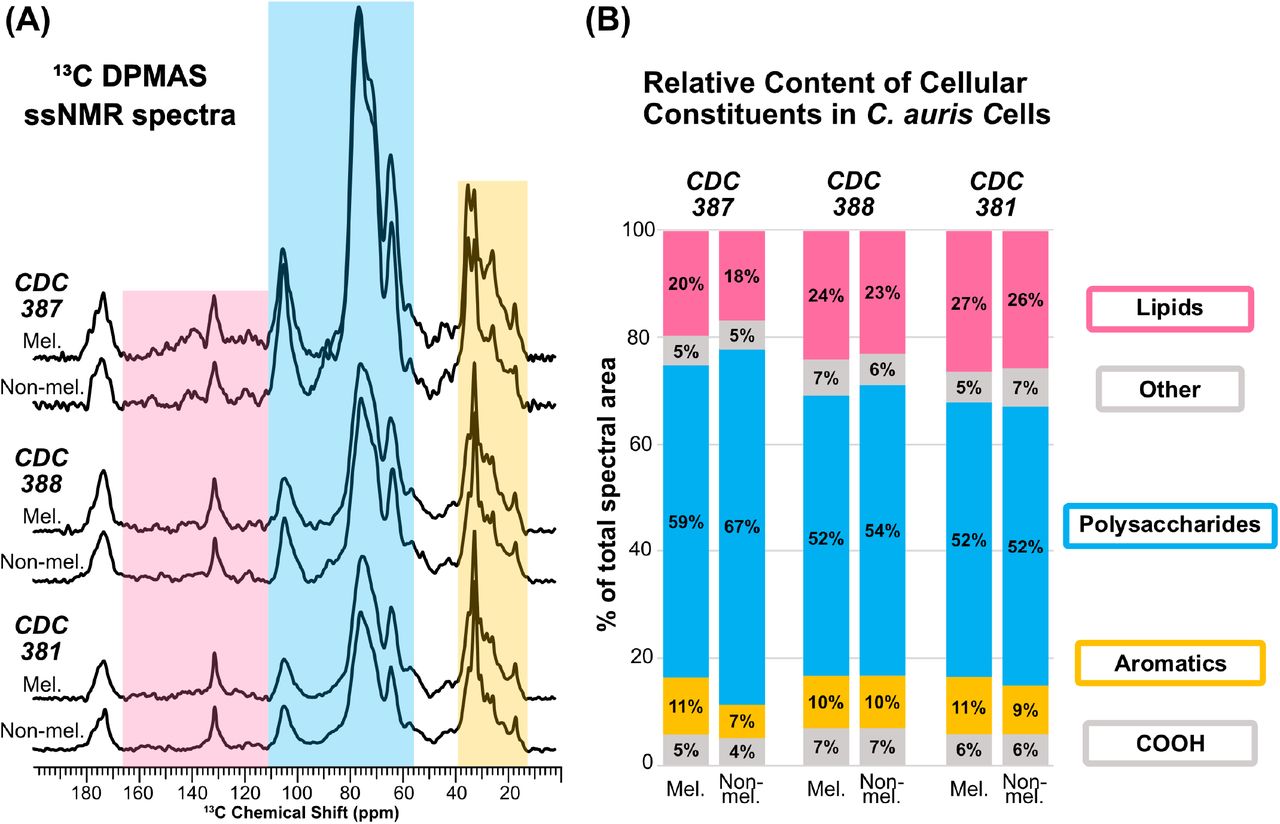

To further assess a potential role for the cell wall in C. auris melanization, we used 13C solid-state NMR (ssNMR) to determine whether the proportion of cell-wall polysaccharides in these cell samples differs between the two melanizing C. auris strains evaluated in this study CDC 387 and CDC 388, and with respect to the non-melanizing strain CDC 381. To circumvent the need to hydrolyze and purify the cell-wall material for quantitation, we took the more direct approach of conducting direct-polarization magic-angle spinning (DPMAS) experiments on intact heat-killed C. auris cells. The experiments were carried out using parameters optimized to generate quantitatively reliable spectra, in which the integrated peak intensities represent the relative amounts of the different carbon types present in the various samples (Figure 7A). Thus, the relative number of polysaccharides present in each C. auris whole-cell sample could be estimated by measuring the integrated signal intensity within the spectral region where polysaccharide carbons resonate (∼54-110 ppm) and comparing it to the total integrated signal intensity across the spectrum. To determine whether the process of melanization elicits changes in cell-wall composition, we examined cells from the three strains, each grown in the presence and absence of L-DOPA. Since melanin pigments have been reported previously to comprise only a minor fraction (1-15.4%) of the total dry mass of melanizing fungal cells (44,45) and are likely to have large molar masses, the NMR signals that arise from pigment carbons make a negligible contribution to the overall spectral intensity. Consequently, we were able to make quantitative estimates of relative polysaccharide content regardless of whether melanin was present.
Our analysis revealed that cells from the CDC 387 strain, which produce melanin that attaches robustly to the exterior cell wall, display a moderate difference in relative polysaccharide content depending on whether the cells are grown with or without L-DOPA (59% vs. 67% for melanized and non-melanized cells, respectively) (Figure 7B). In contrast, the relative polysaccharide content in CDC 388, where melanin is primarily found in the supernatant, differed by only 2% between cells grown with or without L-DOPA (52% vs. 54%). Polysaccharide content was also constant at 52% for the non-melanizing CDC 381 strain in cultures grown with and without L-DOPA. Interestingly, the most significant difference in relative polysaccharide content emerges if we compare the three strains rather than focusing on whether L-DOPA is present in any of their growth media. The average relative polysaccharide content of the CDC 387 cells (with and without L-DOPA) is 63%; the corresponding quantities for CDC 388 and CDC 381 cells are 53% and 52%, respectively. Taken together, our data suggest that the cells from the CDC 387 strain have an overall greater relative polysaccharide content in comparison to CDC 388 and CDC 381 cells, regardless of whether L-DOPA is present in the culture medium. This trend could potentially account for the robust cell-wall melanin binding ability of the CDC 387 strain.

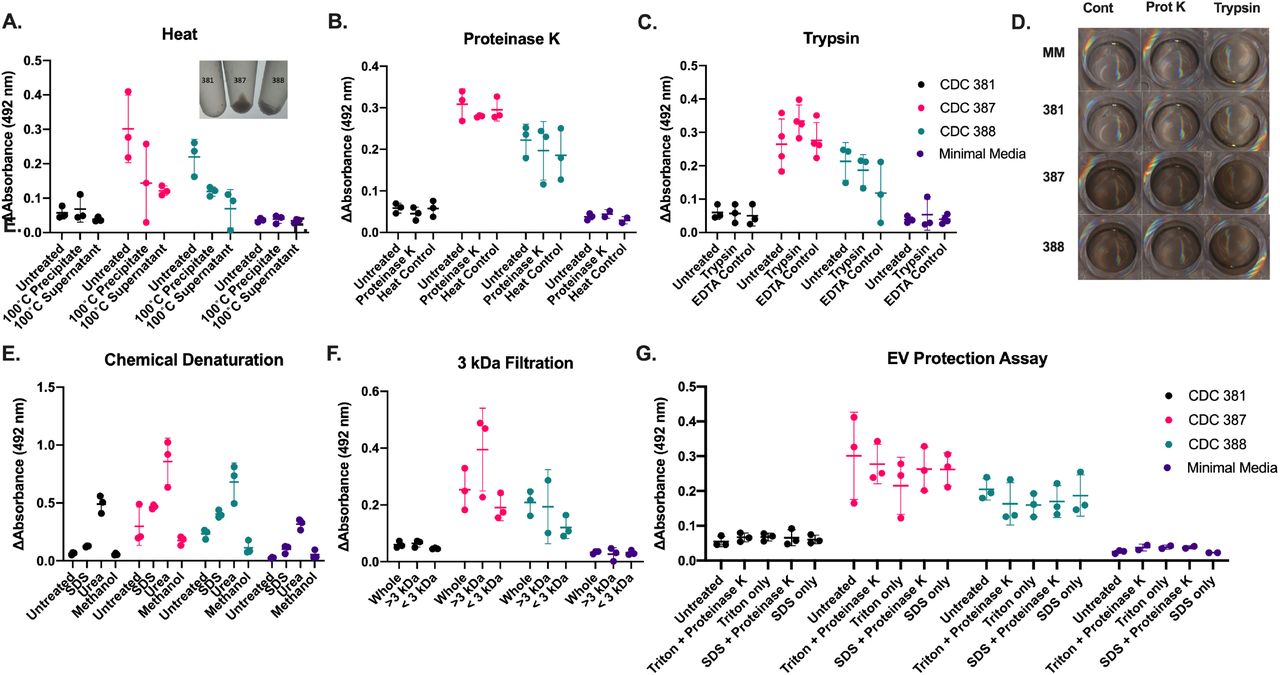

Supernatant melanization is resistant to denaturing conditions
To further elucidate the identity of the melanin-producing components, we sought to characterize properties and constraints on supernatant melanization. We first assessed the supernatant’s melanization activity after exposure to high temperatures. We observed a modest reduction in the supernatant’s capacity to melanize after a 1 h incubation at 100°C, and no significant difference between the melanization activity of the precipitate or supernatant that formed after boiling (Figure 8A). After treating samples with the serine proteinases Trypsin or Proteinase K, we assessed the supernatant melanization activity and observed no reduction in the capacity for melanization (Figure 8B-D). Further, melanization activity was unaffected by treatment with 1% w/v SDS or methanol; however, melanization was increased after treatment with 6 M urea under all conditions, indicating that urea affected the melanization reaction irrespective of the melanizing strain-specific factor in the supernatant (Figure 8E). These observations argue against the melanization factor being a protein.
We sought to characterize the size of the melanin-producing components. After passing the supernatant through a 3 kDa protein cut-off filter, we found that melanization activity was partially conserved in the flowthrough of the concentrator, suggesting that the melanization factor was not larger than 3 kDa (Figure 8F).
To check whether a melanin-producing component was being protected from denaturation within Extracellular Vesicles (EVs), we treated the supernatant with Triton X-100 and SDS in combination with proteinases. If the melanization factor were protected within EVs, adding detergent would likely compromise EV integrity and allow the protease to degrade the protein contents within (46–48). We did not find that EVs protected a melanizing factor from proteolytic degradation (Figure 8G). This finding was further supported by the absence of enhanced melanization activity for an EV-enriched ultracentrifuged pellet (Supplementary Figure 3).
Melanization genes in the C. auris genome
We searched the C. auris genome for enzymes that have been associated with melanin synthesis in other fungi such as laccases, phenol oxidases and tyrosinases. We found a number of hypothetical multicopper oxidase and ferroxidase genes reported in the C. auris genome. However, we have no evidence that these have laccase or tyrosinase-like functions; they appear similar to metal ion transporters, peroxisomal membrane components, and ergosterol synthesis (Supplementary Tables 1 and 2). Hence, the absence of tyrosinase and laccase activity in C. auris is in accord with the absence of a clearly identifiable enzyme in the genome.
Supernatant neutral pH correlates with ability of C. auris strains to melanize

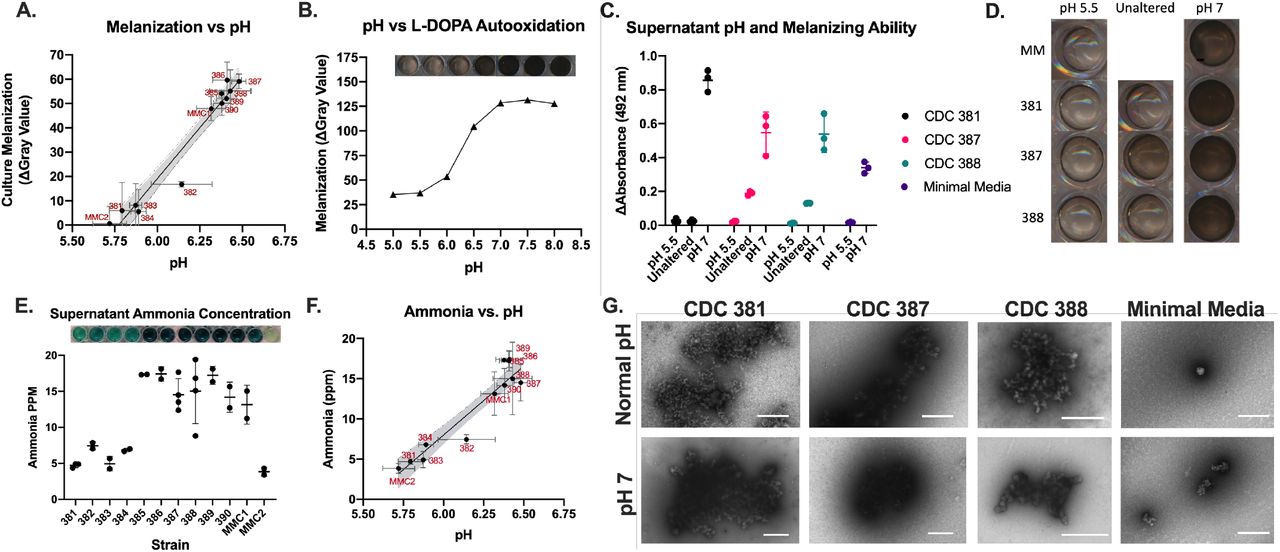

Due to the smaller crystal size of the CFW in the supernatants from the melanizing strains, we measured the pH of their supernatants, since alkaline pH can enhance the solubility of CFW solutions (49,50). Additionally, the urea treatment, which produced an alkaline environment, increased supernatant melanization in all the strains. We found a strong correlation between the pH of the conditioned media and the degree to which the cultures melanized (Figure 9A). We found that the melanizing strains have a supernatant of about pH 6.5, whereas the non-melanizing strains tended to have a supernatant closer to pH 5.75. The higher values of supernatant pH fall in the range at which L-DOPA and other catecholamines auto-oxidize to melanin (Figure 9B).
We altered the supernatant pHs to obtain values of either pH 5.5 or 7 by adding hydrochloric acid or potassium hydroxide, respectively. We found that melanization activity was halted at pH 5.5, including the supernatants of CDC 387 and CDC 388, but was enhanced at pH 7 (Figure 9C, D). Most notably, the supernatant from CDC 381 – a non-melanizing strain – achieved melanization activity at higher pH that was statistically indistinguishable from that of the melanizing strains – CDC 387 and CDC 388 at the same pH. This observation strongly suggests that the pH of the supernatant is a major contributor to the observed extracellular melanization activity.
As endogenous production of ammonia has been reported in C. albicans under stress conditions (51), we assessed the ammonia concentrations of the supernatants using a commercially available colorimetric assay that specifically detects ammonia (52). We observed higher ammonia concentrations in supernatants from C. auris strains that melanized and had higher pH (Figure 9E,F).
To determine if the melanin structures that form in the cell-free supernatant from the cultures had similar ultrastructural characteristics as autopolymerized L-DOPA, we collected the oxidized L-DOPA from the supernatants of CDC 381, CDC 387, CDC 388, and minimal media alone at their baseline pH values (∼5.75, 6.5, 6.5, and 5.5, respectively) and at pH 7. We imaged these melanized particles using negative staining TEM. Interestingly, we found that the melanized particles from CDC 387 and CDC 388 had structural differences compared with the oxidized L-DOPA in the minimal media at pH 7 (Figure 9G). The pigment particles collected from the cell-free supernatant incubated with L-DOPA were similar to those collected from melanized cultures, whereas the minimal media with auto-oxidized L-DOPA alone had smaller irregular particles and rougher clumps of electron dense material (Figure 9G). This suggested that there is some component in the supernatant that may help in structuring the auto-polymerized L-DOPA, by acting as a scaffold, allowing it to form spherical and linear structures like beads on a string. Melanin is known to bind strongly to carbohydrates, lipids, and proteins, which could be such factors (19,24).
Melanin protects C. auris from oxidative damage

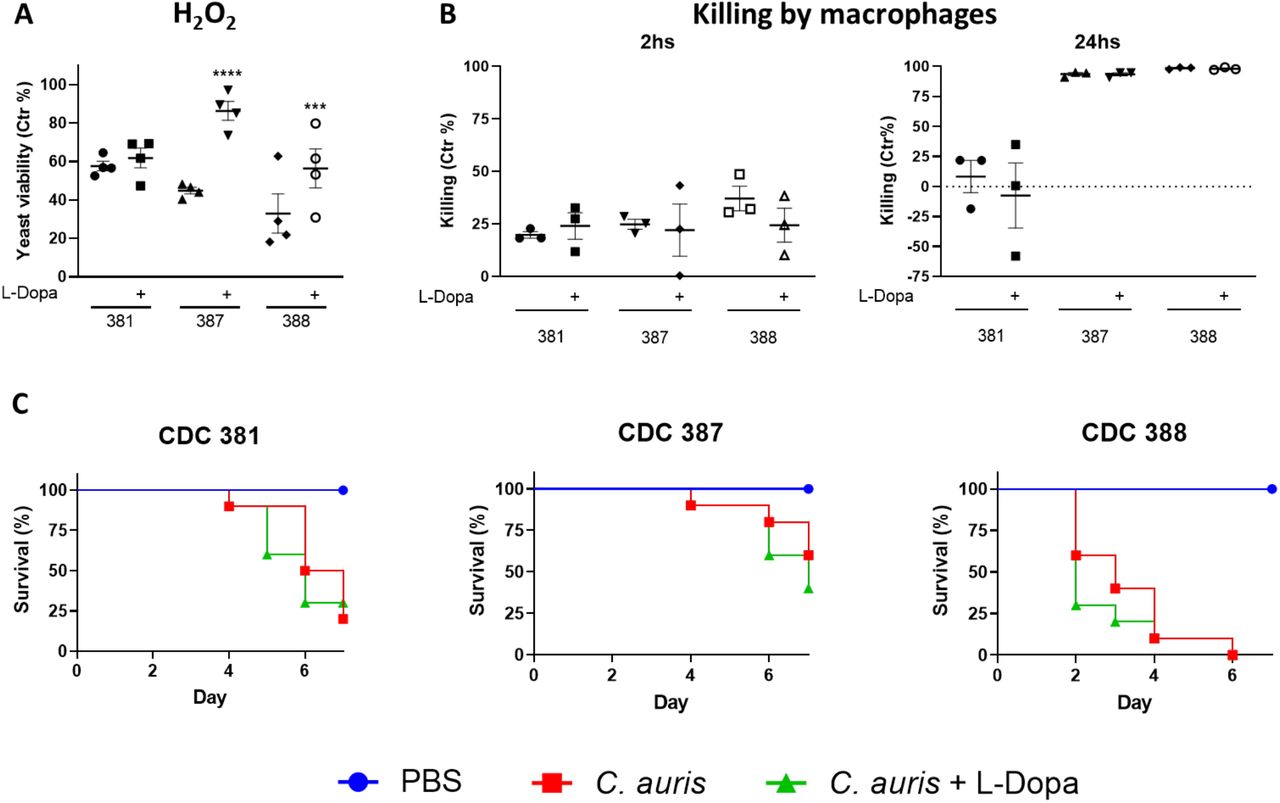

C. auris cultures incubated, or not, with L-DOPA for 7 days were treated with hydrogen peroxide (H2O2), and yeast viability was evaluated (Figure 10A). The incubation with H2O2 reduced the viability of all evaluated strains of C. auris. The melanin-producing strains (CDC 387 and CDC 388) incubated with L-DOPA were partially protected from the H2O2, when compared to cells from the same strain grown in the absence of L-DOPA. Strain CDC 381 showed similar viability in the presence and in the absence of L-DOPA, indicating that melanin protects C. auris yeast cells against oxidative attack by H2O2.
Melanin does not protect C. auris against macrophage killing
Melanized and control C. auris yeast cells were incubated with murine bone marrow-derived macrophages (BMDM) for 2 and 24 hours and yeast killing was assessed. Under these conditions melanin did not confer protection to the yeast cells against macrophage killing (Figure 10B). It was interesting to observe that whereas the killing after 2 hours was similar among the strains, after 24 hours CDC 381 was shown to be partially resistant against macrophage killing, as opposed to the susceptible phenotype exhibited by strains CDC 387 and CDC 388.
Melanin does not affect C. auris virulence during Galleria mellonella in vivo infection
Larvae of G. mellonella were infected with yeast cells from melanized and control C. auris and survival was evaluated. As seen for the killing experiment with mouse macrophages, the presence of melanin did not impact the survival of Galleria mellonella larvae (Figure 10C), suggesting that melanization of C. auris prior to infection did not confer protection to the fungus in this invertebrate model.
Discussion
In this work, we have investigated the ability of C. auris to produce melanin, a multifunctional pigment found across all biological kingdoms and contributes to the virulence of numerous pathogenic fungal species. Some of the functions of melanin include the ability to neutralize reactive oxygen species during immune activation, inactivate antimicrobial peptides, and inactivate antifungal drugs (12,13,53).
Due to these immunity- and therapeutic-evasive properties, our findings that C. auris can melanize may have clinical relevance, particularly in regard to our understanding of how C. auris fungal infections are treated and considering this organism’s exceptionally high resistance to most common anti-fungal therapeutics. We evaluated whether C. auris can produce melanin, which strains produced the pigment, what substrates can be used for this melanization, where the melanin was localized, and the mechanism by which the melanin was produced.
Characterization of melanin production and localization
We evaluated the ability of 18 C. auris strains to melanize when grown in the presence of L-DOPA, a commonly used substrate in fungal melanin research, and a common substrate for fungi that do not endogenously produce melanin. We found that most but not all of the strains melanized, which manifested by darkening of cultures, and that the ability to melanize was enhanced at higher temperatures (37°C compared to 30°C). We had anticipated that melanization would occur similarly in all strains, so it was surprising that only some strains had the ability to melanize. Further, based on our understanding of fungal melanization, we expected melanization to occur more at 30°C rather than 37°C, as it does in other fungi such as Cryptococcus neoformans (54). This trend also has relevancy for pathogenesis in humans, as human body temperature is 37°C and thus more conducive to ideal C. auris melanization conditions. Interestingly, the pattern of melanization correlated with the clade to which the strain belonged: C. auris strains from Clades I and IV, which are associated with South Asia and South America, respectively, are the melanizing strains, while the non-melanizing strains are from Clades II and III, which are typically associated with East Asia and South Africa, respectively. This demarcation could point to some lineage-specific genetic or epigenetic differences that are responsible for the melanization phenotype or are regulating the melanization process. Another aspect that differed from the pigmentation observed in other fungi was the impact of cell density on melanization by C. auris (55). We observed that melanization in C. auris required high cell density (107 cells/mL). However, at an intermediate cell density (106 cells/mL) only some strains of C. auris (CDC 382, 385, 386, and 389) were able to produce melanin, and in a delayed fashion. This observation could indicate the need of a quorum sensing molecule to trigger effective melanization in C. auris.
Fungi have been shown to produce DHN-melanin, DOPA-melanin, and pyomelanin. DHN-melanin is produced from endogenous precursors formed through the polyketide synthesis pathway and not through exogenously added precursors (12). Thus, we tested the production of melanin following addition of various DOPA-melanin and pyomelanin substrates. We found that C. auris produces melanins consistent with typical DOPA-melanins using substrates such as L-DOPA, D-DOPA, Methyl-DOPA, dopamine, epinephrine, and norepinephrine. C. auris was unable to produce melanin from L-Tyrosine, indicating there is no tyrosinase present to convert L-Tyrosine into L-DOPA and downstream melanin intermediates. Neither are there enzymes of the Tyrosine Degradation Pathway that would be needed for pyomelanin production, an observation supported by the inability to convert 4-HPP into pyomelanin pigment. The C. auris genome has hypothetical genes related to tyrosinase, as annotated by FungiDB, the online bioinformatics database for fungi, but these genes appear more related to ergosterol synthesis or magnesium/zinc ion transport. Similarly, C. auris was unable to form pyomelanin from homogentisic acid (HGA) and was unable to oxidize ABTS into its blue form. Laccases, such as those in C. neoformans, are able to produce a brown pyomelanin-like pigment from HGA and convert colorless ABTS into its blue oxidized form (35,56). These results in C. auris suggest that a laccase does not exist as it does in C. neoformans, or at least none with as wide of a substrate range. Melanization in other DOPA-melanin producing fungi is often catalyzed by laccases (57) or multicopper ferroxidases (11). Current annotation of the C. auris genome indicates there are hypothetical laccases, oxidoreductase, and ferroxidases (Ontology Groups OG6_100257 and OG6_100380), however these appear to be related to metal ion homeostasis and part of the peroxisomal membrane. Since we do not know the function or expression pattern of these hypothetical genes, we cannot rule out that their products are capable of oxidizing catecholamines under certain conditions. However, our current body of evidence points to a non-laccase, non-tyrosinase, and general non-enzymatic mechanism as the responsible melanin-producing factor.
We investigated the cellular localization of the melanin in three selected C. auris strains: CDC 381 which is a non-melanizing strain, CDC 387 which is a strongly melanizing strain, and CDC 388 which is a moderately melanizing strain that produces pigment primarily at 37°C. For some experiments, we included the MMC1 strain that, like CDC 388, is a moderately melanizing strain. Using light microscopy, we observed numerous dark aggregates on the outside of the melanized CDC 388, MMC1, and particularly CDC 387 cells, which tended to have a fluffy appearance and appeared in between areas where cells were clumped together. In addition, the cells themselves appeared darker, and some had large intracellular melanized spots which would appear to correspond to a vacuole. Based on our evidence that melanization occurs extracellularly due to the alkalinization of the supernatant, we believe these dark spots within the vacuole are due to L-DOPA autoxidation within the vacuole following storage under nutrient-deprived conditions. In the CDC 381 strain, these features were minimal to non-existent.
To gain further understanding of the melanin on an ultrastructural level, we used TEM and SEM. In essence, we found that there were electron dense spherical structures on the surface of the melanized C. auris, which were bound to or associated with polysaccharides in the outermost layer of the cell wall, likely β-glucans or mannoproteins, as indicated by the lack of melanin adhesion following the inhibition of β-glucan synthesis with caspofungin. These structures were only present in melanized cells, and they were consistent with previously reported melanin granules (9,19). Interestingly, these structures were not reliably seen intracellularly, and they were significantly smaller than the extracellular melanin structures seen during C. albicans melanization (9). Using SEM, we also saw these spherical particles on the surface of the melanized C. auris strains, especially the CDC 387 strains where the surface was heavily decorated in these structures. The CDC 387 cells had a distinctive phenotype featuring many multivesicular bodies (MVBs) within the cell and merging with the plasma membrane, resulting in secretion of extracellular vesicles. Extracellular vesicles contain protein, lipid, polysaccharide, and nucleic acid cargo that could be important for extracellular functions; secretion could be associated with C. auris resistance to amphotericin B, adhesion to epithelial cells, and survival within macrophages (58,59).
We noticed that the supernatants of the melanized cultures were quite dark, particularly for the CDC 388 and MMC1 strains, which indicated there was secreted melanin. We also made this observation on solid agar, where all the melanizing strains had a halo of melanin around the colonies and the non-melanizing strains did not. The strongly melanizing strains CDC 385, CDC 386, CDC 387, and CDC 389 had the darkest halos of melanin surrounding the colonies. The fungal colonies themselves remained white with no change in pigmentation after 7 days of growth. The notion that the melanin is extracellular and secreted is supported by TEM and SEM results that show melanized structures on the surface of the cells. Using negative staining TEM of the isolated melanin from the supernatant, we saw melanin granules similar to those seen in TEM of whole cells, where the CDC 387 granules were the largest, followed by MMC1 and CDC 388. The CDC 381 granules were the smallest and fewest. When we added the melanized supernatant to non-melanized cells, including to CDC 381, we found that the melanin adhered to the cells and took on the appearance of a melanized cell pellet. These findings indicated that the extracellular melanin could adhere to the outside of the cell wall, suggesting a scheme whereby melanization occurred externally and aggregates of the polymer adhered to the cell wall.
Mechanism of melanin production
Although our data point to a role for the cell wall in melanin adherence, they also show that the ability of the cell wall to host adhering melanin is unrelated to melanin production itself, which appears to be an exclusively extracellular process. First, when L-DOPA was added to the cell-free supernatant of the cultures, we saw that the supernatants from CDC 388 and CDC 387 had melanizing activity whereas the supernatant from CDC 381 did not, indicating that the component responsible for melanization was extracellular. Second, melanin isolated from the culture supernatant of the melanizing CDC 388 strain can adhere to the cell wall of CDC 381 strain cells, which themselves are unable to produce melanin. Third, our ssNMR studies suggest that cell wall melanin adherence is related to the relative proportion of polysaccharides that are found in the cell wall. CDC 387 strain cells, which display robust cell-wall melanin adhesion, were found to have a greater proportion of polysaccharides in comparison to CDC 388 or 381 cells, which were determined to have a similar relative polysaccharide content and also display a similar degree of cell-wall melanin adhesion. Taken together, these findings demonstrate that melanin production and cell-wall melanin adherence are two unrelated processes and that the lack of melanization activity of the CDC 381 strain is not due to an inherent deficiency of the cell wall.
To determine the extracellular factor responsible for melanization, we did a series of assays on the cell-free supernatant. First, we determined that the melanization factor was stable at 100°C, was resistant to proteolytic degradation by trypsin and Proteinase K and was smaller than 3 kDa. These observations together indicated that the melanization component was not a protein, but could potentially be a small molecule. Further, the melanizing ability of the supernatant is not enriched in the extracellular vesicles collected through ultracentrifugation, nor is it protected by EVs. We cannot exclude the possibility that EVs are used as scaffolding for the melanization, as previously found in C. neoformans (60).
However, melanization activity is not lost after treatment with methanol, urea, or SDS detergents. Interestingly, we found that the ability of a strain to melanize correlated directly with the pH of the supernatant within minimal media, where non-melanizing strains had a supernatant pH of ∼5.75 and melanizing strains had a pH ∼6.5. This strong correlation also corresponds to the steep increase in autoxidation of L-DOPA between those pH ranges. We additionally found that artificially adjusting the pH of the supernatant to pH 7 caused all of the supernatants to melanize, whereas adjusting the pH to 5.5 prevented all the supernatants from melanizing, even those from the melanizing strains. These data suggest that the melanization trends reflect the ability of some strains to alter the acidity of the surrounding environment more than others. L-DOPA autoxidation is highly dependent on pH (17,18). L-DOPA has an isoelectric point of pH 6.0, meaning that at pH 6 or above, the L-DOPA is more likely to have a deprotonated amine group, which results in more energetically favorable oxidation, cyclization, and dopachrome formation (18). We found strong evidence that this ability to neutralize the media was due to the production of ammonia by some of the strains. Fungi including C. albicans and C. neoformans are known to produce ammonia to boost their persistence under pH stress (51,61,62). C. auris has been found in environmental reservoirs within marine saltwater marshes (2). Microbes found in marine wetland environmental niches are faced with alkaline stress and, as a result, may be naturally more alkaliphilic (63).
Whereas the autoxidation of catecholamines could occur in the absence of any fungus, we found that the oxidized L-DOPA from the supernatant of the C. auris strains had a different ultrastructure than the autoxidized L-DOPA from the minimal media alone at a neutral pH. This indicated that there are some properties of the supernatant that encourage the autoxidized L-DOPA to organize into specific spherical structures. Based on previous understanding of how melanin interacts with other biological molecules, we hypothesize this melanin scaffold to be polysaccharide, protein aggregates, or perhaps even lipids. The structure of the melanin polymer around this scaffolding could change its biophysical properties. This hypothesis could help to explain why there is significantly more melanin associated with the CDC 387 strain – the strain changes the pH of the supernatant the same as the other strains, but the electron micrographs also show a large number of MVBs and organelles fusing with the plasma membrane of these cells, which would indicate a relative hypersecretion of polysaccharides, proteins, and extracellular vesicles that can subsequently serve as a scaffold for the melanization. Interestingly, the supernatant of the non-melanized CDC 387 strain has a yellow tint to it, which indicates that some molecules are being released in higher amounts compared with the CDC 381 and CDC 388 strains. This pH-based mechanism of fungal melanization differs greatly from other ways in which fungi such as C. albicans produce melanin (9–11). In C. albicans, melanization is mediated by ferroxidases, a class of enzymes that is genetically similar to the melanin-producing enzyme laccase in C. neoformans. The knockout of some ferroxidase genes (FET genes) results in a loss of melanization phenotype.
Implications of C. auris melanization
We found that the C. auris strains, generally, were remarkably hydrophobic, with the cell surface hydrophobicity (CSH) of most strains in the 90-100% range. Comparatively, the CSH of clinical isolates of C. albicans strains ranges from about 2 to 41% (41). In C. albicans, CSH is reportedly associated with increased adhesion to epithelial cells, biofilm formation, resistance to neutrophil-mediated killing, and increased overall virulence (42,64–66). The current findings have implications for how C. auris interacts with hydrophobic surfaces, and how hydrophobicity may contribute to durable biofilm formations within hospital environments and medical equipment. We do not find an association between CSH and ability of the strain to melanize. Since melanin is a hydrophobic polymer, we anticipated that melanization of cultures would enhance CSH. Surprisingly, we found that growth in minimal media with L-DOPA reduced the hydrophobicity of the non-melanizing strain CDC 381 and the strong melanizing strain CDC 387, while the CSH of CDC 388 and MMC1 were virtually unchanged. We hypothesize that the hydrophobic melanin is comparatively less hydrophobic than the hydrophobicity-mediators on the surface of the C. auris cells, so that when the melanin binds to the cell wall, it results in a relative decrease of CSH. In C. albicans, CSH is believed to be mediated by exposure of hydrophobic cell wall mannoproteins (43,67), which could correspond to areas in which melanin is deposited in C. auris (68).
One notable observed feature of the heavily melanized C. auris CDC 387 strain is that it tended to form large aggregates of cells, which were melded together by extracellular melanin, as indicated by light and electron microscopy. This aggregation is notable, as aggregation is a known physical property in some strains of C. auris, outside of the context of melanin. The aggregate phenotype has been hypothesized to function as a way for the fungus to remain within tissues and evade immune clearance, and it may play a role in biofilm formation and maintenance (69–71). If melanization is inducing a sort of aggregative phenotype as our data suggest, this could have similar implications in understanding the role of C. auris melanin in pathogenesis.
The antioxidant properties of melanin are partially responsible for its protective properties (72). Melanized C. auris yeast cells were partially protected against hydrogen peroxide, and this protection was stronger in the strain where melanization is more efficient (CDC 387). This observation is in accordance with the expected properties of melanin pigments (12,53). However, melanin did not confer any protection to C. auris in an in vitro challenge with BMDM. The in vitro killing of C. auris by BMDM was tested at distinct times and, under the evaluated conditions, melanin played no role on protecting the fungus from the phagocytes. The previously described degree of protection from killing of pathogenic fungi conferred by melanin varies considerably (18 % to > 36 %) (73), so it is possible that the pattern observed for C. auris is similar to C. albicans, for which there is no clear association between ability to produce melanin and virulence in mice (9). Supporting the in vitro findings, in vivo experiments using the invertebrate G. mellonella showed that melanin produced by C. auris might not protect the fungus against innate immunity, but we cannot rule out a potential action of melanin to interfere in processes that lead to acquired immunity.
Conclusions

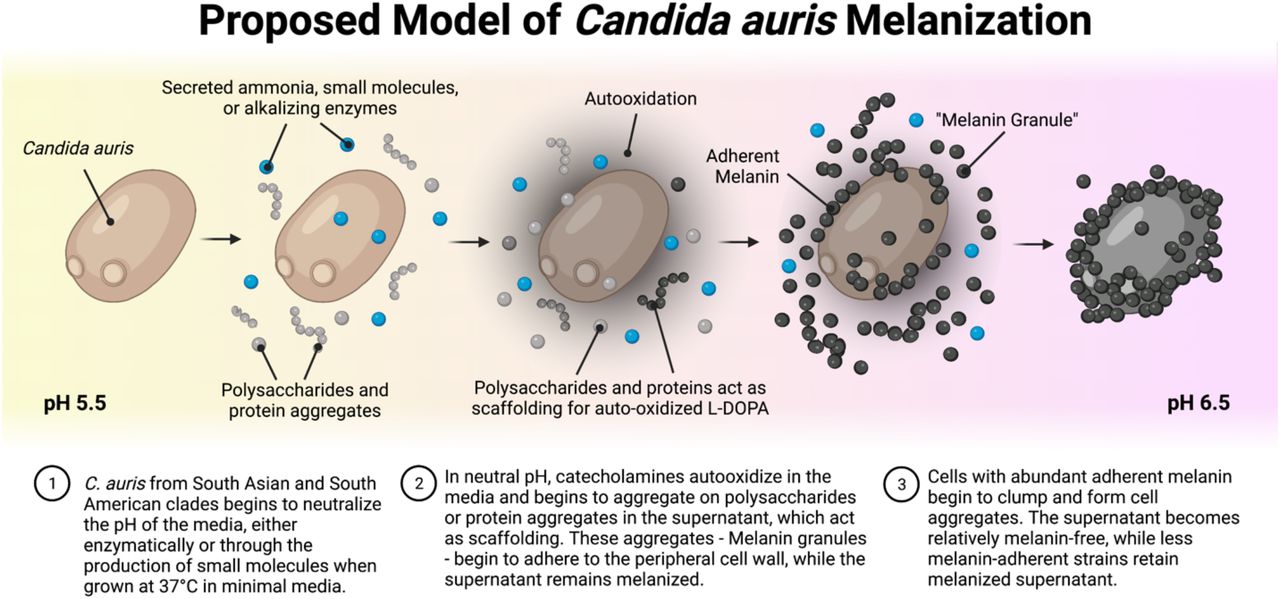

In summary, we found that Clade I, IV, and V strains of C. auris grown with L-DOPA and catecholamine substrates produce melanin extracellularly by alkalinizing the media with ammonia, which promotes non-enzymatic catecholamine oxidation. This extracellular melanin aggregates and binds to the outside of the C. auris cell wall (Summarized in Figure 11). We did not find evidence that the melanin formed by C. auris interferes with the effector mechanisms of innate immune cells, nor does it exhibit an active melanization process. However, our findings leave open the possibility that extracellular alkalinization could be a new mechanism by which fungi can drive the production of melanin in the environment. Not much is known about the environmental niche of C. auris, however, the first environmental isolates have been uncovered and described in the neutral pH marine marshlands off the Andaman Islands in India, and on the surface of non-freshly picked apples in Northern India, all of which have been members of the South Asian Clade I (2,74). It is possible that melanization may play a role in the environmental survival of C. auris, where the fungus is likely to encounter oxidative stressors.
Ammonia is produced by other fungal species and namely in C. albicans: ammonia de-acidifies the extracellular space, is produced during nutrient deprivation, and auto-induces morphologic and metabolic changes (51,62). The production of ammonia and alkalinization of the extracellular milieu in C. auris might have similar roles. C. auris extracellular alkalinization might be the result of adaptations to acidic or stressful environments and aid in fungal survival uncoupled from the melanization process. With future investigations uncovering global environmental niches of C. auris from all strains, better insight can be gained into the biological significance of our findings of clade-specific C. auris ammonia production, alkalinization, and melanization.
Materials and Methods
Candida auris strains and media
All isolates of Candida auris strains were received from the Centers of Disease Control and Prevention Food and Drug Administration Antimicrobial Resistance Isolate Bank (https://www.n.cdc.gov/arisolatebank/Panel/PanelDetail?ID=2), with the exceptions of MMC1 and MMC2, which were previously described clinical isolates (75). CDC 381 is also known as B11220, CDC 387 is also known as B8441, and CDC 388 is also known as B11098. All C. auris strains were first grown in Yeast Peptone Dextrose (YPD) broth at 30°C until they reached stationary phase. Cultures were washed twice and put into Minimal Media (15.0 mM glucose, 10.0 mM MgSO4, 29.4 mM KH2PO4, 13.0 mM glycine, 3.0 M vitamin B1, pH 5.5) at 37°C at 107 cells/ml unless otherwise noted. Cells were grown for 7 days under continuous shaking.
C. auris Melanization in liquid media
All C. auris strains were grown in minimal media as described above, with the addition of melanin precursors to be tested. All compounds used for the melanization substrate assay and ABTS (2,2’-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid) laccase assay were prepared in concentrated stock solutions and added to the culture at a final concentration of 1 mM except for caspofungin, which was added at 0.5 μg/ml final concentration. For the experiments evaluating the temperature dependence of the C. auris strain melanization, cultures were also grown at 30°C for 7 days in minimal media. After 7 d, cultures were scanned with a CanoScan9000F scanner at 600 dpi. Mean Gray Value for each well of culture was determined using the Measure tool on FIJI image processing software (76).
For experiments where cultures were grown on solid agar petri dishes, 20 μl of stationary washed culture were added to minimal media agar with 1 mM of L-3,4-dihydroxyphenylalanine (L-DOPA). Plates were incubated at 37°C for 7 days and imaged with a CanoScan9000F scanner at 600 dpi.
Melanin extraction and electron paramagnetic resonance (EPR)
Melanin was extracted from selected strains of C. auris and one strain of C. neoformans (H99) as described (77). Briefly, after growing for 7 days in minimal medium containing L-DOPA (1 mM), cells were washed with sorbitol/sodium citrate solution and incubated with Novozyme 234 for 1 hour at 30°C. Samples were incubated with guanidine thiocyanate for 1 hour, followed by an incubation with 6 M HCl.
After boiling the solution for 1 hour, the pellets were washed and suspended in PBS. Extracted melanin was examined using a Varian E112 X-Band model spectrometer with a TE102 resonator and a liquid nitrogen finger Dewar vessel to obtain EPR spectra of the collected dark particles suspended in PBS and frozen with liquid nitrogen. The EPR runs were performed with the following parameters that were standardized for our fungal melanin studies as described previously (8): modulation frequency of 9.07 GHz, modulation amplitude of 1.6 G, center field of 3,250.0 G, sweep width of 100.0 G, microwave frequency of 9.1 GHz, microwave power of 1.0 mW, time constant of 0.5 s, and temperature of 77 K.
Extracellular melanin isolation
Cultures grown for 7 days with or without L-DOPA as a substrate for melanization were centrifuged at 4,000 x g for 5 minutes. The supernatant was removed and sterilized through a 0.8 μm syringe filter (Corning, Corning, NY). To measure the melanization of the supernatant, absorbance measurements were performed at 492 nm using a SpectraMax iD5 spectrophotometer. For experiments collecting and analyzing the extracellular melanin particles, the supernatants were then ultracentrifuged at 100,000 x g for 1 hour at 4°C in a Beckman Coulter Optima L-90K UltraCentrifuge. Supernatants were decanted and the melanized pellet was suspended in PBS.
Supernatant melanization activity
To assess phenoloxidase activity of the supernatant, L-DOPA was added to cell-free supernatant from non-melanized cultures. Subsequently, the supernatant was left to incubate for 72 hours at 37° C in darkness. Activity was determined through SpectraMax iD5 spectrophotometer readings at 492 nm taken at 0 and 72 hours, and images were taken using a CanoScan9000F flatbed scanner at a resolution of 600 dpi. For the proteinase assays, supernatants were pre-treated with 1:10 Trypsin (Corning) at 37°C, or with approximately 200 μg/ml Proteinase K (New England BioLabs) at 60°C prior to the addition of L-DOPA. To measure the degree of protection conferred by extracellular vesicles against degradation of potential melanin-producing components, supernatants were pre-treated with 0.01% w/v SDS or 0.1% v/v Triton X-100 (Sigma) with or without Proteinase K. Supernatants were then incubated for one hour at 60°C as described. Heat degradation assays were performed by heating supernatant samples to 100°C for one hour prior to testing for melanization activity.
Light microscopy
C. auris strains were imaged using light microscopy using an Olympus AX70 microscope and 100x objective.
Transmission Electron Microscopy (TEM)
C. auris melanized and non-melanized cells were imaged using TEM as described (26). Briefly, samples were fixed with 2% (w/v) glutaraldehyde in 0.1 M cacodylate at room temperature for 2 h, followed by overnight incubation in 4% (w/v) formaldehyde, 1% (w/v) glutaraldehyde, and 0.1% PBS overnight at 4 °C. Samples were washed, fixed with 1% osmium tetroxide for 90 minutes, washed with dH2O, serially dehydrated in ethanol, and embedded in SPURRS resin. Thin sections, 60 to 90 nm, were cut with a diamond knife on a Leica Ultracut E Ultramicrotome and picked up with 2×1 mm formvar coated copper slot grids. Grids were stained with 2% uranyl acetate (aq) and 0.4% lead citrate before imaging on a Hitachi 7600 TEM at 80 kV. Images were captured with an AMT XR80 CCD (8 megapixels, 16 bit). Secreted melanin was visualized using negative staining, in which 8 μl of sample was placed on negative glow discharged 400 mesh ultra-thin carbon-coated grids (EMS CF400-CU-UL) for 30 s, followed by three quick rinses of Tris-buffered Saline (TBS) and staining with 2.5% uranyl acetate.
Samples were imaged using a Hitachi 7600 TEM Electron Microscope at 80 kV. Images were captured with an AMT XR80 CCD (8 megapixels, 16 bit). Following image acquisition, diameter measurements of the secreted melanin particles were performed using the measurement tool of FIJI image processing software (76).
Scanning Electron Microscopy (SEM)
Briefly, samples were fixed in 2.5% (v/v) glutaraldehyde in 0.1 M sodium phosphate buffer (pH 7.3) overnight at 4 °C. Samples were placed on a poly-L-lysine coated coverslip (0.01 mg/ml, coated for 5 minutes, and rinsed twice in dH2O) for 1 hour, then washed, serially dehydrated in ethanol, chemically dried using hexamethyldisilazane (HMDS) and dried overnight in a desiccator. Samples were then placed on a metal sample stub (EMS aluminum 6mm pin, 12.7 mm diameter) with double sided carbon tape (EMS standard carbon adhesive tabs, 12 mm diameter) and the underside of the coverslip coated with silver paint (EMS silver conductive coating). Samples were coated with 15 nm gold palladium (AuPd), on a Denton Desk III sputter coater before imaging on a ThermoFisher Helios FIB-SEM at 5 kV using an Ion Conversion and Electron (ICE) detector.
Extracellular melanin add-back
Cell-free melanized supernatant was added to a pellet of non-melanized cells from the corresponding strain of C. auris. Samples were mixed at 37°C for 3 h and pelleted at 4,000 x g for 5 minutes. Pelleted cells were imaged compared to control cells treated for 3 hours with the non-melanized supernatant.
Cell wall disruption assays
All cultures were grown in minimal media for 7 days with 1 mM L-DOPA. In addition to the L-DOPA, either 5 mM N-acetylglucosamine (GlcNAc) as previously described (9), 100 μg/ml Calcofluor White as previously described (9), or 50% MIC of Caspofungin based on the CDC resistance profile (40) (Antibiotic Resistance Isolate Bank, Centers for Disease Control and Prevention, Atlanta, GA, USA) were added to the culture at the beginning of the 7 d incubation. Cultures were collected after 7 d; the supernatant and cells were examined under light and electron microscopy as described above.
Preparation of fungal cells for ssNMR analysis
C. auris cells from each of the CDC 387, CDC 388 and CDC 381 strains were grown with and without L-DOPA in separate flasks using the same culture conditions as described above. To verify the ability of C. auris to take up and utilize exogenous GlcNAc for chitin synthesis, an additional culture of CDC 388 cells was prepared in growth medium supplemented with 5 mM 15N-enriched GlcNAc. The cells from all cultures were harvested via centrifugation and the resulting pellets were resuspended in 25 mL deionized water. To heat-kill the cells, the tubes containing these cell suspensions were immersed in a water bath at 65°C for 1 hour. When cooled to room temperature, the heat-killed cells were centrifuged at 3,700 rpm for 30 min at 4°C. The pellets were resuspended in another 25 mL aliquot of deionized water, vortexed vigorously, and again centrifuged. This process was repeated four more times to remove any residual metabolites, cellular debris, or other small molecules. After the fifth wash, the cell pellets were lyophilized for 3 days and subsequently analyzed by ssNMR.
Solid-State NMR spectroscopy
All measurements were carried out on a Varian (Agilent) DirectDrive2 (DD2) instrument operating at a 1H frequency of 600 MHz and equipped with a 1.6-mm T3 HXY fastMAS probe (Agilent Technologies, Santa Clara, CA). The data were acquired on 6-8 mg of lyophilized cell material using a MAS rate of 15.00 ± 0.02 kHz at a spectrometer-set temperature of 25 °C. The 13C DPMAS experiments were conducted with 90° pulse lengths of 1.2 and 1.4 μs for 1H and 13C, respectively; 104-kHz heteronuclear decoupling using the small phase incremental alternation pulse sequence (SPINAL) was applied during signal acquisition. Long recycle delays (50 s) were implemented to obtain spectra with quantitatively reliable signal intensities that allowed the integration of defined spectral regions using the GNU image manipulation program (GIMP) to estimate the relative amounts of carbon-containing constituents in heat-killed intact C. auris cell samples. To verify the uptake of 15N-enriched GlcNAc, 15N cross-polarization (CPMAS) experiments were conducted using pulse lengths of 1.6 and 2.9 μs for 1H and 15N, respectively, a 1.5-ms cross polarization period with a 10% linear ramp, and 78-kHz SPINAL decoupling during acquisition.
pH measurements and supernatant pH alteration
Cultures were grown for 7 days in minimal media at 37°C. Cultures were centrifuged at 4,000 x g for 4 minutes, and the supernatant was filter sterilized with a 0.22 μm PES Filter (Millipore-Sigma). The supernatant pH was determined using a calibrated Fisher Scientific Accumet AB150 pH meter.
Cell-free supernatants were isolated and their pH values measured using a calibrated Fisher Scientific Accumet AB150 pH meter. Samples were split into three groups: unaltered supernatant, supernatant manually adjusted to pH 5.5 with hydrochloric acid (HCl), and supernatant manually adjusted to pH 7 with potassium hydroxide (KOH). Titrations with HCl and KOH were performed using the same pH meter set to continuously read pH. Each sample’s three groups were then treated with 1 mM L-DOPA and incubated at 37°C for 72 hours in darkness. Melanization activity was determined through SpectraMax iD5 spectrophotometer readings at 492 nm and images were taken using the CanoScan9000F flatbed scanner at a resolution of 600 dpi.
Ammonia quantification
Supernatant ammonia concentration was quantified using the commercially available API Ammonia Test Kit (API) according to the manufacturer’s protocol, using the Solutions 1 and 2 from the kit. The sample volumes were scaled down in proportion to the small volumes tested to maintain the established test solution concentrations. A standard curve of ammonia concentrations from 16 ppm to 0.25 ppm was constructed by serially diluting 28% ammonium hydroxide (Sigma) in PBS to enable validation of this modification and colorimetric correlation to known ppm values. In a 48-well plate, 1 drop of both Solution 1 (>60% w/v polyethylene glycol, 1-10% w/v sodium nitroprusside solution, 1-10% w/v sodium salicylate) and Solution 2 (<10% w/v sodium hydroxide, <1% sodium hypochlorite) were added to 625 μl of cell-free supernatant, after which the plate was agitated and left to sit for 5 minutes with a lid on. The color change, from yellow to dark blue-green during the formation of indophenol blue dye, was quantified by reading the absorbance at 680 nm using a SpectraMax iD5 spectrophotometer. In addition, plates were imaged at 600 dpi using a CanoScan9000F flatbed scanner.
Cell Surface Hydrophobicity
Cell surface hydrophobicity was measured by Microbial Adhesion to Hexadecane (MATH) assay as described (78). Briefly, cells were resuspended in PBS to an optical density of 0.2 - 0.4 at 600 nm using a SpectraMax iD5 spectrophotometer. These values were measured in triplicate and recorded as the initial optical density. 3 mL of cells in PBS were added to a glass test tube followed by 400 μl of n-hexadecane. Tubes were covered with parafilm and vortexed on high for 45 seconds each and left to settle for 2 minutes. Aliquots of the aqueous (bottom) layer were carefully removed, and the absorbance at 600 nm was measured as the final optical density value. Hydrophobicity was calculated as: 100*(Initial Value – Final Value)/(Initial Value).
Oxidative stress
Yeast cells grown in the presence or absence of L-DOPA for 7 days at 37 °C were incubated and shaken in RPMI medium buffered with MOPS, with or without 5mM hydrogen peroxide (H2O2) for 3 hours at 37 °C. Cell suspensions were diluted and plated onto Sabouraud-agar plates for colony-forming units (CFU) counting. The cytotoxic effect of H2O2 in each strain was calculated as the number of yeast cells in the presence of H2O2, divided by the yeast count in the absence of H2O2, multiplied by 100 to be expressed as a percentage.
Killing by bone marrow-derived macrophages
Bone marrow cells isolated from C57BL/6 mice were cultivated in RPMI containing 10% of FBS and 20% of L929 supernatant for 7 days with media addition on day 3. At the end of the differentiation time, cells were plated in 96-well plates (105 cells per well) and incubated at 37 °C to achieve adherence.
Macrophages were challenged with C. auris (0.5 × 105 yeast cells per well) that were grown in the presence or absence of 1 mM L-DOPA. In parallel, C. auris was added to wells under the same conditions but without macrophages. After 2 or 24 h, the plates were centrifuged, the supernatant discarded, and the pellets suspended in sterile distilled H2O. The suspensions were diluted and plated onto Sabouraud-agar plates and incubated at 30 °C for 24 h for CFU counting. For each experimental group, the percentage of yeast killing was calculated as: yeast + macrophage group divided by yeast in the absence of macrophages.
Galleria mellonella infection
Groups of 10 insects (250-300 mg) in the final instar larval stage were used. Larvae were injected with melanized or non-melanized yeasts of C. auris (2 × 106 cells in 10 μL) into the haemocoel through the last left pro-leg strains using a Hamilton syringe. For these experiments the strains CDC 381, CDC 387 and CDC 388 were selected. PBS was used as a control. The insects were then placed in sterile Petri dishes and maintained in the dark at 37 °C. The numbers of living larvae were monitored twice daily and recorded for a period of 7 days. Larvae were considered dead if no response to physical stimulus was observed.
