Fatty acid amide hydrolase inhibitors confer anti-invasive and antimetastatic effects on lung cancer cells
1 Institute of Toxicology and Pharmacology, Rostock University Medical Center, Rostock, Germany
Correspondence to:Burkhard Hinz,burkhard.hinz@med.uni-rostock.deAbstract
Inhibition of endocannabinoid degradation has been suggested as tool for activation of endogenous tumor defense. One of these strategies lies in blockade of fatty acid amide hydrolase (FAAH) which catalyzes the degradation of endocannabinoids (anandamide [AEA], 2-arachidonoylglycerol [2-AG]) and endocannabinoid-like substances (N-oleoylethanolamine [OEA], N-palmitoylethanolamine [PEA]). This study addressed the impact of two FAAH inhibitors (arachidonoyl serotonin [AA-5HT], URB597) on A549 lung cancer cell metastasis and invasion. LC-MS analyses revealed increased levels of FAAH substrates (AEA, 2-AG, OEA, PEA) in cells incubated with either FAAH inhibitor. In athymic nude mice FAAH inhibitors were shown to elicit a dose-dependent antimetastatic action yielding a 67% and 62% inhibition of metastatic lung nodules following repeated administration of 15 mg/kg AA-5HT and 5 mg/kg URB597, respectively. In vitro, a concentration-dependent anti-invasive action of either FAAH inhibitor was demonstrated, accompanied with upregulation of tissue inhibitor of matrix metalloproteinases-1 (TIMP-1). Using siRNA approaches, a causal link between the TIMP-1-upregulating and anti-invasive action of FAAH inhibitors was confirmed. Moreover, knockdown of FAAH by siRNA was shown to confer decreased cancer cell invasiveness and increased TIMP-1 expression. Inhibitor experiments point toward a role of CB2 and transient receptor potential vanilloid 1 in conferring anti-invasive effects of FAAH inhibitors and FAAH siRNA. Finally, antimetastatic and anti-invasive effects were confirmed for all FAAH substrates with AEA and OEA causing a TIMP-1-dependent anti-invasive action. Collectively, the present study provides first-time proof for an antimetastatic action of FAAH inhibitors. As mechanism of its anti-invasive properties an upregulation of TIMP-1 was identified.
INTRODUCTION
Cannabinoids have been demonstrated to exert anticarcinogenic effects via multiple mechanisms. Within past years several studies have indicated that, apart from its well-known proapoptotic and antiproliferative properties, cannabinoids are potent anti-invasive and antimetastatic agents in different cancer models (for review see [1]).
Besides activating cannabinoid receptors by administering agonists exogenously, another tool for therapeutical intervention lies in the activation of these receptors by increasing the levels of endocannabinoids locally at pathological foci. This strategy has attracted substantial interest in recent years on the basis of findings showing increased endocannabinoid levels in certain cancer types [2, 3]. It was therefore hypothesized that the endocannabinoid system represents an endogenous tumor defense complex, i.e. cannabinoids produced following the onset of cancer may counteract neoplasia site-specifically (for review see [4]). Thus, selective inhibitors of endocannabinoid degradation may serve as useful and effective tool for activation of the endogenous tumor defense.
One of these strategies lies in inhibition of the enzyme fatty acid amide hydrolase (FAAH), a member of the serine hydrolase family of enzymes that was first identified as the principal catabolic enzyme of the endocannabinoid anandamide (N-arachidonoylethanolamine, AEA) [5]. FAAH is likewise the catabolic enzyme for other fatty acid amides, including N-oleoylethanolamine (OEA) and N-palmitoylethanolamine (PEA) [6]. 2-Arachidonoylglycerol (2-AG), the second major endocannabinoid, can be hydrolyzed by multiple enzymes, including FAAH and monoacylglycerol lipase (MAGL) with about 85% of brain 2-AG hydrolase activity ascribed to MAGL [7].
Several nonselective and selective inhibitors of FAAH have been described meanwhile, including URB597, a relatively selective, irreversible, carbamate-based inhibitor [8–10], and arachidonoyl serotonin (AA-5HT), an endogenous molecule first described as FAAH inhibitor [11]. AA-5HT has later been identified as antagonist at the transient receptor potential vanilloid 1 (TRPV1) thereby posessing analgesic properties [12]. In contrast to the unwanted side effects of conventional CB1 receptor agonists, FAAH inhibitors have been demonstrated to elicit no hypomotility [13] and cataleptic behavioral responses [14]. In addition, FAAH inhibitors have proved inactive in models of drug abuse [15].
In past years, FAAH inhibitor-induced endo-cannabinoid levels were shown to block cancer cell proliferation, including colorectal cancer cells [2] or to inhibit cancer growth in vitro and in vivo, e.g. of rat thyroid-transformed cells (KiMol) [16]. By contrast, the role of FAAH in tumor cell spreading is marginally (invasion) or not at all (metastasis) defined. The limited data published in this field were obtained using prostate carcinoma cells whose invasion was inhibited by 2-AG, a specific FAAH inhibitor or by siRNA targeting FAAH [17, 18]. The present study therefore investigated the impact of two FAAH inhibitors (URB597, AA-5HT) and four FAAH substrates (AEA, 2-AG, OEA, PEA) on lung cancer cell metastasis and invasion. Here we provide evidence for a pronounced antimetastatic action of both FAAH inhibitors that was mimicked by the FAAH substrates. Moreover, upregulation of tissue inhibitor of matrix metalloproteinases-1 (TIMP-1) was identified as molecular mechanism underlying the anti-invasive mechanism of both FAAH inhibitors.
RESULTS
Impact of FAAH inhibitors on levels of endocannabinoids and endocannabinoid-like substances
To prove the efficacy of the two FAAH inhibitors, AA-5HT and URB597, on the production of endocannabinoids and endocannabinoid-like substances by lung tumor cells, an LC-MS method was established allowing the simultaneous quantification of the FAAH substrates AEA, 2-AG, OEA and PEA [19]. Analyses of cell lysates from FAAH inhibitor-treated cells confirmed significantly increased intracellular levels of diverse FAAH substrates in the presence of either 10 μM AA-5HT or 10 μM URB597 as compared to vehicle (Table 1).
| A549 | H460 | |||||||
|---|---|---|---|---|---|---|---|---|
| Concentration FAAH substrate (pmol/mg protein) | Concentration FAAH substrate (pmol/mg protein) | |||||||
| AEA | 2-AG | OEA | PEA | AEA | 2-AG | OEA | PEA | |
| Vehicle | 0.80 ± 0.12 | 8.47 ± 1.43 | 3.88 ± 0.39 | 0.58 ± 0.13 | 0.89 ± 0.13 | 48.51 ± 5.80 | 6.84 ± 0.27 | 0.95 ± 0.19 |
| AA-5HT (10 μM) | 1.57 ± 0.21** | 16.18 ± 1.77* | 6.04 ± 0.75 | 0.99 ± 0.14 | 2.32 ± 0.41** | 46.15 ± 5.34 | 13.17 ± 1.16*** | 2.08 ± 2.02** |
| URB597 (10 μM) | 1.36 ± 0.11* | 19.93 ± 3.24** | 11.10 ± 2.07** | 1.52 ± 0.33* | 1.45 ± 0.22 | 89.18 ± 7.34*** | 12.76 ± 0.86*** | 1.56 ± 0.24 |
Impact of FAAH inhibitors and FAAH substrates on tumor cell metastasis in nude mice

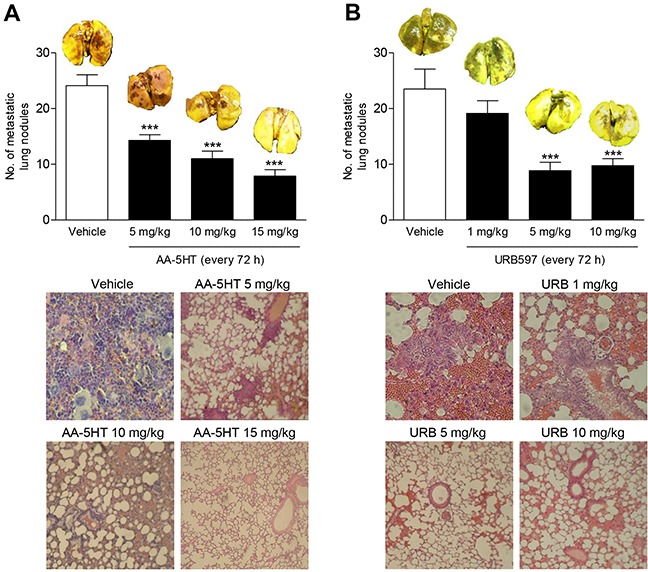

To assess the impact of FAAH inhibitors on experimental metastasis, athymic nude mice were given intravenous injections of A549 lung cancer cells followed by a 4-week administration of AA-5HT and URB597, respectively. According to Figure 1A, AA-5HT caused a dose-dependent antimetastatic action. Thus, the numbers of metastatic nodules were significantly reduced in lungs of animals that were treated with AA-5HT at doses ≥ 5 mg/kg every 72 h. In case of URB597 a maximal reduction of metastasis was observed at a dose of 5 mg/kg, whereas no further reduction was observed after administration of 10 mg/kg (Figure 1B).

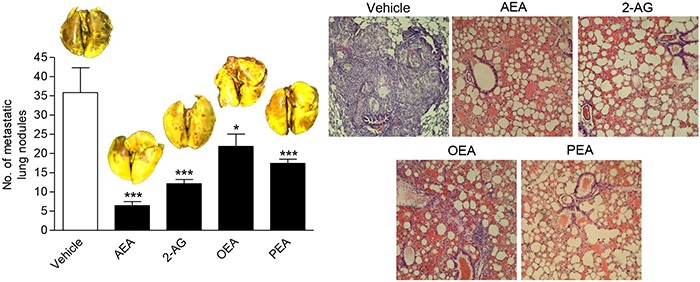

In addition, an animal experiment using the endocannabinoids/endocannabinoid-like substances upregulated upon FAAH inhibition revealed an inhibition of metastasis by intraperitoneally injected AEA, 2-AG, OEA and PEA with AEA exhibiting the most pronounced antimetastatic effect (Figure 2).
Impact of FAAH inhibitors on tumor growth in xenografted nude mice

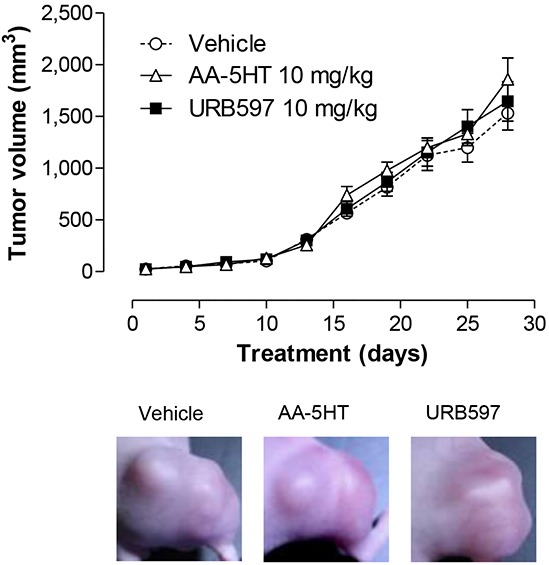

To examine whether the antimetastatic effects of FAAH inhibitors on lung tumor cell metastasis were accompanied by tumor-regressive effects as shown for cannabidiol recently [20–22], the impact of AA-5HT and URB597 on the growth of tumors in A549-xenografted nude mice was investigated next. However, according to Figure 3, neither AA-5HT nor URB597 were found to reduce the tumor volume as compared to vehicle-treated animals.
Impact of FAAH inhibitors on tumor cell invasion and TIMP-1 expression

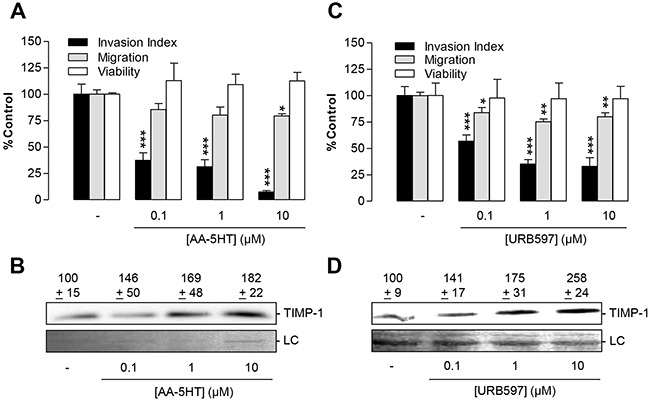

To address a potential mechanism underlying the antimetastatic action of AA-5HT and URB597, the in vitro effect of either FAAH inhibitor on lung cancer cell invasion and levels of TIMP-1, an established anti-invasive mediator [23–25], was investigated next. In fact, both compounds were shown to confer a concentration-dependent anti-invasive (Figure 4A, 4C, black bars) and TIMP-1-inducing action (Figure 4B, 4D). In agreement with the protein data, increased TIMP-1 mRNA levels were assessed following a 48-h incubation with either FAAH inhibitor: AA-5HT (10 μM), 121% ± 11% vs. vehicle (100% ± 5%), means ± SEM of n = 20-21 experiments, P = 0.0886 vs. vehicle; URB597 (10 μM), 141% ± 11% vs. vehicle (100% ± 6%), means ± SEM of n = 21 experiments, **P < 0.01 vs. vehicle, Student's t test. However, compared to the densitometric analyses of the protein measurement by Western blots, the induction of TIMP-1 mRNA appeared rather weak.
Decreased invasion by both FAAH inhibitors was associated with a much smaller, but significant (AA-5HT at 10 μM, URB597 at 0.1 to 10 μM) decrease of migration through membranes that were not coated with Matrigel (Figure 4A, 4C, grey bars). On the other hand, cellular viability assessed under comparable conditions (5 × 105 cells per 500 μl per well of a 48-well plate) was virtually unaltered in the presence of either FAAH concentration tested (Figure 4A, 4C, open bars).

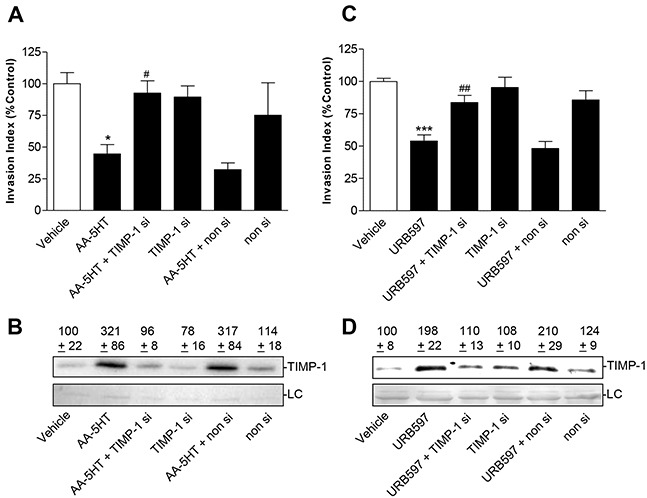

Effect of TIMP-1 knockdown on the anti-invasive action of FAAH inhibitors
To investigate a causal link between the FAAH inhibitor-mediated TIMP-1 induction and the accompanied decreased invasion, a specific siRNA targeting TIMP-1 was tested for its impact on FAAH-inhibitor-induced TIMP-1 expression and inhibition of invasiveness. According to previous investigations by our group, RNA interference with 0.25 μg/ml TIMP-1 siRNA elicited a reduction of cannabinoid-stimulated TIMP-1 expression without substantially affecting basal TIMP-1 expression [26, 27]. As shown in Figure 5A, 5C, knockdown of TIMP-1 expression led to an almost complete inhibition of the anti-invasive effect of either FAAH inhibitor, whereas cultures treated with a non-silencing siRNA control exhibited no significantly altered invasion patterns as compared to controls treated with transfection agent only. Analysis of TIMP-1 levels confirmed a complete (AA-5HT) or almost complete (URB597) inhibition of FAAH inhibitor-stimulated TIMP-1 formation in cells incubated with FAAH inhibitor and additionally transfected with TIMP-1 siRNA (Figure 5B, 5D). Again, the non-silencing control left TIMP-1 levels upregulated by either FAAH inhibitor virtually unaltered.

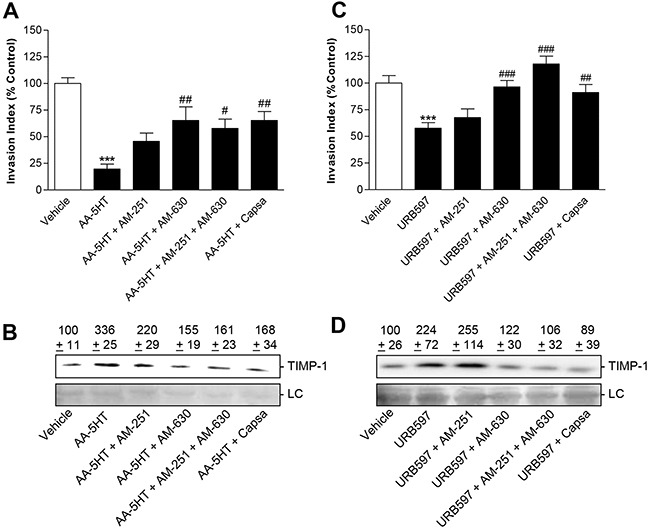

Impact of cannabinoid receptor- and TRPV1 antagonists on the anti-invasive and TIMP-1-inducing action of FAAH inhibitors
Recently, the expression of the cannabinoid receptors CB1 and CB2 as well as of TRPV1 was assessed in various lung cancer cell lines (A549, H358, H460) as well as primary lung cancer cells by Western blot analyses of membrane fractions [21]. To investigate whether the anti-invasive action elicited upon FAAH inhibition was a result of activation of either of these receptors, the impact of antagonists to CB1 (AM-251), CB2 (AM-630) and TRPV1 (capsazepine) on invasiveness and TIMP-1 expression by A549 cells was investigated next. All antagonists were used at a concentration of 1 μM, which has been reported to be within the range of concentrations inhibiting CB1-, CB2- and TRPV1-dependent events [20, 26–31].
In these experiments, antagonists to the CB2 receptor and to TRPV1 suppressed the anti-invasive action of AA-5HT and URB597 in A549 cells in a statistically significant manner (Figure 6A, 6C). In line with this notion, the same receptor antagonists diminished increased TIMP-1 protein levels in cells incubated with the respective FAAH inhibitor (Figure 6B, 6D). In case of URB597, the inhibitory effect of AM-630 on both invasion and TIMP-1 was even increased, when cells were incubated with a combination of CB2 (AM-630) and CB1 (AM-251) antagonists (Figure 6C, 6D).
Impact of FAAH knockdown on tumor cell invasion – role of cannabinoid-activated receptors

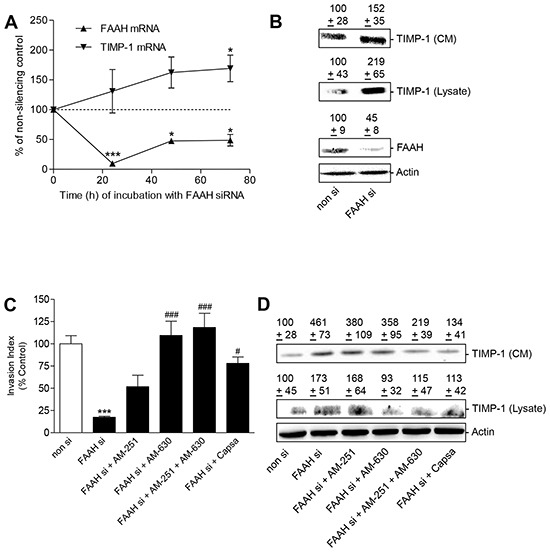

To exclude unspecific effects of the FAAH inhibitors, A549 cells were tested for the effect of FAAH knockdown on cell invasion and TIMP-1 expression using siRNA. As shown in Figure 7, knock-down of FAAH by specific siRNA was associated with a profound inhibition of FAAH expression and increased TIMP-1 expression on both mRNA (Figure 7A) and protein level (Figure 7B). As compared to the substantial downregulation of FAAH mRNA in response to FAAH siRNA, the subsequent induction of TIMP-1 mRNA occurred delayed reaching statistical significance even following a 72-h incubation with FAAH siRNA (Figure 7A). In line with the results obtained from experiments using FAAH inhibitors reported before, the anti-invasive effect of FAAH siRNA became significantly reversed following single blockade of CB2 or TRPV1 as well combined blockade of CB1 and CB2 (Figure 7C). By contrast, in the presence of a non-silencing siRNA control, none of the receptor antagonists did alter basal invasiveness significantly. The respective invasion rates were as follows: non-silencing siRNA, 100% ± 11%; non-silencing siRNA + AM-251 (1 μM), 96% ± 8%; non-silencing siRNA + AM-630 (1 μM), 99% ± 11%; non-silencing siRNA + AM-251 (1 μM) + AM-630 (1 μM), 96% ± 14%; non-silencing siRNA + capsazepine (1 μM), 78% ± 8%, means ± SEM of n = 4 experiments. A significant difference versus the non-silencing siRNA control was not determinable for any treatment group using ANOVA plus post hoc Bonferroni test.
In line with the invasion data, receptor antagonists to CB2 or TRPV1 diminished FAAH siRNA-induced TIMP-1 protein levels in cell culture media (Figure 7D, upper blot). Inhibition of TIMP-1 expression by FAAH siRNA was likewise found when analyzing cellular lysates with CB2 blockade conferring a complete and combined CB1/CB2 blockade or TRPV1 antagonism eliciting an almost complete reversal of TIMP-1 increases (Figure 7D, lower blot).
Impact of the FAAH substrates AEA, 2-AG, OEA and PEA on tumor cell invasion and TIMP-1 levels

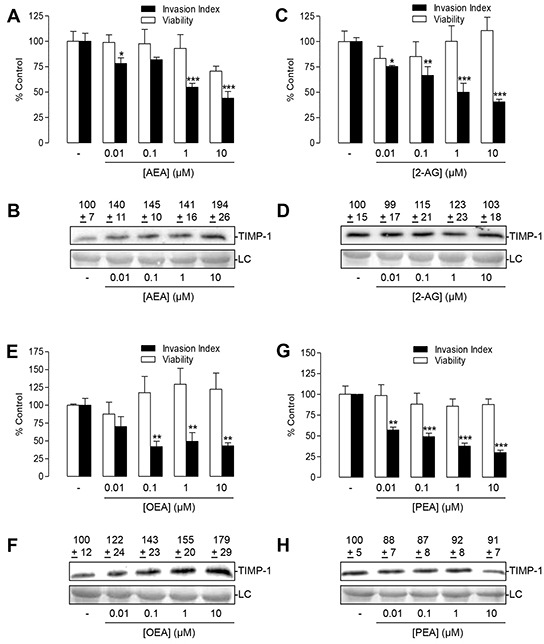

Based on the detected elevation of endocannabinoids and endocannabinoid-like substances in FAAH inhibitor-treated lung cancer cells, a potential anti-invasive and TIMP-1-upregulating effect of exogenously added AEA, 2-AG, OEA and PEA was investigated next. Analysis of AEA, 2-AG, OEA and PEA, tested in a range from 0.01 to 10 μM in A549 cells, revealed a concentration-dependent anti-invasive effect of either FAAH substrate (Figure 8A, 8C, 8E, 8G, black bars). Cellular viability measured under comparable conditions (5 × 105 cells per 500 μl per well of a 48-well plate) did not reveal statistically significant changes in the presence of either FAAH substrate (Figure 8A, 8C, 8E, 8G, open bars).
However, a concentration-dependent upregulation of TIMP-1 protein levels was only observed in culture supernatants of cells incubated for 72 h with AEA (Figure 8B) and OEA (Figure 8F). On the other hand, PEA (Figure 8H) did not upregulate TIMP-1 levels and 2-AG (Figure 8D) exhibited only a weak TIMP-1 increase.

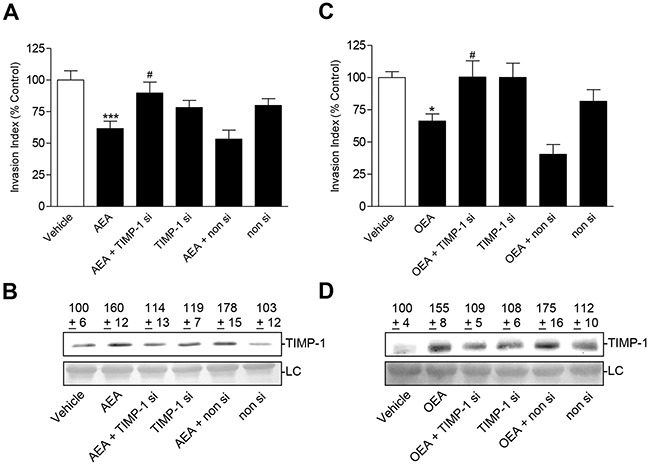

As shown for the FAAH inhibitors before, knockdown of upregulated TIMP-1 expression (Figure 9B, 9D) led to a significant inhibition of the anti-invasive effect of AEA (Figure 9A) and OEA (Figure 9C). Again, invasion of cultures treated with a non-silencing siRNA control did not significantly differ from invasion of cells treated with transfection agent only (Figure 9A, 9C).
Impact of FAAH inhibitors on invasion and TIMP-1 induction in other lung cancer cells

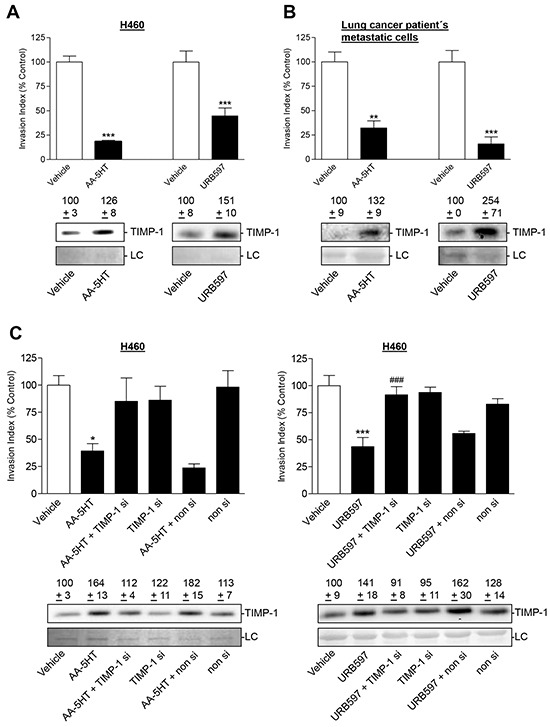

To exclude that the demonstrated effects are restricted to A549 cells, key experiments were also performed in other human lung cancer cells. Like in A549, incubation of H460 or lung cancer patient's metastatic cells with either FAAH inhibitor resulted in a profound suppression of invasion through Matrigel-coated transwell plates (Figure 10A, 10B, upper panels). Decreased invasiveness was accompanied by increased TIMP-1 secretion (Figure 10A, 10B, Western blots, lower panels). RNA interference experiments revealed transfection of H460 with TIMP-1 siRNA to cause inhibition of both anti-invasive (Figure 10C, upper panels) as well as TIMP-1-upregulating effects of FAAH inhibitors (Figure 10C, Western blots, lower panels), whereas a non-silencing control was virtually inactive in this respect.
DISCUSSION
Taken into account that death from almost all fatal cancer diseases results from metastasis, there is currently a clinical need for new pharmacotherapeutical options to treat malignant cancers. On the basis of data obtained from animal experiments published during the last decade, cannabinoids have gained interest as a considerable option for the treatment of metastatic cancers (for review see [1]).
The present study provides first-time proof for an antimetastatic action of FAAH inhibitors with a substantial 67% and 62% inhibition of metastasis following repeated administration of 15 mg/kg AA-5HT and 5 mg/kg URB597, respectively. Although a bench-to-bedside conversion remains to be elucidated in clinical studies, a literature search revealed the observed antimetastatic effect of FAAH inhibitors to be comparable to that of commonly used chemotherapeutic drugs. Accordingly, taxol elicited a 35% reduction of breast cancer metastasis in lungs of mice [32], 5-fluorouracil caused an approximate bisection of the total number of peritoneal nodules in a mouse metastasis model using esophageal squamous carcinoma cells [33], and cisplatin in 2 of 5 animals failed to inhibit metastasis in an orthotopic metastatic nude mouse model of oral tongue squamous cell carcinoma [34]. In addition, the effect of FAAH inhibition on tumor metastasis of comparable lung cancer models was even superior to thalidomide [35]. With respect to other cannabinoids, previous investigations of our group using the same experimental model as in the present study revealed an 84% [27] or 52% [21] inhibition of lung cancer metastatic nodules in athymic nude mice treated with 5 mg/kg cannabidiol, a non-psychoactive phytocannabinoid.
On the other hand, a tumor-regressive action in A549-xenografted nude mice as shown for cannabidiol recently [20–22] was not observed with AA-5HT and URB597. In line with this finding, URB597, given at 1 mg/kg every third day for three weeks [36] or at 10 mg/kg daily for six days [37], failed to suppress tumor growth in mice xenografted with H460 lung cancer [36] and melanoma cells [37], respectively. In these studies inhibition of tumor growth was even observed when URB597 was combined with a synthetic analogue of AEA [36] or with PEA [37]. On the other hand, Bifulco et al. [16] using athymic mice xenografted with rat thyroid transformed (KiMol) cells reported a tumor-regressive action of AA-5HT, given at repeated doses of 5 mg/kg, implying a tumor cell-specific action of this FAAH inhibitor.
To address a potential mechanism underlying the antimetastatic action of FAAH inhibitors, the anti-invasive properties of AA-5HT and URB597 were focussed on in further experiments. As a result of these approaches, both FAAH inhibitors were shown to confer anti-invasive effects via upregulation of the matrix metalloproteinase (MMP) inhibitor TIMP-1. There are several lines of evidence supporting this notion. First, either FAAH inhibitor caused a concentration-dependent anti-invasive action that was accompanied by a likewise concentration-dependent upregulation of TIMP-1. Noteworthy, none of the FAAH inhibitors tested elicited a cytotoxic response on A549 under similar conditions, thus excluding an unspecific toxicity-related phenomenon. Second, post-transcriptional knock-down of FAAH inhibitor-induced TIMP-1 expression by specific siRNA was found to abrogate decreased invasiveness, thereby substantiating TIMP-1 to mediate the anti-invasive action of FAAH inhibitors. Third, FAAH was proven to be functionally involved in invasiveness and TIMP-1 expression by findings demonstrating an anti-invasive and TIMP-1-upregulating impact of FAAH knockdown with the respective siRNA. Fourth, anti-invasive and TIMP-1-upregulating properties of AA-5HT and URB597 were confirmed in another lung tumor cell line, H460, as well as in metastatic cells obtained from resection of brain metastasis of a patient with non-small cell lung cancer (NSCLC), indicating the observed effects to be not restricted to one cell line.
In addition to these mechanistic insights, there are several lines of evidence indicating biologically active FAAH substrates to confer the effects of FAAH inhibitors shown here. Thus, LC-MS analyses revealed increased levels of diverse FAAH substrates in A549 and H460 cells incubated with either FAAH inhibitor. Following administration to nude mice or addition to A549 cells, the FAAH substrates AEA, 2-AG, OEA and PEA mimicked the antimetastatic and anti-invasive action of FAAH inhibitors. Finally, a complete or partial reversal of the anti-invasive and TIMP-1-upregulating action of either FAAH inhibitor or FAAH siRNA was achieved when cannabinoid receptors (CB1, CB2) or TRPV1 were blocked with specific antagonists. Concerning the contribution of particular FAAH substrates, it is tempting to speculate that AEA and OEA, both mimicking the concentration-dependent increase of TIMP-1 by the FAAH inhibitors, may play a pivotal role in this response. In line with this notion, a knockdown of upregulated TIMP-1 expression by either FAAH substrate led to inhibition of the anti-invasive effect of AEA and OEA. In contrast to AEA and 2-AG, OEA as well as PEA do not bind to the cannabinoid receptors CB1 and CB2, but share an activation of TRPV1 with the two endocannabinoids. However, given that the FAAH substrates 2-AG and PEA likewise suppressed cancer cell invasion without (PEA) or only weakly (2-AG) increasing TIMP-1 following a 72-h incubation, additional anti-invasive mechanisms of FAAH inhibitors appear feasible.
As a matter of fact, the impact of endocannabinoid signaling on tumor cell invasion is poorly defined. A few data published in this field indicate an anti-invasive action of 2-AG in prostate carcinoma cells [17, 18] which contain comparatively high 2-AG and low AEA levels [17]. In addition, anti-invasive properties on prostate carcinoma cells have been described for CAY10401, a specific FAAH inhibitor, and for FAAH siRNA [18]. The present study therefore provides first-time proof for a mechanism underlying the anti-invasive action of an FAAH inhibitor. The observation that TIMP-1 plays a pivotal role in this response is corroborated by several investigations that found a correlation between cancer cell invasion and decreased TIMP-1 levels [23–25]. The inhibitory action of TIMPs on collagen-degrading MMPs determines the proteolytic activity of tumor tissues during cancer progression, thereby regulating tumor cell invasion, metastasis and angiogenesis [38, 39]. The hypothesis of TIMP-1 as crucial inhibitor of proteolytic properties conferring the anti-invasive action is substantiated by our findings showing FAAH inhibitors to only slightly inhibit the migration of A549 cells through uncoated Boyden chambers. Concerning the impact of cannabinoids on cancer cell spreading, previous findings of our group indicate the anti-invasive effects of several cannabinoids, including R(+)-methanandamide, Δ9-tetrahydrocannabinol as well as cannabidiol to be causally linked to TIMP-1 induction via a mechanism involving activation of cannabinoid receptors and TRPV1 [21, 26, 27].
While performing this study, another investigation was published showing no impact of URB597 (0.2 μM) and Met-F-AEA (10 μM), a stable AEA analogue, on the invasion of lung cancer cells that was induced by epidermal growth factor [36]. In view of this data which are differing from the outcome of the present study, it is conceivable that the anti-invasive action of URB597 and AEA depends on details of the experimental setting such as the activation status of the cancer cells.
Collectively, the present study provides the first evidence for an antimetastatic action of FAAH inhibitors as well as for a TIMP-1-dependent mechanism underlying its anti-invasive properties. In view of current clinical demands, a further research on the antimetastatic properties of these substances and its endogenous substrates may open an exciting field in search for novel treatment options for malignant cancers.
MATERIALS AND METHODS
Materials
AA-5HT, 2-AG, AM-251, AM-630, OEA, PEA and URB597 were obtained from Biomol GmbH (Hamburg, Germany). AEA was purchased from Enzo Life Sciences GmbH (Lörrach, Germany). Dimethyl sulfoxide (DMSO), ethylenediaminetetraacetic acid (EDTA), glycerol, glycine, hydrogen peroxide (H2O2), sodium chloride (NaCl), Tris hydrocloride (Tris-HCl) and Tris ultrapure were obtained from AppliChem (Darmstadt, Germany). 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) was bought from Ferak (Berlin, Germany). Aprotinine, bovine serum albumin, capsazepine, HCl, leupeptine, luminal, orthovanadate, para-coumaric acid, para-formaldehyde, phenylmethylsulfonyl fluoride (PMSF) and Triton® X-100 were from Sigma (Taufkirchen, Germany). Dulbecco's modified eagle medium (DMEM) with 4.5 g/l glucose and with L-glutamine was provided by Lonza (Cologne, Germany). Fetal calf serum (FCS) and penicillin-streptomycin were purchased from Invitrogen (Darmstadt, Germany) and phosphate-buffered saline (PBS) was provided by PAN Biotech (Aidenbach, Germany). Milk powder was obtained from Bio-Rad Laboratories GmbH (Munich, Germany). Acrylamide (Rotiphorese® Gel 30) was obtained from Carl Roth GmbH (Karlsruhe, Germany). Pure standards for LC-MS analysis of AEA, 2-AG, OEA, PEA and AEA-d8 were purchased from Cayman Chemical (Ann Arbor, MI, USA).
Cell culture
A549 and H460 lung carcinoma cells were maintained in DMEM supplemented with 10% heat-inactivated FCS, 100 U/ml penicillin and 100 μg/ml streptomycin. Lung cancer patient's metastatic cells were obtained from resection of brain metastasis of a 67-year-old male Caucasian with NSCLC with the procedure of cell preparation described recently [21]. The patient had been informed about the establishment of cellular models from its tumor and had given informed consent in written form. For these experiments, cells were passaged 5–7 times without intermediate freezing steps in DMEM containing 20% FCS and 100 U/ml penicillin and 100 μg/ml streptomycin. The procedure was approved by the local Ethics Committee.
All incubations were performed in serum-free DMEM. PBS was used as vehicle for test substances with a final concentration of 0.1% (v/v) DMSO (for AA-5HT, URB597, AM-251, AM-630, capsazepine) or 0.1% (v/v) ethanol (for AEA, 2-AG, OEA, PEA). PBS containing the respective concentration of DMSO or ethanol was used as vehicle control.
Matrigel invasion assay
The invasiveness of cells was quantified using a modified Boyden chamber technique with Matrigel-coated membranes according to the manufacturer's instructions (BD Biosciences, Oxford, UK) as described recently [26, 27, 40]. In this assay, cells must overcome a reconstituted basement membrane by proteolytic degradation of a Matrigel layer and active migration. In brief, the upper sides of the transwell inserts (8-μm pore size) were coated with 28.4 μg Matrigel per insert in a 24-well plate format. Cells were used at a final concentration of 5 × 105 cells per well in a volume of 500 μl serum-free DMEM in each insert and treated with test substances or vehicles for the indicated times. DMEM containing 10% FCS was used as a chemoattractant in the companion plate. Following incubation in a humidified incubator at 37°C and 5% CO2 for the indicated times, the non-invading cells on the upper surface of the inserts were removed with a cotton swab, and viability of invaded cells on the lower surface was measured by the colorimetric WST-1 test (4-[3-(4-Iodophenyl)-2-(4-nitrophenyl)-2H-5-tetrazolio]-1.3-benzene disulfonate; Roche Diagnostics, Mannheim, Germany). For calculation of migration, the viability of cells on the lower side of uncoated invasion chambers was determined by the WST-1 test. Invasion was expressed as the invasion index, which is calculated as the absorbance at 450 nm with a reference filter at 690 nm of cells that invaded through Matrigel-coated Boyden chambers divided by absorbance of cells that migrated through uncoated control inserts with equal treatment ([invasion/migration] x 100%).
Analysis of cytotoxicity
To exclude the possibility that the anti-invasive action of FAAH inhibitors and its substrates was an unspecific cytotoxicity-related phenomenon, cell viability was analyzed after exposure with either substance. To match the conditions of the invasion assays, cells were seeded into 48-well plates at 5 × 105 cells per well in a volume of 500 μl DMEM per well. Thereafter, cells were immediately treated with test substance or vehicle for another 72 h. Viability was measured subsequently using the WST-1 test (Roche Diagnostics).
Quantitative reverse-transcriptase polymerase chain reaction (RT-PCR) analysis
Cells were seeded into 24-well plates at a density of 1 × 105 cells per well and were grown for 24 h in DMEM containing 10% FCS. Following incubation with the respective compound or its vehicle for the indicated times, cell culture media were removed and cells were lysed for subsequent RNA isolation using the RNeasy total RNA Kit (Qiagen, Hilden, Germany). β-Actin- (internal standard), FAAH- and TIMP-1 mRNA levels were determined by quantitative real-time RT-PCR as described [41]. Primers and probes for human β-actin, FAAH and TIMP-1 were TaqMan® Gene Expression Assays (Applied Biosystems, Darmstadt, Germany).
Western blot analysis
TIMP-1 was determined in cell culture media collected from upper Boyden chambers, except Figures 4B, 5B, and Figure 7. In Figure 4B and 5B, TIMP-1 was determined using culture media of cells seeded at a density of 2 × 105 cell per well of 48-well plates in DMEM containing 10% FCS. After 24 h, cells were incubated with test substances or vehicles. For Western blot analyses of cell lysates (Figure 7B and 7D, lower blots) and cell culture media (Figure 7B, upper blot), 2 × 105 cells were seeded into 6-well plates and treated using the protocol indicated under SiRNA transfections. Following incubation, cell culture media were obtained to analyse TIMP-1 release and cells were used to analyse TIMP-1, FAAH and β-actin from cell lysates. For analyses of TIMP-1 release indicated in Figure 7D, upper blot, cell culture media was used from cells seeded at a density of 5 × 105 cells per well in 24-well plates and treated as described under SiRNA transfections. In transfection experiments for Western blot analyses presented in Figure 7, cells were retransfected in 500 μl of serum-free DMEM in 24-well plates (Figure 7D, upper blot) or 1 ml serum-free DMEM in 6-well plates (Figure 7B and 7D, lower blots) containing the same amounts of siRNA or non-silencing siRNA to provide constant transfection conditions.
In case of lysate analyses, cells were washed, harvested, lysed in solubilization buffer (50 mM HEPES, pH 7.4; 150 mM NaCl; 1 mM EDTA; 1% (v/v) Triton® X-100; 10% (v/v) glycerol; 1 mM PMSF; 1 μg/ml leupeptin; 0.5 mM orthovanadate; and 10 μg/ml aprotinin), homogenized by sonication, and centrifuged at 10,000 g for 5 min. Supernatants were used for Western blot analysis.
Total protein in the cell lysates and the cell culture medium was measured using the Pierce® bicinchoninic acid (BCA) protein assay kit (Thermo Scientific, Braunschweig, Germany). Denatured proteins were separated on a 10% sodium dodecyl sulfate-polyacrylamide gel (Applichem). Following transfer to nitrocellulose and blocking of the membranes with 5% milk powder, blots were probed with specific antibodies raised to TIMP-1 (Oncogene Research Products, San Diego, CA, USA), FAAH (Abcam, Cambridge, UK) or β-actin (Sigma). Membranes were probed with horseradish peroxidase-conjugated Fab-specific anti mouse IgG (New England BioLabs, Frankfurt, Germany) for detection of TIMP-1, FAAH and β-actin.
Densitometric analysis of band intensities was achieved by optical scanning and quantifying using the Quantity One 1-D Analysis Software (Bio-Rad Laboratories GmbH, Munich, Germany). Vehicle controls were defined as 100% for evaluation of changes in protein expression. To ensure that equal amounts of proteins of the cell culture media were loaded in the respective lanes and transferred to the membranes, proteins on Western blot membranes were stained with Ponceau Red (Carl Roth, Karlsruhe, Germany). To ascertain equal protein loading in Western blots of cell culture medium, a band with a size of ~ 65 kDa that appeared unregulated is shown as a loading control for protein analysis of cell culture medium. To ascertain equal protein loading in Western blots of cell lysates in Figure 7, membranes were probed with an antibody raised to β-actin. Densitometric values of TIMP-1 and FAAH obtained from analyses of cell lysates were normalized to those of Δ-actin.
SiRNA transfections
Cells were transfected with small-interfering (si) RNA targeting TIMP-1 or FAAH (Qiagen) using RNAiFect® as transfection reagent (Qiagen) or nonsilencing negative control RNA (Eurogentec, Köln, Germany). Target sequences were 5′-CAAGGCCCAACTAACAGTCAA-3′ for TIMP-1 siRNA and 5′-TCCCATCTTTCTTCCGGACAA-3′ for FAAH siRNA. A BLAST search revealed that the sequences selected did not show any homology to other known human genes. Transfections were performed according to the manufacturer's instructions.
For invasion assays, cells grown to confluence were transfected with siRNA or non-silencing siRNA as negative control with an equal ratio (w/v) of RNA to transfection reagent for 24 h in medium supplemented with 10% FCS. Subsequently, cells were trypsinised, centrifuged at 200 x g, resuspended to a final density of 5 × 105 cells in 500 μl of serum-free DMEM per insert containing the same amounts of siRNA or non-silencing siRNA to provide constant transfection conditions, and seeded for invasion analysis as described above. For Western blot analyses indicated in Figure 7, cells received the second transfection without trypsinization.
LC-MS analyses
A549 and H460 cells were seeded in Petri dishes with a 10 cm diameter at a density of 2 × 106 cells per Petri dish and grown at 37°C in DMEM supplemented with 10% FCS, 100 U/ml penicillin and 100 μg/ml streptomycin. After 24 h, cells were washed once with PBS and incubated in serum-free DMEM with vehicle, 10 μM AA-5HT or 10 μM URB597 for another 6 h. For 1 sample (vehicle or FAAH inhibitor), 6 Petri dishes were used. Subsequently, cells were harvested by scraping and cell pellets obtained after centrifugation (10 min, 2000 x g, 4°C) were frozen in liquid nitrogen and stored at −80°C prior to analysis. For determination of endocannabinoids, cell pellets were further resuspended in 1 ml of 20 mM Tris-HCl buffer (pH 6.8) spiked with 20 ng/ml of AEA-d8 and lysed using a Sonopols U-tip sonifier (Bandelin, Berlin, Germany) 3 times with a 15 × 5-s pulse at 75% power followed by a 60-s pause. The lysates were transferred to ice-cold screw-capped glass tubes. In parallel with standard solutions, samples were extracted and analysed as described recently [19]. Briefly, extracted samples (30 to 60 μl) were analysed on a Waters HPLC 2695 Separation Module using a Multospher 120 C18 column 125 × 2 mm, 5-μm particle size (CS-Chromatographie Service GmbH, Langerwehe, Germany) coupled with a guard column (20 × 2 mm, 5-μm particle size). Endocannabinoids and endocannabinoid-like substances were resolved using the mobile phase A (water containing 0.2% formic acid) and the mobile phase B (acetonitrile/2-propanol [60:40, v/v] containing 0.2% formic acid) at a flow rate of 0.15 ml/min. The elution scheme was as follows: linear increase of the mobile phase B from 65% to 80% in 10 min, isocratic at 80% of phase B in 3 min and linearly to 100% phase B in the following 6 min. Finally, the system was re-equilibrated at 35% phase A over 4 min. The HPLC column effluent was introduced into a Micromass Quatro MicroTM API mass spectrometer (Waters, Milford, USA) and analyzed using electrospray ionization in the positive mode and a single ion monitoring (SIM) modus: m/z 300.8 for PEA, m/z 326.8 for OEA, m/z 348.8 for AEA, m/z 379.8 for 2-AG and m/z 356.8 for the internal standard (AEA-d8). The mass spectrometer and source parameters were set up as follows: capillary voltage 3.5 kV; cone voltage 20 and 24 V for AEA/AEA-d8/2-AG and PEA/OEA, respectively; source temperature 120°C; desolvation temperature 350°C; flow rate of desolvation gas 700 l/h. Dwell and delay times were 0.05 and 0.1 s, respectively. All instrument parameters for the monitored analytes were tuned by injecting standard solutions at a concentration of 100 ng/ml at 10 μl/min flow rate by a syringe pump. The data were acquired using MassLynx software version 4.1 (Micromass Ltd., Manchester, UK). Upon quantitation the signals obtained for each analyte was normalized to the amount of internal standard observed in the corresponding sample. No effect of additives (AA-5HT or URB597) was observed during preparation of calibration curves for each of the standards used. Finally, an aliquot of each lysate (10 μl) was used for quantification of total protein using the Pierce® BCA protein assay kit (Thermo Scientific).
Induction of A549 xenografts in nude mice
Tumors were induced in female nude mice (NMRI-nu/nu) by subcutaneous inoculation of 1 × 107 A549 cells into the the right dorsal flank. Animals were injected intraperitoneally every 72 h with test substances or its vehicles for 28 days. The treatment was started 7 days after tumor induction. Tumor volume was calculated as (4π/3) x (width/2)2 x (length/2). Experiments were conducted in accordance with the policies of local Animal Ethics Committee.
Statistics
Comparisons between 2 groups were performed with Student's t test. Comparisons among more than 2 groups were carried out with one-way ANOVA plus post hoc Bonferroni or Dunnett test. All statistical analyses were undertaken using GraphPad Prism 5.04 (GraphPad Software, Inc., San Diego, USA).
Abbreviations
- AA-5HT
- arachidonoyl serotonin
- AEA
- N-arachidono-ylethanolamine
- 2-AG
- 2-arachidonoylglycerol
- AM-251
- N-(Piperidin-1-yl)-5-(4-iodophenyl)-1-(2,4-dichlorophenyl)-4-methyl-1H-pyrazole-3-carboxamide
- AM-630
- {6-Iodo-2-methyl-1-[2-(4-morpholinyl)ethyl]-1H-indol-3-yl}(4-methoxyphenyl)methanone
- CB1
- cannabinoid receptor 1
- CB2
- cannabinoid receptor 2
- FAAH
- fatty acid amide hydrolase
- MAGL
- monoacylglycerol lipase
- NSCLC
- non-small cell lung cancer
- OEA
- N-oleoylethanolamine
- PEA
- N-palmitoylethanolamine
- TRPV1
- transient receptor potential vanilloid 1
- URB597
- [3-(3-carbamoylphenyl)phenyl] N-cyclohexylcarbamate
