Synthetic cannabinoid receptor agonists inhibit the cardiac voltage-gated potassium channel hERG
1https://ror.org/05ynxx418grid.5640.70000 0001 2162 9922Department of Biomedical and Clinical Sciences, Linköping University, Linköping, Sweden
2https://ror.org/05ynxx418grid.5640.70000 0001 2162 9922Chemical Biology Consortium Sweden, Science for Life Laboratories (SciLifeLab), Linköping University, Linköping, Sweden
3https://ror.org/02e7b5302grid.59025.3b0000 0001 2224 0361School of Physical and Mathematical Sciences, Nanyang Technological University, Singapore, Singapore
4https://ror.org/02dxpep57grid.419160.b0000 0004 0476 3080Department of Forensic Genetics and Forensic Toxicology, National Board of Forensic Medicine, Linköping, Sweden
Abstract
Synthetic cannabinoid receptor agonists (SCRAs) are a large group of structurally diverse designer drugs (analogues of controlled substances) associated with intense and sometimes fatal intoxication. Cardiac symptoms, including tachycardia and arrhythmia, are common consequences of SCRA consumption. However, little is known about the mechanisms through which SCRAs may perturb cardiac rhythm. Here, we used electrophysiological techniques to screen 36 SCRAs on two ion channels responsible for cardiomyocyte repolarization, hERG (also called KV11.1) and KV7.1/KCNE1. We report that the majority of tested SCRAs inhibited hERG, primarily by reducing channel conductance, and some also inhibited KV7.1/KCNE1. In silico data suggest that SCRAs may use both a known drug binding site in the central cavity of the hERG channel, shared by established hERG blockers like astemizole, and a recently identified side pocket site. Experimental and in silico data suggest SCRA structural features associated with prominent inhibitory effects on hERG, with chemical moieties allowing bond formation and/or the ability to fit into binding sites being important. Structure-activity relationships (SAR) for SCRA effects on hERG, KV7.1/KCNE1 and the cannabinoid receptor 1 (CB1) varied, demonstrating the need to assess SCRA effects on multiple potential targets. In conclusion, we found SCRAs to be inhibitors of cardiac voltage-gated potassium channels important for cardiomyocyte repolarization, highlighting the importance of more extensive investigation of SCRAs on cardiac function.
Introduction
Synthetic cannabinoid receptor agonists (SCRAs, exemplified by JWH-018 in Fig. 1a), commonly known as “spice” or “K2”, are a large class of new psychoactive substances (NPS) designed to mimic the effects of Δ9-tetrahydrocannabinol (Δ9-THC) (Fig. 1b), the main psychoactive component of cannabis [1]. The SCRA available on the recreational drug market is constantly changing with new compounds emerging each year to circumvent national and international legislation, posing international threats and challenges to the communities. For newly emerging SCRAs, chemical modifications may be seen at the core, tail, head (also known as linked group), or linker of the SCRA molecule (Fig. 1c). As of 2025, 277 different SCRAs have been reported to the European Union early warning system, and it is the largest group of NPS being monitored by the European Union Drug Agency (EUDA) [2].
SCRAs have been estimated to be used by 0.2%–4% of the population [3], with much higher use reported in prisons [4], rough-sleeping populations [5], and populations with regular drug testing, including the military [6] and people on probation/parole [7]. SCRAs are often smoked as infused herbal material or vaped as infused e-cigarette oils [8]. There have also been many reports of the addition of SCRAs to cannabis products on the market [9, 10] and SCRAs found in drug samples sold as opioids or benzodiazepines [11], meaning people who use SCRAs are often unaware of the actual SCRAs they are using or may not even know they are using SCRAs. The high variability of the market and lack of pharmacological data of newly emerging drugs significantly increase the risk of harm.
SCRAs are typically full agonists of the cannabinoid 1 (CB1) receptor, the receptor responsible for the psychoactivity of cannabis, whereas Δ9-THC is only a partial agonist [1]. SCRAs are often significantly more potent on the CB1 receptor than Δ9-THC (exemplified by JWH-018 in Fig. 1d) and have many adverse effects reminiscent of psychostimulants rather than cannabis, including psychosis, seizures, and cardiac arrhythmia [12]. Cardiovascular-related complications of SCRAs are the most common symptoms presented at accident and emergency departments [13, 14] and common causes of death [15–17]. For instance, 5F-MDMB-PINACA (Fig. 1e, also known as 5F-ADB), has been implicated in several fatal intoxications [18–20] and linked to cardiac symptoms [21]. Thus, there is a substantial body of evidence linking SCRA intoxication to potentially fatal cardiac arrhythmias [22], with QT prolongation on the electrocardiogram (ECG) reported in several studies [e.g., 23–25].
Despite frequent reports associating SCRA intoxication with arrhythmias, little is known about how SCRAs cause these adverse effects on a mechanistic level [22]. As cardiac arrhythmias are electrophysiological disorders, cardiac ion channels may be implicated. As the first example supporting this, an electrophysiological study reported that JWH-030 (Fig. 1f) inhibits the voltage-gated potassium channel hERG (KV11.1) and prolongs the QT interval in rats [26]. Moreover, a recent integrative computational and electrophysiological study shows that 5F-APINACA (also called 5F-AKB48) and ADB-FUBIATA inhibit hERG and find a side pocket lateral to the central cavity for these two SCRAs [27]. Another study used machine learning models to propose hERG binding of several SCRAs, though no electrophysiological experiments were conducted to confirm the predictions [28]. These three studies provide the first indication of the interaction between SCRAs and hERG, highlighting the importance of more extensive studies.
The hERG channel, together with the KV7.1/KCNE1 channel, is responsible for phase 3 repolarization of the action potential in ventricular cardiomyocytes: hERG carries the rapidly activating delayed rectifier current IKr, whereas KV7.1/KCNE1 carries the slowly activating delayed rectifier current IKs (Fig. 1g). Impaired function of hERG or KV7.1/KCNE1 can lead to a prolonged action potential duration (indicated in red in Fig. 1g), early afterdepolarizations and arrhythmic beats [29, 30]. This is observed in ventricular arrhythmias such as Torsades de Pointes, a life-threatening polymorphic tachycardia that is a consequence of both drug-induced Long QT Syndrome (LQTS) following hERG channel inhibition and as congenital LQTS caused by deleterious mutations in the genes encoding hERG and KV7.1/KCNE1 [29, 30]. However, whether SCRAs other than JWH-030, 5F-APINACA, and ADB-FUBIATA inhibit hERG remains unclear. In addition, putative SCRA effects on KV7.1/KCNE1 remain unknown. Thus, our study aims to address this knowledge gap by assessing the effects of a broad set of SCRAs on hERG and KV7.1/KCNE1 channels.
Results

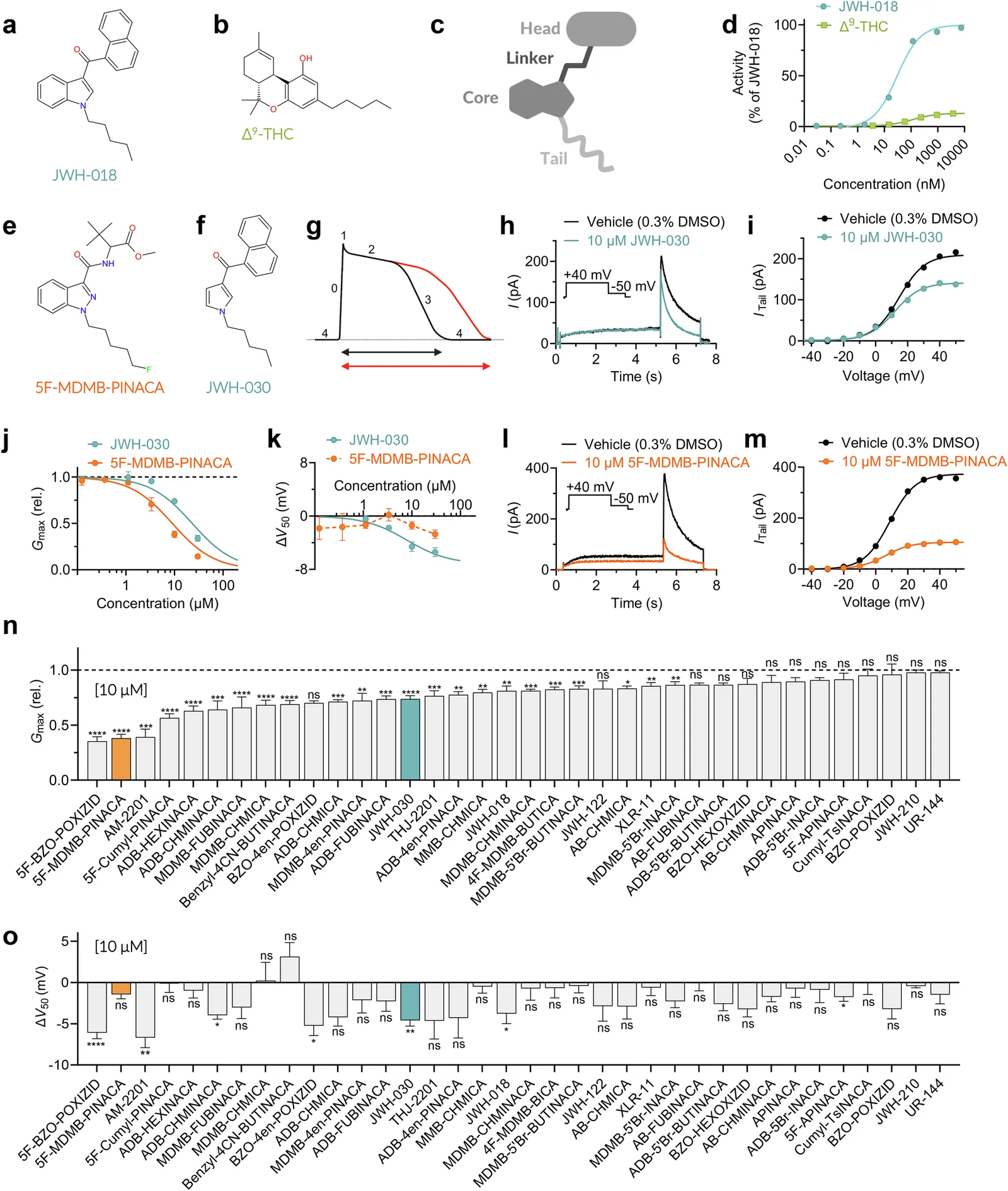

SCRAs inhibit the hERG channel by reducing channel conductance
To assess the effect of a large set of SCRAs on hERG (see SI Table I and SI Fig. S1 for a list of the 36 included SCRAs and corresponding structures), we used the automated planar patch-clamp (APC) technique on mammalian Chinese hamster ovary (CHO) cells stably expressing human hERG. All 36 SCRAs were evaluated in concentration-response experiments using concentrations ranging from 1.11 to 30 µM (also lower concentrations were tested for potent compounds). We employed a voltage-ladder protocol to obtain information on SCRA effects on the channel’s voltage dependence of activation (V50) and maximal conductance (Gmax) (both determined from Boltzmann fits of the instantaneous tail currents; see Methods for details). SCRA efficacy (e.g., maximal reduction in Gmax) and potency (SCRA concentration required to produce 50% of the compound’s maximal effect; IC50) were determined (see Methods for details). In line with previous reports, JWH-030 inhibited hERG (Fig. 1h, i), seen in our assay as a concentration-dependent decrease in Gmax (Fig. 1j, IC50 = 23.1 µM, 95% CI = 16.1–29.7) and a small effect on V50 (Fig. 1k). Among the tested compounds, 5F-MDMB-PINACA was one of the more potent inhibitors, reducing Gmax of hERG at lower concentrations than JWH-030 (Fig. 1j–m, IC50 = 9.0 µM, 95% CI = 4.8-9.9).
Most SCRAs displayed inhibitory effects on hERG, primarily in the form of decreased Gmax (see SI Fig. S2 for concentration-response data and SI Table II for efficacy and potency). For several compounds, the concentration-response curves did not saturate at the highest concentration tested (SI Fig. S2), resulting in suboptimal curve fitting with unreliable efficacy and potency estimates (SI Table II–III). We therefore compared the effects of the 36 SCRAs at 10 µM, a concentration that provided a consistent and representative estimate of the overall inhibitory effect on hERG. At 10 µM, 23 of the SCRAs significantly reduced Gmax (Fig. 1n). Corresponding manual patch-clamp experiments yielded comparable effects for three tested SCRAs (SI Fig. S3a). In contrast, at 10 µM only 7 of the tested SCRAs induced a significant shift in V50 (Fig. 1o). Also, the magnitude of these V50 shifts was modest, with all ΔV50 confined within a narrow range of ± 7 mV. Hence, for the rest of the study, we will focus on the Gmax response of hERG to the SCRAs.
SCRA building block chemistry impacts SCRA inhibition of hERG

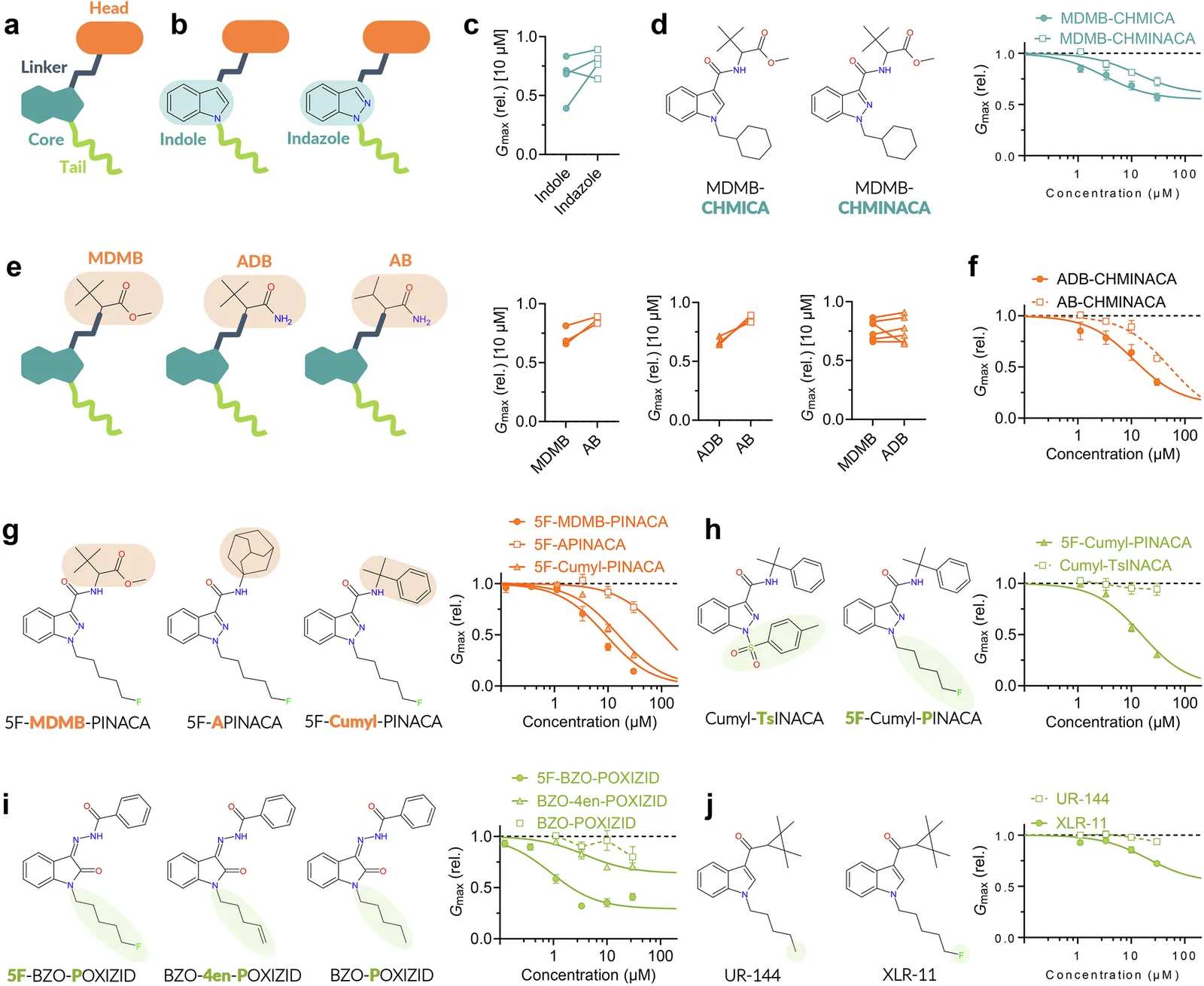

We noted several interesting examples of how chemical modifications to the building blocks (Fig. 2a) of SCRAs influenced the hERG inhibitory effects on Gmax. However, detailed structure-activity relationship (SAR) analysis for efficacy and potency was not possible because of the unreliable concentration-response fits of Gmax reduction in hERG for several SCRAs (SI Table II–III). For the core, we noted two examples for which SCRAs with an indole core showed more prominent effects on hERG than the corresponding SCRAs with an indazole core (Fig. 2b, c; SI Fig. S4). This is exemplified by MDMB-CHMICA vs MDMB-CHMINACA in Fig. 2d. However, two other examples showed overall comparable hERG effects for SCRAs with indole and indazole cores (Fig. 2c; SI Fig. S4), suggesting no consistent pattern across the cores. Of the different amino acid-derived head moieties (Fig. 2e), SCRAs with tert-leucine methyl esters (MDMB) and tert-leucinamides (ADB) showed a trend towards more prominent hERG effects compared to valinamide (AB) SCRAs (Fig. 2e, f; SI Fig. S4). Moreover, the 5F-PINACA scaffold with either a branched MDMB or aromatic cumyl head group induced concentration-dependent inhibitory effects on Gmax, whereas the bulky adamantyl in 5F-APINACA impaired the inhibitory effect (Fig. 2g). As another example, a bulky tosyl group at the tail of the Cumyl-INACA scaffold caused Cumyl-TsINACA to be a non-inhibitor (Fig. 2h). Furthermore, addition of a terminal fluorine (5F-pentyl in 5F-BZO-POXIZID) or alkene (pent-4-enyl in BZO-4en-POXIZID) on the pentyl tail of the BZO-POXIZID scaffold produced concentration-dependent inhibitory effects on Gmax, whereas a simple pentyl tail (in BZO-POXIZID) rendered this SCRA a non-inhibitor (Fig. 2i). As another example of tail chemistry, terminal fluorination of the pentyl tail on the UR-144 scaffold (i.e., XLR-11) resulted in concentration-dependent inhibitory effects on Gmax, whereas its non-fluorinated counterpart (i.e., UR-144) was a non-inhibitor (Fig. 2j). Similarly, 5F-APINACA showed inhibitory effects on Gmax, whereas APINACA was a non-inhibitor (SI Table II). Altogether, the screening of 36 SCRAs on the hERG channel demonstrates that specific structural elements markedly influence hERG inhibition.
SCRAs may use both a promiscuous central pore cavity site and lateral side pocket sites in hERG
hERG has a known, promiscuous canonical binding site in the central cavity of the pore domain that is used by many inhibitors and blockers [31, 32], including the histamine receptor antagonist and hERG blocker astemizole [32–34] (see also SI Fig. S5 for inhibitory effect of astemizole in our hERG assay). This central cavity site is just below the selectivity filter and flanked by aromatic residues, like Y652 (schematic illustration in Fig. 3a). Moreover, a recent study revealed a noncanonical inhibitory site in hERG used by 5F-APINACA [27], here referred to as the side pocket site (schematically illustrated in Fig. 3a). This site is lateral to the central cavity site (on the other side of Y652 compared to the central cavity site) and flanked by residues like F557 and M651 [27]. To assess whether SCRAs may interact with hERG in the central cavity and side pocket sites and predict the mode of interaction, we started by docking astemizole (as a positive control for the central cavity site) and all 36 SCRAs to the recently solved structures with astemizole density (PDB entry: 8ZYO, astemizole structure being built in; PDB entry: 7CN1, astemizole structure not being built in). The docking was centered at Y652, which is close to both the central cavity site and the side pocket site (SI Fig. S6a). Using the 7CN1 structure, the docked pose of astemizole and the SCRAs were residing on the side pocket (SI Fig. S6b), similar to what was seen for 5F-APINACA in the recent study [27]. However, the docking score was relatively low, suggesting low binding affinity at the side pocket (SI Fig. S6b). Interestingly, when docked to the 8ZYO structure, all SCRAs’ primary binding sites were located in the central cavity site (SI Fig. S6c). By instead centering the docking at F557 in the 8ZYO structure, SCRAs also found the side pocket site, although with lower affinity than in the central cavity site (SI Fig. S6d). This is interesting, given the relatively small structural differences between 7CN1 and 8ZYO in the region of interest, with the main difference being the rotamer of Y652. The redocking of astemizole to the binding pocket in 8ZYO showed a near match to the experimental structure (SI Fig. S6c). Together, these highlight the possibility that both binding sites can be used alternatively for hERG inhibition by SCRA. However, the binding free energy from docking (SI Fig. S6) showed no correlation with the experimental data, with SCRAs inducing no-to-prominent hERG inhibition in experiments despite comparable binding free energy from docking.

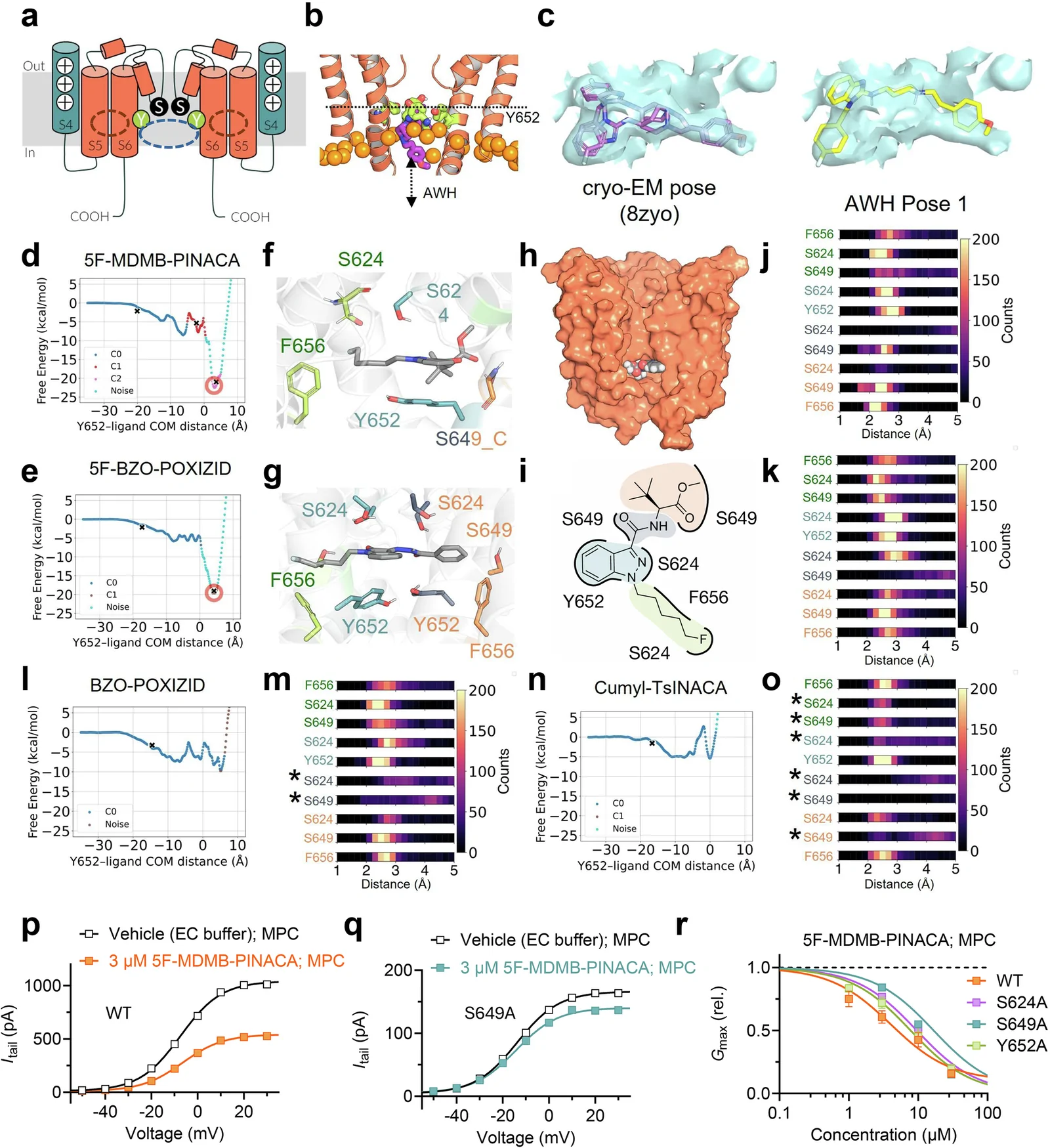

Given the discrepancy in the binding pose arising from the side-chain rotamers and a slight difference in protein conformation, we developed a novel computational pipeline using accelerated weighted histogram (AWH) simulations, with astemizole as a positive control (SI Fig. S7). This AWH simulation used 7CN1 as the starting protein structure, with astemizole randomly placed in the central cavity of the pore. The work from the pipeline resulted in the binding poses of astemizole matching the recently solved cryo-EM density on the 8ZYO structure [35] with astemizole binding perpendicular to the ion conducting pathway in the central cavity site, about 5 Å above Y652 (Fig. 3b, c, SI Fig. S7). From this site, astemizole blocks hERG by preventing potassium ion permeation [35]. This highlighted the advantage of AWH, as the success of the method in predicting the binding site was independent of the side chain rotamers of the initial structure. We followed the same workflow for four SCRAs, two of which were inhibitors in our hERG assay by reducing Gmax (5F-MDMB-PINACA and 5F-BZO-POXIZID) and two of which failed to inhibit the channel (BZO-POXIZID and Cumyl-TsINACA), to gain insight into the inhibitory effect at the central cavity site. Like astemizole, the simulations with the inhibitors 5F-MDMB-PINACA and 5F-BZO-POXIZID found an energy minimum at 5 Å above Y652 (Fig. 3d, e). Given the time constraint in the AWH simulations, we could not achieve a converged free energy landscape (SI Fig. S8). However, the poses clustered from the energy minima showed the SCRAs in the cavity in a planar orientation perpendicular to the ion conduction pathway, sandwiched between Y652 and the selectivity filter (Fig. 3f, g for 5F-MDMB-PINACA and 5F-BZO-POXIZID, respectively, and Fig. 3h for a zoomed-out representation of 5F-MDMB-PINACA). This perpendicular conformation is very similar to that of astemizole, suggesting prevention of potassium ion permeation. We then took 1000 snapshots from the minima of the cluster to analyse key contacting residues, leading to: (i) the identification of Y652 interacting with the SCRA core by pi-pi stacking; (ii) S624 and S649 interacting with either the head or the tail of the SCRA, providing hydrogen bonds; and (iii) F656 interacting with the alkyl tail by hydrophobic interaction, or defining the size of the head of the SCRAs that can be accommodated in the binding pocket (Fig. 3i). All snapshots from the minima showed the distribution being mostly unimodal, suggesting a very stable binding pose (Fig. 3j, k). Also, for the non-inhibitor BZO-POXIZID, we found an energy minimum at 5 Å above Y652 (Fig. 3l). However, while we identified a hydrogen bond between the hydroxyl group on S624 and/or S649 and the fluorine of the 5F-pentyl tails of 5F-MDMB-PINACA and 5F-BZO-POXIZID, these were absent for BZO-POXIZID and may explain why it is a non-inhibitor. Hence, although S624 and/or S649 remain in close proximity with the tail in BZO-POXIZID (Fig. 3m), they are unable to form any H-bonding, which is expected to result in a weaker affinity to the channel. Lastly, we sought insight into the structural basis of the non-inhibitor Cumyl-TsINACA. The free energy landscape from the simulations indicates that Cumyl-TsINACA did not show a minimum at 5 Å position (Fig. 3n). This placed both S624 and S649 out of the head binding pocket, misplaced the linker region, and disrupted the interaction with the tail (Fig. 3o, with main lost interactions highlighted by *). Together, these suggested how Cumyl-TsINACA fails to prevent potassium ion permeation.
Based on the above-described SCRA poses in the central cavity and the experimental data, we hypothesize that a larger head group (e.g., adamantyl) or tail group (e.g., tosyl) prevents the SCRA from binding properly, resulting in a shift in the position of the minima in the free energy landscape. Also, it may be that either the head group (MDMB or Cumyl) or the fluorinated tail must be able to form hydrogen bonds with S624 or S649, such that SCRAs with no tail (like MDMB-5’Br-INACA or ADB-5’Br-INACA) will result in a weaker interaction with the binding pocket. Given the limitation on the convergence of the free energy in the simulations, it is challenging to determine how the small differences between the indole and indazole cores impact the pi-stacking interaction with Y652. However, indazole has been shown to be less electron-rich than indole due to the additional p-orbital on the N atom [36]. This may weaken the pi-stacking interactions with Y652 for some SCRAs.
Mutating S624, S649, and Y652 to alanine may impact the interaction between SCRAs and these residues in the central cavity. We compared the 5F-MDMB-PINACA effect on hERG wild type and the S624A, S649A and Y652A mutants. 5F-MDMB-PINACA still exerted prominent inhibitory effects on Gmax on these mutants (Fig. 3p–r; SI Fig. S3b, e), with no differences in potency. That 5F-MDMB-PINACA still exerts a clear inhibitory effect on these mutated channels could indicate preserved or compensatory interactions with other residues in this site, or primary or compensatory inhibiting effects arising from the side pocket site.
Comparing SARs for SCRA effects on hERG and the CB1 receptor reveals similarities and differences

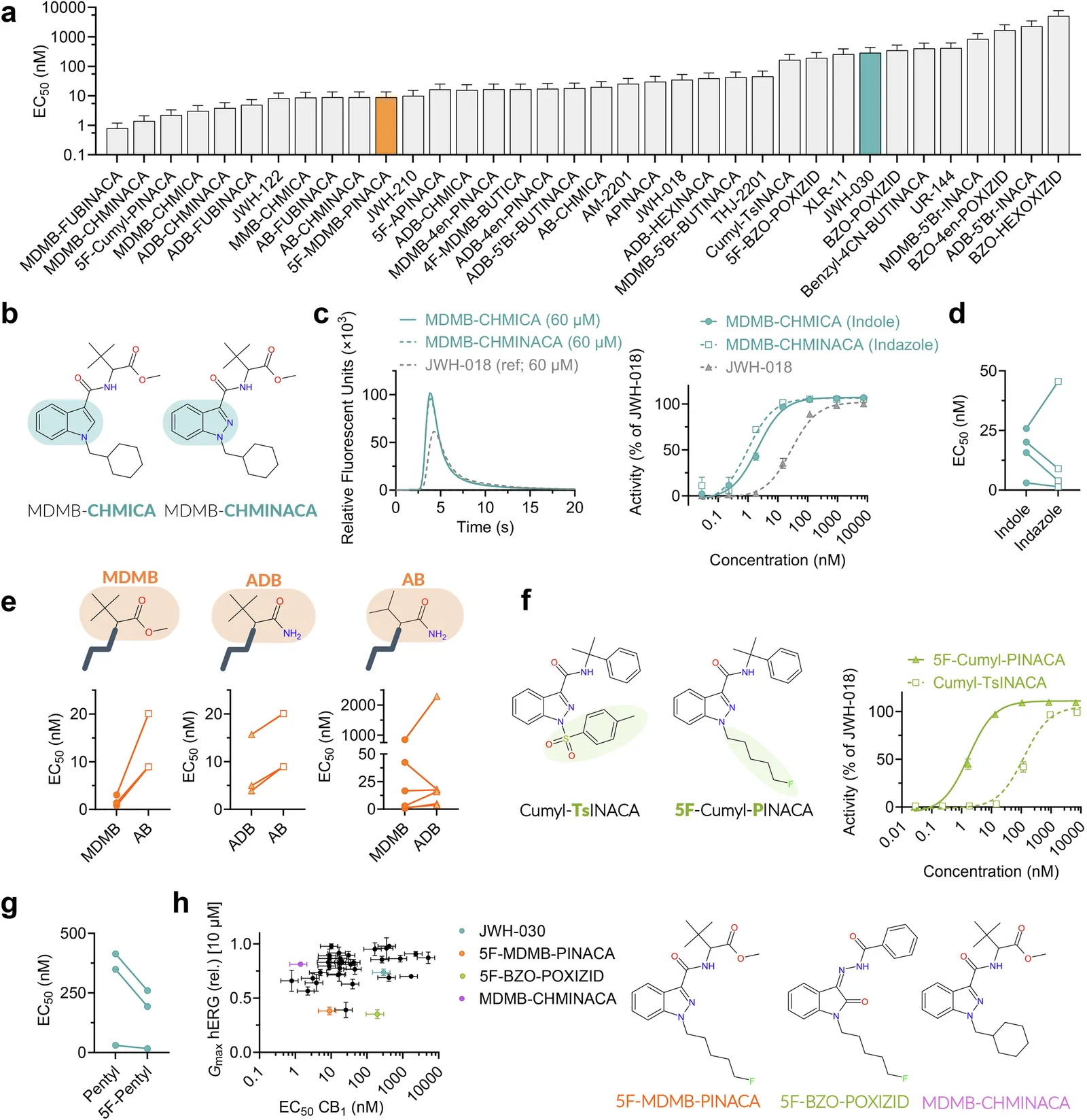

To explore the relationship between the potential cardiotoxic effects of SCRAs via hERG and their psychoactive effects mediated by the CB1 receptor, we assessed the activity of the 36 SCRAs on CB1 stably expressed in CHO-K1 cells using an AequoScreen® intracellular calcium release assay (see Methods for details; SI Fig. S9a for an exemplary example of JWH-018). The compounds showed a wide range of potencies on CB1, with EC50 values spanning from sub-nanomolar (e.g., MDMB-FUBINACA) to low micromolar levels (e.g., BZO-HEXOXIZID) (Fig. 4a; SI Table II).
In contrast to the results on hERG, MDMB-CHMICA and MDMB-CHMINACA showed similar effects on CB1 (Fig. 4b, c; SI Table IV). No consistent pattern in CB1 potency was observed between compounds with indole or indazole cores (Fig. 4d). For the head moiety, a similar overall pattern was seen for CB1 receptor activity as for hERG, where tert-leucine methyl esters (MDMB) and tert-leucinamides (ADB) were consistently more potent than the corresponding valinamide (AB) head moiety (Fig. 4e; SI Table V). Moreover, an adamantyl group (5F-APINACA) instead of an MDMB or cumyl group reduced the hERG inhibitory Gmax effect and also reduced the CB1 potency (SI Fig. S9b).
Similar to the results on hERG, replacing the fluorinated pentyl tail of 5F-Cumyl-PINACA with the tosyl tail of Cumyl-TsINACA reduced the effect at the CB1 receptor, shifting the EC50 from 2.2 nM to 166 nM (Fig. 4f). For hERG, the importance of fluorination was further supported by the increased effect of 5F-BZO-POXIZID compared to BZO-POXIZID, and similarly for UR-144 versus XLR-11. At the CB1 receptor, a similar importance of tail fluorination was seen, as fluorinated SCRAs tended to show higher potency compared to their non-fluorinated counterparts (Fig. 4a, g; SI Table VI). Taken together, certain structural features, particularly in the head and tail moieties, show similarities in how they contribute to effects in hERG and CB1. However, the overall ability of SCRAs to affect hERG and CB1 shows little apparent association (Fig. 4h), with some SCRAs affecting both (e.g., 5F-MDMB-PINACA in orange), some having effects primarily on hERG (e.g., 5F-BZO-POXIZID in green) or primarily on CB1 (e.g., MDMB-CHMINACA in purple), reflecting distinct SARs.

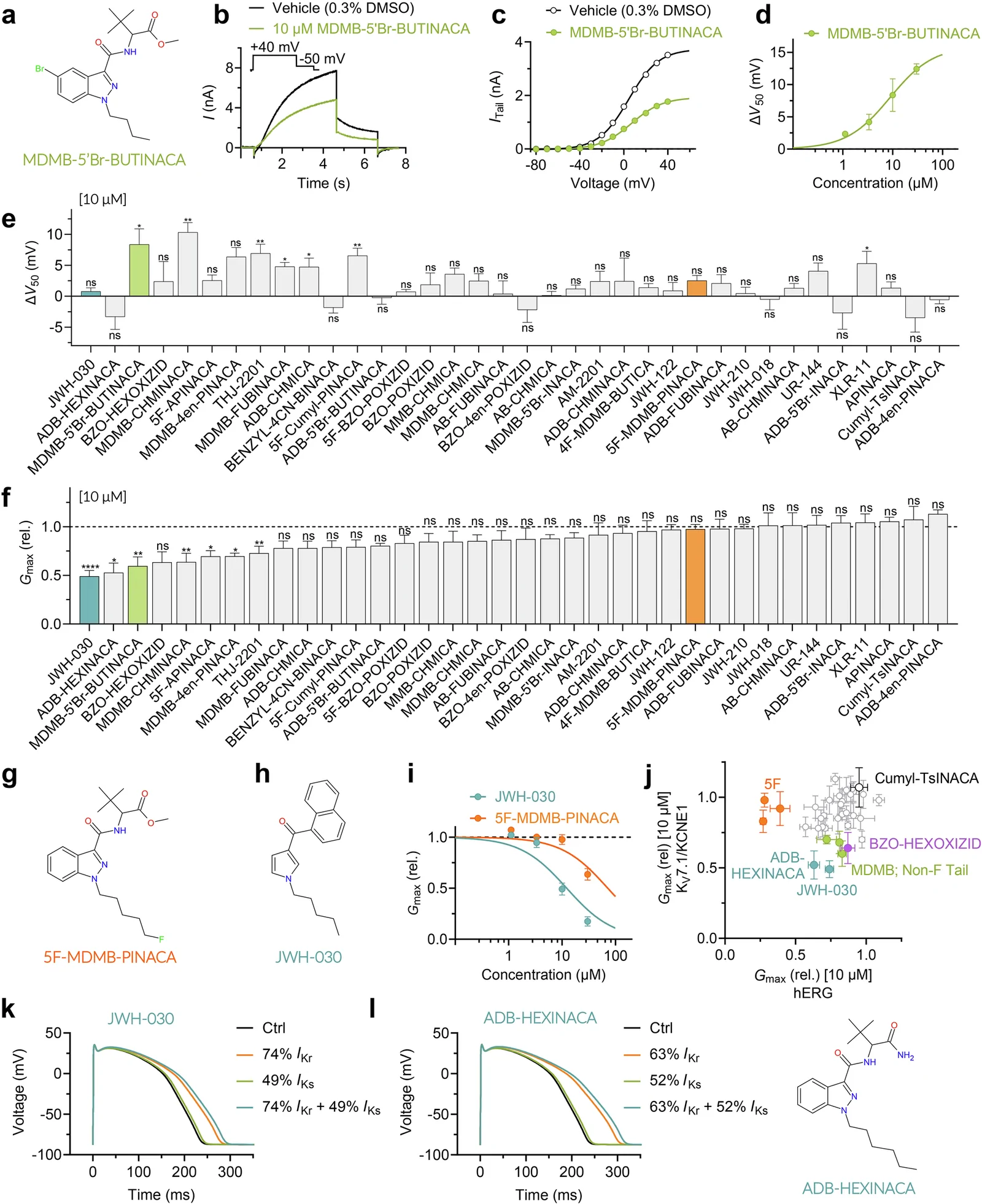

Several SCRAs show dual inhibitory effects by targeting both hERG and KV7.1/KCNE1
Both hERG and KV7.1/KCNE1 contribute to cardiomyocyte repolarization (Fig. 1g). Inhibition of KV7.1/KCNE1 alone can be proarrhythmic [37]. Moreover, under conditions with impaired hERG function, upregulation of KV7.1/KCNE1 has been proposed to partially compensate for the loss of hERG [38, 39]. Hence, drugs that inhibit both hERG and KV7.1/KCNE1 may have compounded proarrhythmic effects [40]. To assess if SCRAs also affect KV7.1/KCNE1, we used mammalian CHO cells stably expressing human KV7.1/KCNE1. At 10 µM, several SCRAs displayed inhibitory effects on KV7.1/KCNE1, seen as reduced Gmax and/or shifted V50 (SI Fig. S10, 11). A notable example was MDMB-5’Br-BUTINACA (Fig. 5a), which both reduced Gmax and shifted V50 towards more positive voltages (Fig. 5b–d). At 10 µM, 7 of the SCRAs caused a significant positive shift in V50 (Fig. 5e), with the largest shift induced by MDMB-CHMINACA (ΔV50 = +10.3 ± 1.6 mV). At 10 µM, 7 of the SCRAs significantly reduced Gmax (Fig. 5f). Several SCRAs produced significant effects on both Gmax and V50 at 10 µM; however, only 5F-Cumyl-PINACA and THJ-2201 exhibited well-defined concentration–response relationships for both effects (SI Fig. S10, 11; SI Table II). In contrast to hERG, 5F-MDMB-PINACA had a small effect on KV7.1/KCNE1, while JWH-030 induced the largest reduction in Gmax (Fig. 5e–i; SI Table II). Hence, several SCRAs inhibited KV7.1/KCNE1; however, they were fewer and induced less prominent reduction in Gmax compared to what was observed for hERG.
Given the limited number of SCRAs with effects on KV7.1/KCNE1, no SAR analysis could be performed. However, we note several interesting clusters of compounds, exemplified for 10 µM on Gmax in Fig. 5j. At 10 µM, some SCRAs had no effect on either of the two channels (e.g., Cumyl-TsINACA in black), whereas some had effects only on hERG (e.g., 5F-MDMB-PINACA, 5F-BZO-POXIZID, and AM-2201 in orange) or only on KV7.1/KCNE1 (e.g., 5F-APINACA in purple). Yet other SCRAs had inhibitory effects on both hERG and KV7.1/KCNE1 (e.g., JWH-030 and ADB-HEXINACA in teal, and MDMB-5’Br-BUTINACA, MDMB-4en-PINACA, and MDMB-CHMINACA in green), showing compounded inhibitory effects on both these repolarizing KV channels for a limited number of SCRAs. To test the impact of compounded inhibitory effects on hERG and KV7.1/KCNE1 on action potential duration, we simulated the effects of applying JWH-030 or ADB-HEXINACA on human cardiomyocytes using the O’Hara-Rudy dynamic (ORd) model [41, 42] by modifying parameters for the conductance for individual channels to reflect our experimental SCRA-induced Gmax effects for 10 µM of JWH-030 or ADB-HEXINACA, respectively. We saw prominent ventricular action potential prolongation induced by hERG inhibition for both SCRAs (Fig. 5k, l, denoted by IKr). The action potential duration at 80% (APD80) was prolonged by 40.5 and 64.0 ms, respectively, for JWH-030 and ADB-HEXINACA. In contrast, APD80 was prolonged by only 5.8 and 5.5 ms, respectively, for JWH-030 and ADB-HEXINACA by KV7.1/KCNE1 inhibition (Fig. 5k, l, denoted by IKs). For both SCRAs, simultaneous inhibition of hERG and KV7.1/KCNE1 further prolonged action potential duration compared to inhibition of hERG alone (Fig. 5k, l, denoted by IKr + IKs), yielding an APD80 prolongation of 51.5 and 76.0 ms, respectively, for JWH-030 and ADB-HEXINACA. Hence, the impact on action potential duration of inhibiting KV7.1/KCNE1 was more prominent in the context of a hERG-inhibited cardiomyocyte, with the additional KV7.1/KCNE1 inhibition contributing by 11.0 and 12.0 ms, respectively, for JWH-030 and ADB-HEXINACA.
Discussion
We demonstrate that the majority of SCRAs included in our study inhibit hERG, primarily by reducing the channel conductance. However, the magnitude of the effects and concentrations at which they occur varies among SCRAs. We observed important roles for both the head and tail groups. For instance, we found that several SCRAs with fluorinated alkyl tails (mostly 5F-pentyl) are prominent hERG inhibitors by reducing Gmax. This is interesting, as 5F-pentyl is the second most common tail moiety among SCRAs [43]. Moreover, bulky and inflexible groups seemed to impair hERG Gmax effects for some SCRAs, showcased by Cumyl-TsINACA (with an inflexible, bulky tosyl tail) and 5F-APINACA (with a bulky and inflexible adamantyl head group). Interestingly, we found only partial correlation between how SCRA structural features impact the Gmax effect on hERG compared to activating the CB1 receptor. Moreover, inhibitory SCRA effects on hERG and KV7.1/KCNE1 showed no apparent correlation, as fewer SCRAs had inhibitory Gmax effects on KV7.1/KCNE1 compared to hERG, with some compounds affecting only one of the channels. These findings indicate that different chemical properties are important for SCRA binding or effects on these different targets and demonstrate the need to experimentally test the effect of SCRAs on multiple targets.
Our docking data indicate that SCRAs may use both the canonical central cavity site and the noncanonical lateral side pocket site. The SCRA orientation in the central cavity site seen in our AWH simulations is very similar to that of cryo-EM structures of the hERG pore blockers astemizole, E-4031 and pimozide [35], and the KCa3.1 pore blocker 1,4-dihydropyridine [44], which all are shown to lie flat below the selectivity filter, form interaction with aromatic side chains, and are proposed to prevent ion permeation. Hence, a possibility is that SCRAs like 5F-MDMB-PINACA and 5F-BZO-POXIZID reduce Gmax of hERG by obstructing and preventing currents through the pore. The direct interaction between the SCRA and the selectivity filter may also induce channel inactivation. Moreover, the SCRA pose in the lateral side pocket site seen in our docking is comparable to that recently proposed for 5F-APINACA [27], raising the possibility that SCRAs may also induce inhibiting effects from this site. The relative contribution of each site for different SCRAs cannot be deduced from our data. However, the lack of pronounced functional consequences of mutating residues S624, S649 and Y652, facing the central pore site, for 5F-MDMB-PINACA effects suggests either a greater importance of the lateral side pocket site, compensatory importance of other residues in the central cavity site or that the two sites can functionally compensate for each other. Future studies using other methods are needed to determine the relative contribution of these sites and how the interactions are impacted by channel state and structural features of SCRAs.
In modern structural biology, cryo-EM is a common tool for determining the drug-binding pocket and its interaction geometry. Information from the cryo-EM density map can be an excellent starting point for identifying the binding pose of related drug molecules, or even for understanding how they gain access to the binding site. To enrich detailed cryo-EM determined drug binding sites, computational approaches may reveal the dynamics of drug binding and drug pose adaptation independent of the side-chain rotamer for lower resolution structures. Well-tempered metadynamics recently identified a binding site of the NaV1.5 channel blocker flecainide in the pore just below the selectivity filter. This was very close to the site of flecainide in the cryo-EM structure, and also revealed how different compounds prefer either the central cavity or lateral fenestrations of NaV1.5 [45]. In our study, we used AWH simulations, which are similar to metadynamics but are native to GROMACS [46], to determine the binding of astemizole to the hERG channel with a binding mode matching the electron density map. Moreover, we extended our computational approach to four SCRAs, which showed that the shape of the free energy landscape can provide insights into the efficiency of specific SCRAs as hERG inhibitors that could not be determined from docking.
How do our findings on hERG inhibition by SCRAs compare with the current literature? Yun et al. reported JWH-030 to be an inhibitor of hERG capable of inducing QT prolongation in anesthetized rats [26]; however, their paper reports an in vitro IC50 of 88.4 µM (4-fold greater than our IC50 of 23.1 µM). Another study employed machine learning tools to predict hERG interaction of seven SCRAs [28]. Our electrophysiology data agree with their predictions for ADB-4en-PINACA and ADB-5’Br-INACA, showing no or limited effects for these SCRAs, and for 5F-BZO-POXIZID, showing prominent inhibitory Gmax effects in our hERG assay. In a more recent study, Cheng et al. reported inhibitory hERG effects of 5F-APINACA with an IC50 of 2.2 µM [27], which is considerably lower than our IC50 ( > 100 µM, SI Table II). Hence, our study agrees with these reports in observing inhibitory SCRA-mediated effects on hERG, whereas experimental differences may contribute to the varying observed concentrations required to achieve effects. It is difficult to know the reason for the discrepancy in JWH-030 concentrations needed to induce hERG inhibition in the two studies, given the relatively limited information about experimental conditions in Yun et al. However, we note that their test pulse lasted for only 1 s, compared to our 5 s, which may be a contributing factor. For the discrepancy in 5F-APINACA concentrations needed to induce hERG inhibition, experimental cell systems (CHO cells in our study compared to HEK293 cells in Cheng et al.) or temperature (22 °C in our study compared to 37 °C in Cheng et al.) may contribute.
Study limitations include difficulties in comparing SCRA concentrations needed for effects across different targets, due to the use of multiple assays and SCRA delivery methods, combined with SCRAs’ high lipophilicity [47]. This also contributes to challenges in relating our findings to relevant in vivo concentrations, further complicated by a lack of accurate dosing information for SCRAs (as it is only available in most cases based on self-reports by those using SCRAs). The concentration of some SCRAs has been detected in post-mortem cases. For instance, the concentration of 5F-MDMB-PINACA in post-mortem cases is reported to be approximately 2 ng/mL ( ≈ 5.3 nM) [18–20, 48, 49] in blood or serum samples, and 1.82 ng/mL ( ≈ 4.8 nM) in the heart muscle [50]. However, it is not possible to interpret how well those concentrations reflect those reached in living individuals following SCRA use, or how they relate to the originally administered dose. Hence, with present knowledge, we cannot say whether the local SCRA concentration in the heart can reach sufficiently high concentrations for the SCRA-induced inhibition of hERG alone, or both hERG and KV7.1/KCNE1, to contribute to cardiotoxic effects. However, despite this caveat, we find it interesting to note that MDMB-CHMICA, which has been reported in two cases of sudden cardiac death [51, 52], and multiple analytically confirmed intoxications have reported tachycardia and ECG changes [53, 54], is one of the SCRAs showing clear inhibiting Gmax effects on hERG in our study. Moreover, 5F-MDMB-PINACA is reportedly one of the most dangerous SCRAs, linked to several fatalities [18–20, 48, 49] and non-fatal intoxication with symptoms suggestive of cardiac arrhythmia (palpitations, heart pain, syncope and anxiety) [21]. We found this SCRA to be one of the most prominent in reducing Gmax of hERG. Another study limitation is that the SCRA library would need to be expanded beyond our 36 SCRAs for additional SAR analysis, for instance, by performing more comprehensive analysis on SCRA molecular fingerprints.
In conclusion, our extensive functional screening of 36 SCRAs found multiple compounds with inhibitory actions on one or both repolarizing cardiac KV channels. Our study lends support to SCRAs being able to use both the canonical central cavity site and the noncanonical side pocket site in hERG, highlights chemical motifs tuning the SCRA effect on hERG Gmax, while also providing insights into similarities and differences in SCRA features impacting CB1 and KV7.1/KCNE1 effects. Given that our screening included 13% of the 277 SCRAs that are monitored by the EUDA (formerly the EMCDDA) as of 2025 [2, 55], our study motivates the evaluation of ion channel effects of more SCRAs, as well as further exploration of SCRA interactions with different hERG binding sites and studying their cardiac effects.
Materials and methods
Chemicals
4F-MDMB-BUTICA, 5F-APINACA, ADB-4en-PINACA, ADB-5’Br-BUTINACA, ADB-CHMICA, ADB-FUBINACA, ADB-HEXINACA, Benzyl-4CN-BUTINACA, Cumyl-TsINACA, JWH-210, MDMB-CHMICA, MDMB-CHMINACA, MDMB-FUBINACA, and THJ-2201 reference standards (purity ≥ 98%) were purchased from Cayman Chemicals (Ann Arbor, USA). 5F-BZO-POXIZID, 5F-Cumyl-PINACA, 5F-MDMB-PINACA, AB-CHMICA, AB-CHMINACA, AB-FUBINACA, ADB-5’Br-INACA, ADB-CHMINACA, AM-2201, APINACA, BZO-POXIZID, BZO-4en-POXIZID, BZO-HEXOXIZID, JWH-018, JWH-030, JWH-122, MDMB-4en-PINACA, MDMB-5’Br-INACA, MDMB-5’Br-BUTINACA, MMB-CHMICA, UR-144, and XLR-11 reference standards (purity ≥ 98%) were purchased from Chiron AS (Trondheim, Norway). Astemizole was purchased from Sigma-Aldrich (Stockholm, Sweden). All compound solutions were in DMSO at a concentration of 10 mM and stored at –20 °C. Compounds were diluted in the extracellular recording solution on the day of recordings. DMEM/Ham’s F12, Ham’s F12, 0.25% trypsin-EDTA with phenol red, and fetal bovine serum (FBS) were purchased from Thermo Fisher (Gothenburg, Sweden). HEPES buffer, L-glutamine, protease-free bovine serum albumin (BSA), digitonin, adenosine-5’-triphosphate disodium salt hydrate (ATP), methanol, and DMSO were procured from Sigma-Aldrich (Stockholm, Sweden). The coelenterazine substrate was from Nanolight Technology (Pinetop, AZ, United States).
Cell lines
Stably expressing cell lines “CHO-hERG DUO” (here referred to as hERG; gene: KCNH2) and “CHO-KVLQT1/mink” (here referred to as KV7.1/KCNE1; gene: KCNQ1/KCNE1), (B’SYS GmBH, Witterswil, Switzerland) were used to study whole-cell K+ currents on a QPatch II 48 APC system (Sophion Bioscience A/S, Ballerup, Denmark). Cell culture and passaging were performed in accordance with standard operating procedures. Cells were harvested in serum-free medium with DetachinTM (Genlantis, CA, USA) immediately prior to experiments. For MPC on transient cell lines, CHO-K1 CCL-61 cells (ATCC, Manassas, VA, USA) were cultured in Ham’s F-12 medium supplemented with 10% fetal bovine serum (FBS) and 100 U/mL penicillin–100 µg/mL streptomycin (Gibco, Thermo Fisher Scientific, Waltham, MA, USA). Transfection was carried out using JetOPTIMUS® reagent (Polyplus, Strasbourg, France) according to the manufacturer’s protocol. Briefly, 80,000 cells were seeded per well in a 12-well plate and transfected with 300 ng of pcDNA3-GFP plasmid, 700 ng of pcDNA3-hERG plasmid with either the wild-type or mutant channels (S624A, S649A, or Y652A), and 1 µg of JetOPTIMUS. After 8 h, cells were detached and reseeded at a density of 30,000 cells per well onto several poly-D-lysine-coated glass coverslips placed in a 12-well plate. For the CB1 receptor activity assay, the AequoScreen® recombinant Chinese hamster ovary (CHO) K1 cell line, stably expressing the human CB1 receptor (ES-110-A), was used (Revvity, Sollentuna, Sweden).
Constructs
The hERG wild-type and Y652A constructs were kindly provided by Dr. Nicole Schmitt, and the eGFP-pcDNA3 construct was kindly provided by Dr. Antonios Pantazis. The S624A and S649A constructs were generated in-house from the wild-type template using the QuikChange II XL Site-Directed Mutagenesis Kit (Agilent Technologies, Santa Clara, CA, USA), in accordance with the manufacturer’s instructions. Mutagenesis primers were designed using the Agilent QuikChange Primer Design Program. Briefly, PCR amplification was performed according to the recommended cycling conditions, followed by DpnI digestion for 1 h to selectively degrade the parental (methylated) DNA template. The reaction products were then transformed into XL10-Gold ultracompetent cells. All constructs were verified by whole-plasmid sequencing (Eurofins Genomics, Germany) to confirm sequence accuracy.
Automated patch-clamp experiments
Automated patch-clamp recordings were performed at 22 °C. Freshly harvested cell suspensions (2–3 million cells/mL) were prepared for experiments by the QPatch II 48 automated cell preparation unit. Cells were centrifuged for 150 s at 150 × g and washed twice with the extracellular recording solution. Cells were handled by the integrated pipetting robot and added to the 48 experiment sites on the planar patch-clamp consumable QPlate. Each experiment site contained an individual pair of recording electrodes and a silicon/glass biochip embedded in the flow channels. Single-cell patch recordings (n = 1 is defined as one single-cell patch) and population patch recordings (up to 10 cells per well, n = 1 is defined as one population patch) were performed for hERG and for KV7.1/KCNE1, respectively. Cells were applied, positioned and sealed to the patch holes by a mild suction protocol; whole-cell access was then achieved by a stronger suction pulse.
The extracellular solution contained (in mM): 145 NaCl, 10 Glucose, 4 KCl, 2 CaCl2, 1 MgCl2, and 10 HEPES. Osmolarity was adjusted to 305-308 mOsm with sucrose, and pH was adjusted to 7.4 with NaOH. The intracellular solution contained (in mM): 100 KCl, 4.3 CaCl2, 1.4 MgCl2, 25/10 KOH/EGTA, 24 KF, 10 HEPES, and 4 Mg-ATP (hERG) or 4 Na-ATP (KV7.1/KCNE1). Osmolarity was adjusted to 305-308 mOsm with sucrose, and pH was adjusted to 7.2 with KOH. The compounds were pre-diluted in DMSO, and the final concentration of DMSO (0.3%) was equal in all recording solutions to control for vehicle effects. The compounds made no contact with plastics following dilution in extracellular solution.
An overview of experimental conditions is provided in SI Table VII, Square voltage pulses in a voltage ladder protocol were used to study current/voltage (I(V)) relationships. Each voltage protocol was first run three times in the presence of vehicle (extracellular solution supplemented with 0.3% DMSO), the 3rd serving as the baseline. Voltage protocols were repeated in the presence of 4 cumulatively rising concentrations of test compound, followed by application of vehicle for recovery. To control for assay quality, one set of vehicle-only experiments, which received no test compound, was included in each run (negative control). Each solution was added to the QPlate twice (5s between applications: 10 µL per application). Solutions were present for 60 s before recording started. hERG cells were kept at a holding voltage of −80 mV, with brief hyperpolarizing steps to −90 mV for 50 ms (to calculate ohmic leakage) before returning to −80 mV for 200 ms. Square voltage pulses were sequentially applied in 10 mV increments (range −60 mV to +60 mV) for 5 s before stepping to −50 mV for 2 s to record tail currents. Time between start of sweeps was 10 s. The voltage pulsing protocol was executed every 150 s.
For the KV7.1/KCNE1 voltage ladder protocol (SI Table VII) the solutions were present for 60 s before recording started. KV7.1/KCNE1 cells were kept at a holding voltage of −90 mV, with brief hyperpolarizing steps to −100 mV for 540 ms (to calculate ohmic leakage). Square voltage pulses were sequentially applied in 10 mV increments (range −100 mV to +40 mV) for 4 s before stepping to −20 mV for 2 s to record tail currents. The time between compound application and the first voltage protocol was 60 s. Time between sweeps was 15 s. The voltage ladder protocol was executed every 220 s.
All APC experiments on hERG were performed as described above, with the exception of experiments shown in SI Fig. S12 to monitor the onset of the SCRA effect in APC. In these specific experiments (only used for SI Fig. S12), a voltage pulsing protocol was used. The extracellular solution remained present for 7 s before recording started. hERG cells were kept at a holding voltage of −80 mV with brief hyperpolarizing steps to −90 mV for 50 ms (to calculate ohmic leakage) before returning to −80 mV. Stepping occurred in two stages, first to −50 mV for 50 ms before stepping up +40 mV for 5 s. Cells were then held −50 mV for 2 s to record tail currents and returned to −80 mV. Time between start of sweeps was 10 s, and sweeps were pulsed 20 times per protocol. The voltage pulsing protocol was executed every 201 s.
Transient transfections and manual patch-clamp electrophysiology
Manual patch-clamp (MPC) recordings were performed 24–48 h post-transfection. Patch pipettes were pulled from borosilicate glass and had resistances of 4–7 MΩ when filled with intracellular solution. Coverslips with CHO-K1 cells were placed in a recording chamber and continuously perfused at room temperature (22–24 °C) with extracellular solution using a gravity-fed perfusion system. The intracellular and extracellular solutions used for MPC were identical to those used for APC electrophysiology (see above). Extracellular solution without DMSO was used as a vehicle. Compounds were diluted from the stock solution as a series of dilutions in extracellular solution (i.e., no compensation for different concentrations of DMSO in recording solutions). Compounds were applied to the recorded cells by a pressurized, automated OctaFlow perfusion system (ALA Scientific Instruments).
hERG cells were kept at a holding voltage of −80 mV, with brief hyperpolarizing steps to −90 mV (to calculate ohmic leakage) before returning to −80 mV. Square voltage pulses were sequentially applied in 10 mV increments (range −60 mV to +50 mV) for 5 s before stepping to −50 mV for 2 s to record tail currents (SI Table VII). Each voltage protocol was first run three times in extracellular solution, the 3rd serving as the baseline. Voltage protocols were repeated in the presence of cumulatively rising concentrations of test compound; each concentration was present for 30 s before the recording started. The signals were sampled at 5 kHz after low-pass filtering at 2 kHz.
Electrophysiological analysis
Data from APC and MPC experiments were analyzed using Sophion Analyzer 10.0 software (Sophion Biosciences, Ballerup, Denmark) and Clampfit 10.7 (Molecular Devices, San Jose, CA), respectively, and GraphPad Prism 10 (version 10.0.2; GraphPad Software Inc., CA, USA). For hERG APC-recordings, tail current was extracted as the average current from the start of the tail (70 ms after change of voltage; duration 19 ms). For hERG MPC-recordings, tail current was extracted as the peak current from the start of the tail (35–45 ms after change of voltage for WT; 20-30 ms after change of voltage for Y652A; 30–40 ms after change of voltage for S649A, 70–85 ms after change of voltage for S624A). For Kv7.1/KCNE1, tail current was extracted as the average current from the start of the tail (19.8 ms after change of voltage; duration 25.8 ms).
Ohmic leakage was subtracted from tail currents similarly for APC and MPC data, and the leak-subtracted tail currents were plotted directly against the preceding test voltages to construct G(V) curves. These data were fit with a single Boltzmann curve:where Gmin is the base, Gplateau is the top, V is the voltage in mV, V50 is the voltage where half of the maximum current is reached, and slope is the slope of the curve. To set the bottom of the curve to zero, the Gmin was subtracted from the leak-subtracted tail currents, and data were again plotted directly against preceding test voltages and fit with a single Boltzmann curve:where Gmax is the top, V is the voltage in mV, V50 is the voltage where half of the maximum current is reached, and slope is the slope of the curve. The slope was set to 8 and 12 for hERG and KV7.1/KCNE1, respectively. Gmax and V50 values were exported from Sophion Analyzer or Clampfit (via Excel) for further analysis with GraphPad Prism.
Ratios of Gmax (G/Gmax) and ΔV50 were calculated on a cell-by-cell basis and analyzed separately. To account for potential time-dependent, non–compound-related effects in APC experiments, all values were subsequently normalized to time-matched negative controls. For G/Gmax, the tail current measured in the presence of the compound was divided by the tail current obtained during the third vehicle application for each individual cell, generating a cell-specific current ratio. The mean ratio of the corresponding time-matched negative control was calculated similarly, and each individual ratio was normalized by dividing by this mean. This normalization sets the average response of the negative control to 1. Final reported values represent the mean ± SEM of the normalized ratios for each concentration. ΔV50 was calculated analogously, using differences in mV rather than ratios. For each cell, the shift in V50 induced by the compound was determined relative to the corresponding vehicle condition, and values were subsequently normalized to the mean of the time-matched negative control. This normalization sets the average of the negative control to 0. These calculations were performed in GraphPad Prism 10 using XY table format, with one compound or negative control per column and individual cells represented as subcolumns. Cell-specific calculations were performed by defining subcolumns as repeated measures, ensuring that operations were carried out on a per-cell basis. For normalization to time-matched controls, subcolumns were treated as replicates to calculate the mean control response. This mean was then used to normalize all corresponding cell-specific values. Normalized mean values and SEM were subsequently calculated for each compound and concentration. For statistical comparisons at single concentrations (e.g., 10 µM), the underlying individual cell or well measurements (subcolumns) were used directly and treated as independent observations.
For MPC recordings, ratios of Gmax (G/Gmax) and ΔV50 were calculated on a cell-by-cell basis, as described for APC recordings, except that no normalization to time-matched negative controls was performed.
To determine concentration-dependence of responses to test compounds, Gmax (rel.) and ΔV50 values were plotted and the following 4-parameter concentration-response curve was fitted to the data:where Y is the response (Gmax (rel.) or ΔV50), IC50 is the concentration that evokes 50 % of the maximum response (constrained to always be above 0), and N is the Hill slope. For Gmax (rel.), N was set to –1. For ΔV50, N was set to 1. For Gmax (rel.), Bottom represents the maximally inhibited response and was constrained to assume a value between 0 and 1, and Top represents the baseline (no current inhibition) and was constrained to always be equal to 1. For ΔV50, Bottom represents the baseline (no shift in V50) and was constrained to always be equal to 0, while Top was the maximal V50 response and was not constrained.
Efficacy values are reported as mean ± SEM, whereas potency values are reported with asymmetrical 95% confidence intervals (CI).
Quality control criteria were applied to assess the reliability of concentration–response fits. Efficacy and potency were not determined if no clear concentration–response relationship was observed or if IC50 values could not be estimated with defined confidence intervals. For fits without saturation within the tested concentration range (IC50 > 30 µM), estimated values were considered reliable only if fit quality and parameter uncertainty met predefined criteria (R² > 0.8 and logIC50 span error < 1). We noted that some concentration–response relationships did not reach saturation within the tested concentration range; therefore, fitted parameters for hERG and Kv7.1/KCNE1 were interpreted with caution.
In vitro biological activity at the CB1 receptor
The apoaequorin system (AequoScreen® assay) is an intracellular calcium (Ca2+) release assay commonly used for measuring G-protein coupled (GPC) receptor activity. Apoaequorin is a protein that, in the presence of its substrate coelenterazine, converts to the aequorin photoprotein, which has three Ca2+ binding sites [56]. The binding of an extracellular ligand to the GPC receptor leads to the activation of a universal G protein subunit Gα16, which in turn triggers a series of downstream events, such as the activation of the phospholipase C (PLC) enzyme, that stimulates the release of intracellular Ca2+ [56]. The Ca2+ then binds to the aequorin photoprotein, which oxidizes the coelenterazine, leading to the release of photons that can be measured via a luminescence reader [57].
CHO-K1 cells stably expressing CB1, the apoaequorin enzyme, and the Gα16 subunit were maintained in a humidified atmosphere at 37 °C and 5 % CO2 in Ham’s F12 medium supplemented with 10 % heat-inactivated FBS. To perform the assays, cells were trypsinized (10 min, 37 °C), centrifuged (at 200 × g, 5 min, room temperature), counted, resuspended at 3 × 105 cells/mL in DMEM/Ham’s F12 without phenol red, and supplemented with 15 mM HEPES, L-glutamine, and protease-free BSA (0.1%) (further referred to as assay medium). The coelenterazine substrate was added to a final concentration of 2.5 μM and the suspension was incubated for 3 h (room temperature, rotating at ~7 RPM/min, protected from light). Drug solutions were prepared as a 1:8 serial dilution in assay medium (1:4 serial dilution for Δ9-THC) with a starting concentration of 60 μM (in well after addition of cells) and then added to white, opaque-welled 96-well plates. JWH-018 (60 μM) was included as a reference on each plate, in line with earlier results generated using the AequoScreen® CB1 assay [58–60]. Digitonin (67 μM) and ATP (6.7 μM) were included on each plate and served as positive controls for coelenterazine loading, as both are involved in the non-CB-dependent release of calcium ions. Blank assay medium was used as a negative control. Using a TECAN Spark 10 M plate reader (Männedorf, Switzerland), 50 μL of the incubated cell suspension was dispensed into each well (15 × 103 cells/well) of the 96-well plate containing the test solutions. Luminescence was measured for 25 s (corresponding to 190 additional reading cycles).
Absolute luminescence signals were corrected for intra-plate variability in Microsoft Excel 365 using area under the curve (AUC) values of JWH-018 and were calculated for each concentration of the test compounds. Values were then blank-corrected by subtracting the AUC values of the mean of the blank controls. Data were normalized to the maximum of JWH-018. The normalized values were transferred to GraphPad Prism (Version 10.0.2) to generate concentration-response curves and calculate EC50 and Emax values by curve fitting via nonlinear regression (three-parameter logistic fit). Results are represented as receptor activity of JWH-018 (%) derived from a minimum of three independent biological replicates (n ≥ 3), run in triplicate (technical replicates). There were only two independent experiments (n = 2) for JWH-030, as there was not enough of the reference standard available for a third independent experiment. As such, JWH-030 was not included in any statistical analysis for SARs. As the CB1 receptor activity of the SCRAs included in this study was examined over the span of a couple of years, EC50 values were normalized to the median EC50 value of JWH-018 (35.03 nM) from 139 independent experiments run over many years to adjust for the slight variability in receptor activity over time (13.7-51.9 nM). There was no statistically significant difference between the EC50 values before and after normalization (ANOVA, α = 0.05; P = 0.89).
SAR-studies
Structure-activity relationship (SAR) analysis for the CB1 receptor was conducted for both efficacy (Emax) and potency (EC50), where the logEC50 values were used for the statistical analysis. Only comparisons involving at least three pairs of structurally related compounds were included. The compounds in each pair were evaluated using Brown-Forsythe and Welch ANOVA tests (α = 0.05), and the overall comparison (all pairs with the same structural change) was statistically evaluated using a paired t-test (α = 0.05).
Statistical analysis
Data are reported as mean ± SEM. GraphPad Prism 10 was used for all statistical analyses. n = 1 is defined as one single-cell patch for hERG; one population patch for Kv7.1/KCNE1, one biological replicate (calculated as an average of three technical replicates) for CB1. For CB1 overall SAR comparisons, n = 1 is defined as one pair of compounds. A significance level of P < 0.05 was used for all statistical tests. Statistical significance is indicated as follows: *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001.
For comparisons at single concentrations (e.g., 10 µM), individual cell or well measurements were used as independent observations. Unpaired comparisons involving a single compound versus its time-matched vehicle control were performed using Welch’s t-test. For comparisons involving multiple compounds sharing the same time-matched vehicle control, one-way ANOVA (no matching) was applied, followed by Dunnett’s multiple comparisons test versus the vehicle control. Homogeneity of variance was assessed using the Brown–Forsythe test, and when significant heteroscedasticity was detected (P < 0.05), Welch’s ANOVA followed by Dunnett’s T3 multiple comparisons test was used instead.
For comparisons of IC50 values for 5F-MDMB-PINACA recorded using MPC on WT and mutated versions of hERG, an Extra-sum-of-squares F-test was used (P < 0.05) required for significance. For pairwise comparisons, one-way ANOVA with Šídák’s multiple comparisons test was used.
For SAR studies on CB1, P values for compound-to-compound comparisons were obtained using Brown-Forsythe and Welch ANOVA tests, while P values for overall comparisons were calculated using two-tailed paired t-tests.
Molecular docking
To determine an initial binding pose for astemizole, we used the hERG channel structure with astemizole density, but no structure of astemizole was built in (PDB ID: 7CN1, [32]) and on the structure with astemizole density, and with astemizole built in afterward (PDB ID: 8ZYO) from the RCSB protein data bank. We then used Autodock Tools to dock astemizole to get the initial binding pose, selecting a grid box of 24 Å centred on residue Y652 in the vestibule of the hERG channel. Autodock Vina [61] was utilized to calculate the docking of astemizole within the box. Twenty independent docking runs were attempted for each ligand, and 15 poses were generated for each run. Outputs were clustered based on the root-mean square deviation (RMSD), and the initial binding pose was used to guide the AWH simulations. The docking was then extended to all 36 SCRAs on both structures (PDB entries: 7CN1 and 8ZYO) with a grid box of 20 Å centred on residue Y652 in the central cavity of the hERG channel, denoted as the central cavity site, and docking centered at F557 for the side pocket site.
System set-up for molecular dynamics simulations
The 7CN1 hERG channel structure (PDB entry: 7CN1, [32]) from residue T399-L666 was embedded in a 100 % POPC bilayer and solvated in 0.15 KCl and TIP3P water using CHARMM-GUI Membrane Builder. The protein, lipids and ions were simulated using CHARMM36m forcefield with TIP3P water model. A single ligand (SCRAs) was aligned with the binding pose of astemizole at the minima from the free energy landscape obtained from AWH using PyMOL to generate an initial configuration. For the first AWH simulation, the position of astemizole was randomly placed in the central cavity. Ligand parameters were generated using Ligand Reader and Modeler on CHARMM-GUI with the CGENFF force field. The system was then energy-minimized and equilibrated using the standard six-step CHARMM-GUI equilibration protocol [62]. This includes the following set-up: protein backbone was restrained at the force constant of 4000, 2000, 1000, 500, 200 and 50 kJ·mol−1 ·nm−2, protein side chains were restrained at the force constant of 2000, 1000, 500, 200, 50, and 0 kJ·mol−1 ·nm−2, non-H atoms of lipids were restrained at the force constant of 1000, 400, 400, 200, 40 and 0 kJ·mol−1 ·nm−2, and dihedral restraints were set at the force constant of 1000, 400, 200, 200, 100 and 0 kJ·mol−1 ·rad−2. Simulations were equilibrated with a 1 fs timestep for 125 ps for the first three steps, and then to a 2 fs timestep for 500 ps the next two, and 5 ns for the final step. The first two steps were conducted with the NVT ensemble, and the last four steps were conducted with the NPT ensemble. All equilibration runs were conducted at 310 K using a Berendsen thermostat [63]. In all NPT ensemble equilibration, the pressure was maintained at 1 bar using a Berendsen barostat [63]. All simulations were conducted using GROMACS-2023.4 [64]. All images from simulations were generated using PyMOL.
Accelerated weighted histogram simulations
The free energy landscape describing the path (z-axis distance) of the drug entering the binding site within the hERG channel was calculated using an accelerated weighted histogram (AWH) [65]. Pressure was maintained at 1 bar and temperature was maintained at 310 K. An independent AWH bias was applied for each equilibrated structure, simulating 4 walkers for 1250 ns per walker, sharing bias data and target distribution. Bias acted on the z-axis, defined using the center-of-mass of the drug and the Y652 residue in the vestibule of the hERG channel, aiming for a converged simulation, defined as a similar free energy landscape every 50 ns. Sampling interval was 1.0 nm above Y652 and 3.5 nm below Y652. The system initialized with an average free energy error of 20 kJ/mol, with the diffusion coefficient at 0.0002 nm2/ps at a force constant of 12800 kJ· mol−1 ·nm−2. A harmonic potential was applied to all Cα atoms at 5.0 kJ· mol−1 ·nm−2. Free energy landscapes from 1210, 1220, 1230, 1240 and 1250 ns were averaged and used to build a final free energy landscape. The binding pose was clustered using DBSCAN with an epsilon of 0.2 and a minimum sample of 10. From each cluster, 1000 structures located closest to the free energy minima were extracted and used for minimum distance calculation.
ORd Model
MATLAB simulations of the ventricular action potential in the epicardium of the human heart were performed using the ORd model as previously described [41, 42]. To simulate the effects of SCRAs, we altered the conductance of IKr, IKs, or both simultaneously in the MATLAB code, similarly to what was found experimentally for 10 µM of the SCRAs in APC experiments (by multiplying the IKr or IKs conductance by the factor decrease we observed in our experiments for Gmax).
